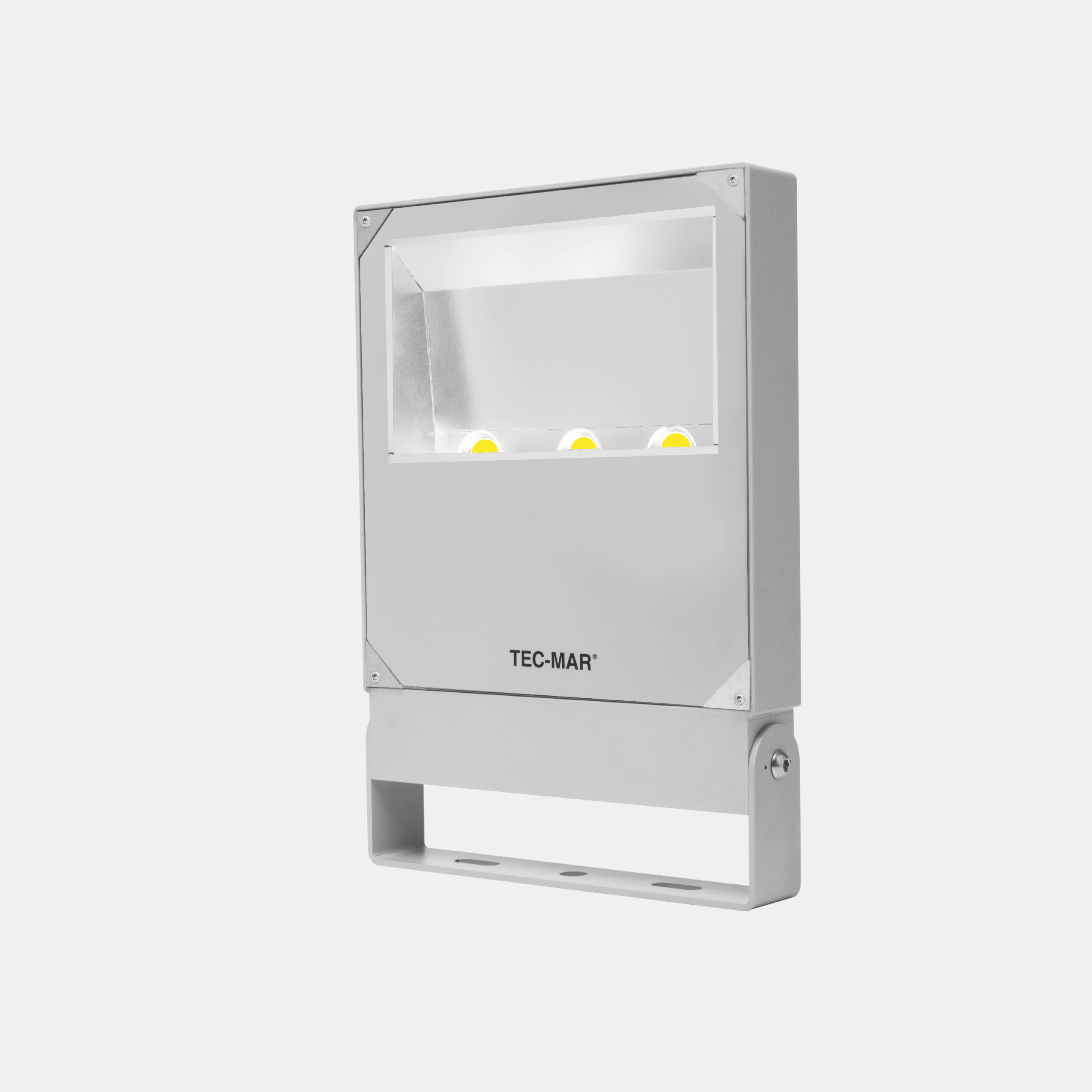

POLAR HE – Mod. AR

(45° asymmetric optics)

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in silver. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 45° optics.
Categories: Led, POLAR, POLAR HE - 7031, Floodlights, POLAR HE
Models: 288
Color: Silver
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7031AR2= ambra (CRI >80) 040GL= on/off
3= 3000°K (CRI >80)050GD= dali
4= 4000°K (CRI >80)060GA= acid-etched glass
5= 5000°K (CRI >80)070
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
130
150
175
190

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7031AR4040GL40-4000°K - CRI>80on/off691017329555425-5.6
7031AR4050GL50-4000°K - CRI>80on/off868117429555425-5.6
7031AR4060GL60-4000°K - CRI>80on/off1042117429555425-5.6
7031AR4070GL70-4000°K - CRI>80on/off1211717329555425-5.6
7031AR4080GL80-4000°K - CRI>80on/off1378817229555425-5.6
7031AR4090GL90-4000°K - CRI>80on/off1495416629555425-5.6
7031AR4100GL100-4000°K - CRI>80on/off1610316129555425-5.6
7031AR4120GL120-4000°K - CRI>80on/off1975916529555425-5.6
7031AR4130GL130-4000°K - CRI>80on/off2088816129555425-5.6
7031AR4150GL150-4000°K - CRI>80on/off2254815029555425-5.6
7031AR4175GL175-4000°K - CRI>80on/off2687715429555425-5.6
7031AR4190GL190-4000°K - CRI>80on/off2842415029555425-5.6
7031AR4040GD40-4000°K - CRI>80dali691017329555425-5.6
7031AR4050GD50-4000°K - CRI>80dali868117429555425-5.6
7031AR4060GD60-4000°K - CRI>80dali1042117429555425-5.6
7031AR4070GD70-4000°K - CRI>80dali1211717329555425-5.6
7031AR4080GD80-4000°K - CRI>80dali1378817229555425-5.6
7031AR4090GD90-4000°K - CRI>80dali1495416629555425-5.6
7031AR4100GD100-4000°K - CRI>80dali1610316129555425-5.6
7031AR4120GD120-4000°K - CRI>80dali1975916529555425-5.6
