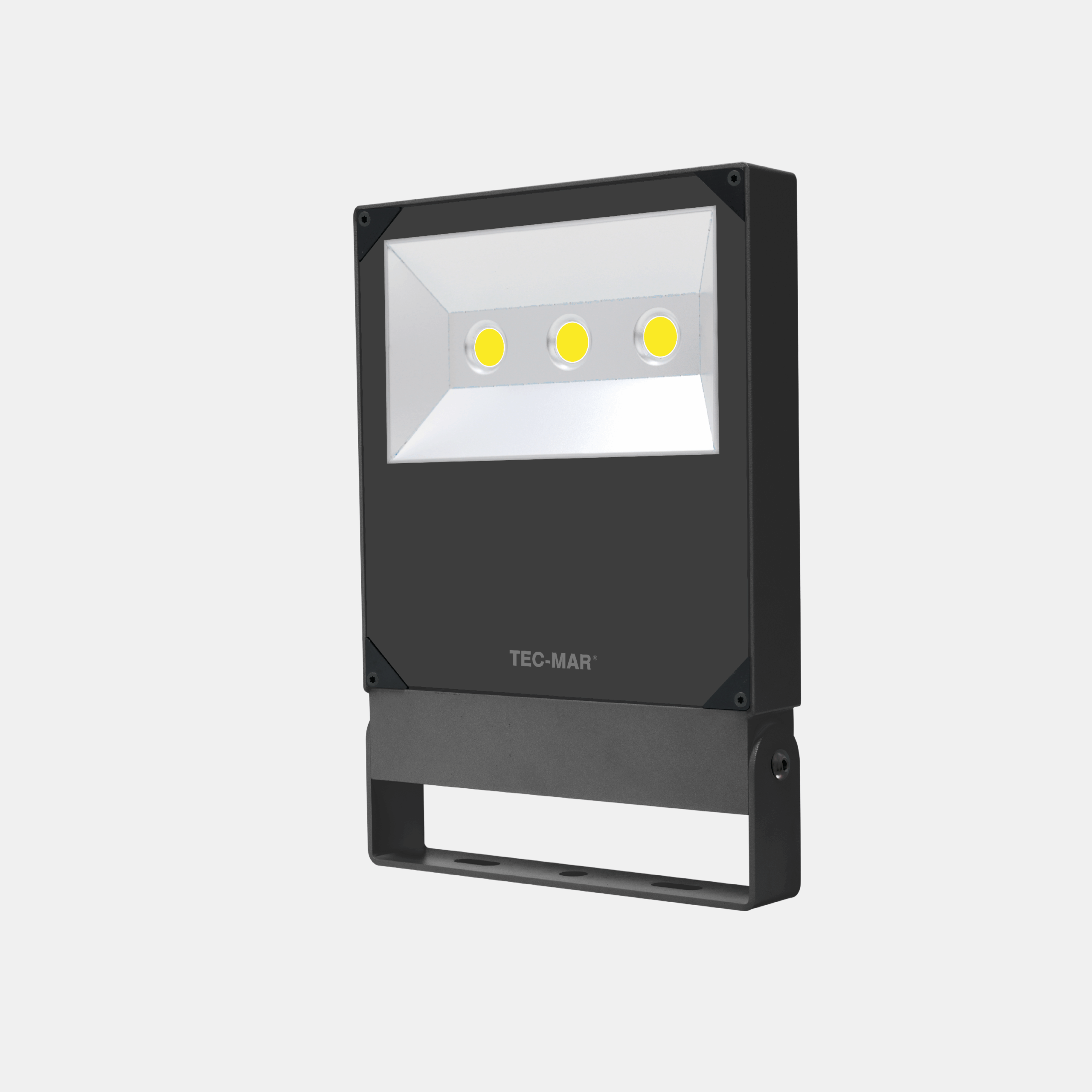

POLAR HE/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR HE - 7031, POLAR, Floodlights, art. 7031 Polar HE
Models: 288
Color: Anthracite
Catalogue abstract
Installation instructions

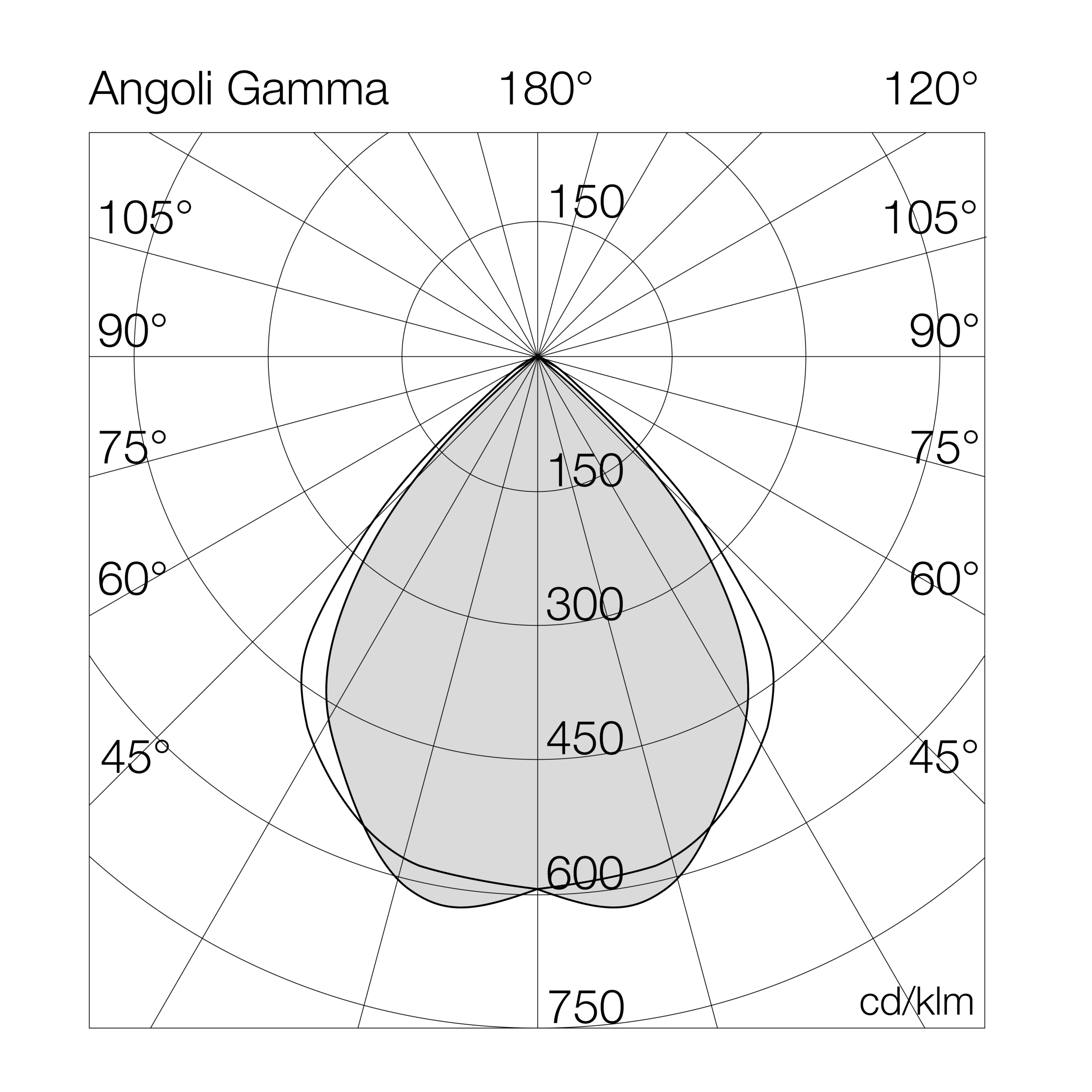

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7031PR2= ambra (CRI >80) 040EL= on/off
3= 3000°K (CRI >80)050LD= dali
4= 4000°K (CRI >80)060VA= acid-etched glass
5= 5000°K (CRI >80)070
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
130
150
175
190

Models

W tot.
°K - CRI
Options

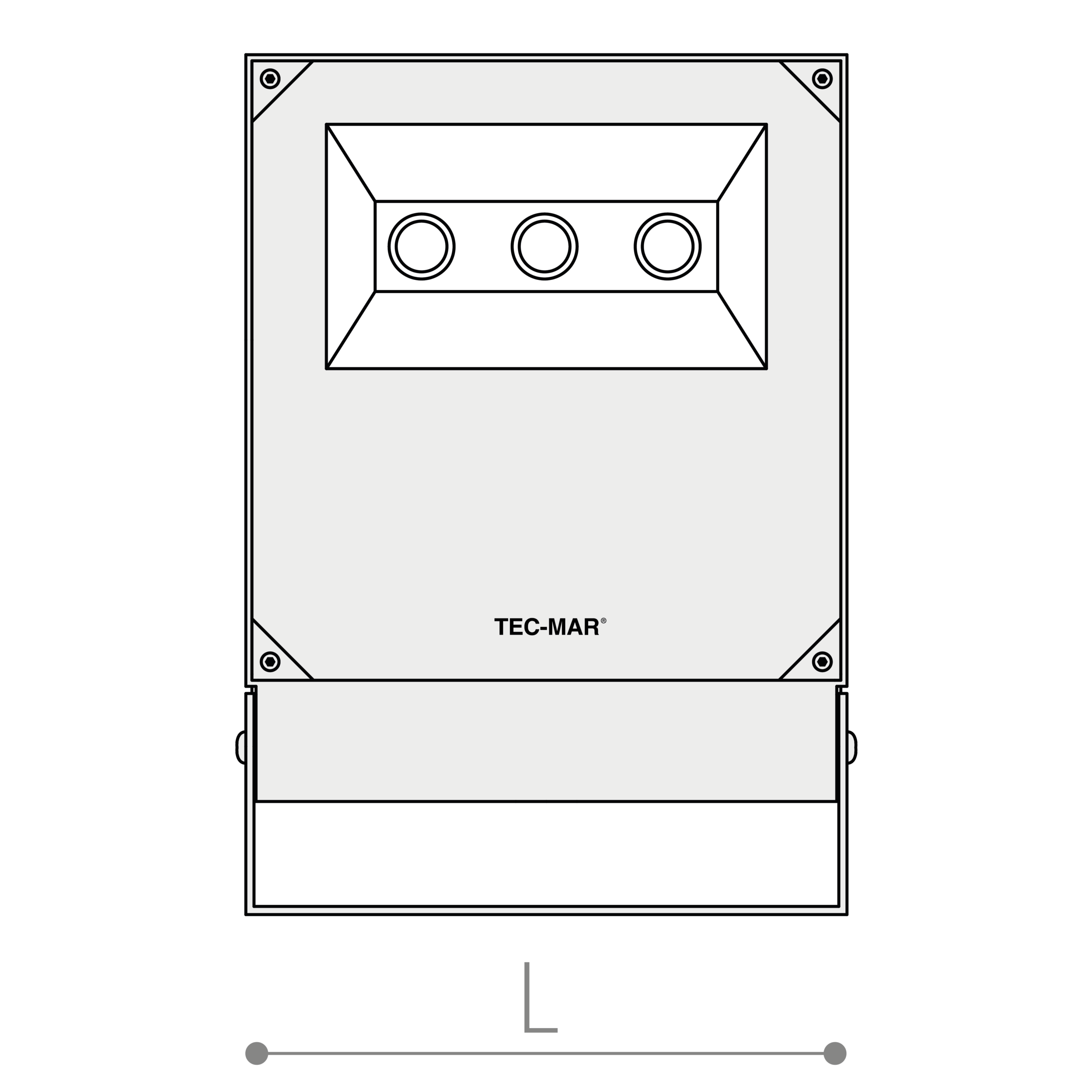

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7031PR4040EL40-4000°K - CRI>80on/off729918229555425-5.6
7031PR4050EL50-4000°K - CRI>80on/off917018329555425-5.6
7031PR4060EL60-4000°K - CRI>80on/off1100718329555425-5.6
7031PR4070EL70-4000°K - CRI>80on/off1280018329555425-5.6
7031PR4080EL80-4000°K - CRI>80on/off1456418229555425-5.6
7031PR4090EL90-4000°K - CRI>80on/off1579617629555425-5.6
7031PR4100EL100-4000°K - CRI>80on/off1701017029555425-5.6
7031PR4120EL120-4000°K - CRI>80on/off2087217429555425-5.6
7031PR4130EL130-4000°K - CRI>80on/off2206517029555425-5.6
7031PR4150EL150-4000°K - CRI>80on/off2381815929555425-5.6
7031PR4175EL175-4000°K - CRI>80on/off2839116229555425-5.6
7031PR4190EL190-4000°K - CRI>80on/off3002515829555425-5.6
7031PR4040LD40-4000°K - CRI>80dali729918229555425-5.6
7031PR4050LD50-4000°K - CRI>80dali917018329555425-5.6
7031PR4060LD60-4000°K - CRI>80dali1100718329555425-5.6
7031PR4070LD70-4000°K - CRI>80dali1280018329555425-5.6
7031PR4080LD80-4000°K - CRI>80dali1456418229555425-5.6
7031PR4090LD90-4000°K - CRI>80dali1579617629555425-5.6
7031PR4100LD100-4000°K - CRI>80dali1701017029555425-5.6
7031PR4120LD120-4000°K - CRI>80dali2087217429555425-5.6

Accessories
