POLAR HE – Mod. RR

(65° asymmetric optics)

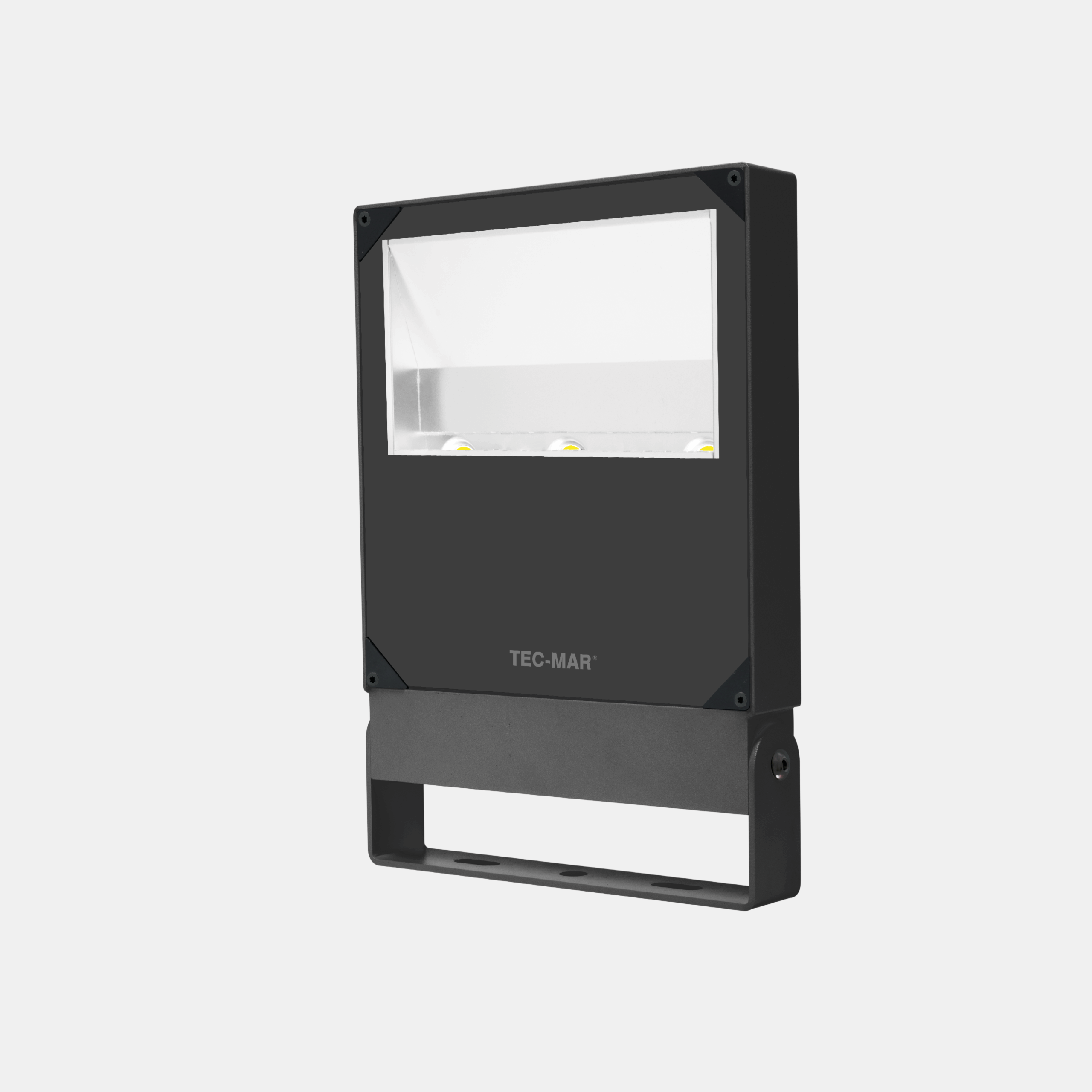

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.
Categories: Led, POLAR, POLAR HE - 7031, Floodlights, POLAR HE
Models: 288
Color: Anthracite
Catalogue abstract
Installation instructions

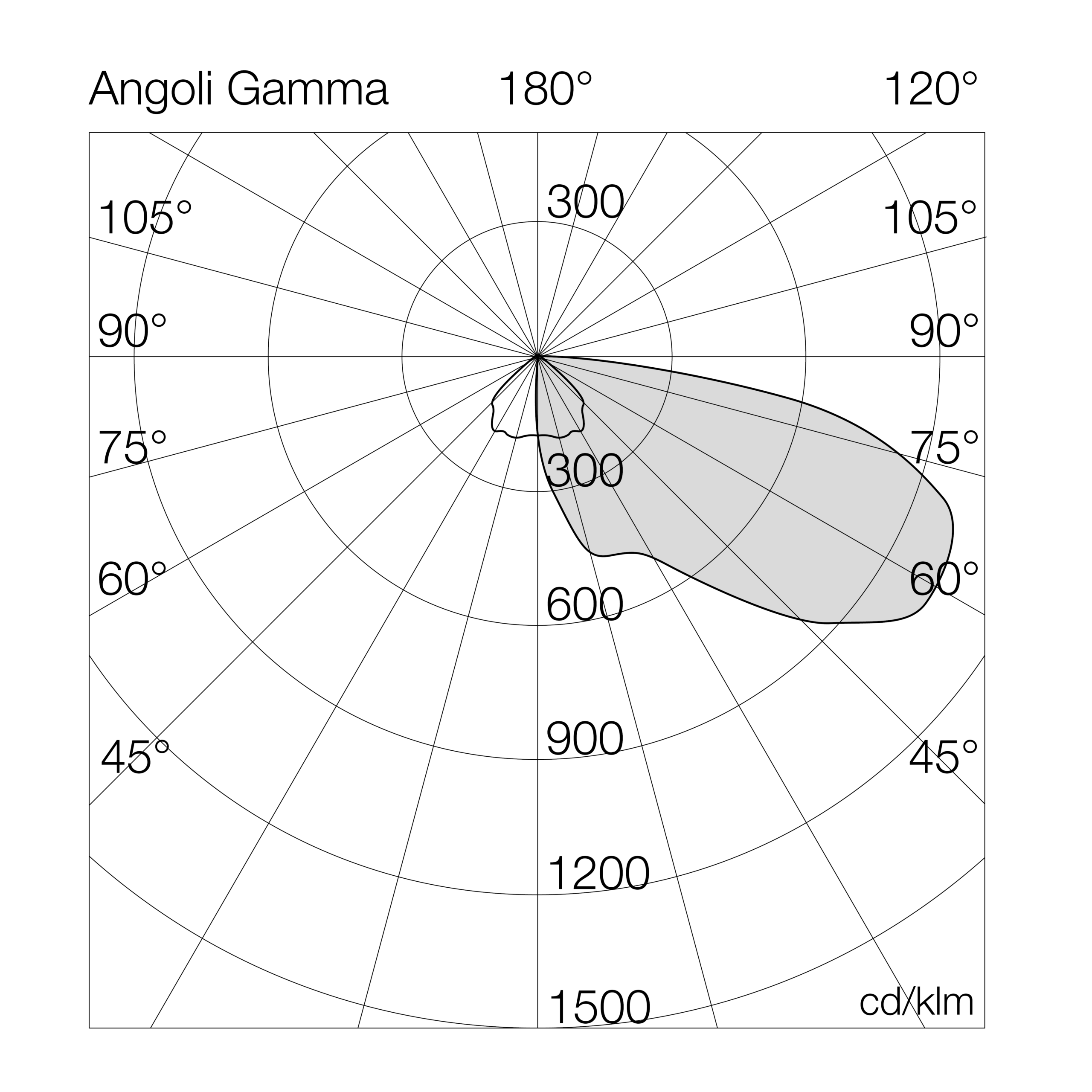

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7031RR2= ambra (CRI >80) 040EL= on/off
3= 3000°K (CRI >80)050LD= dali
4= 4000°K (CRI >80)060VA= acid-etched glass
5= 5000°K (CRI >80)070
6= 6500°K (CRI >80)080
7= 5700°K (CRI >80)090
8= 5700°K (CRI >90)100
S= 4000°K (CRI >70)120
130
150
175
190

Models

W tot.
°K - CRI
Options

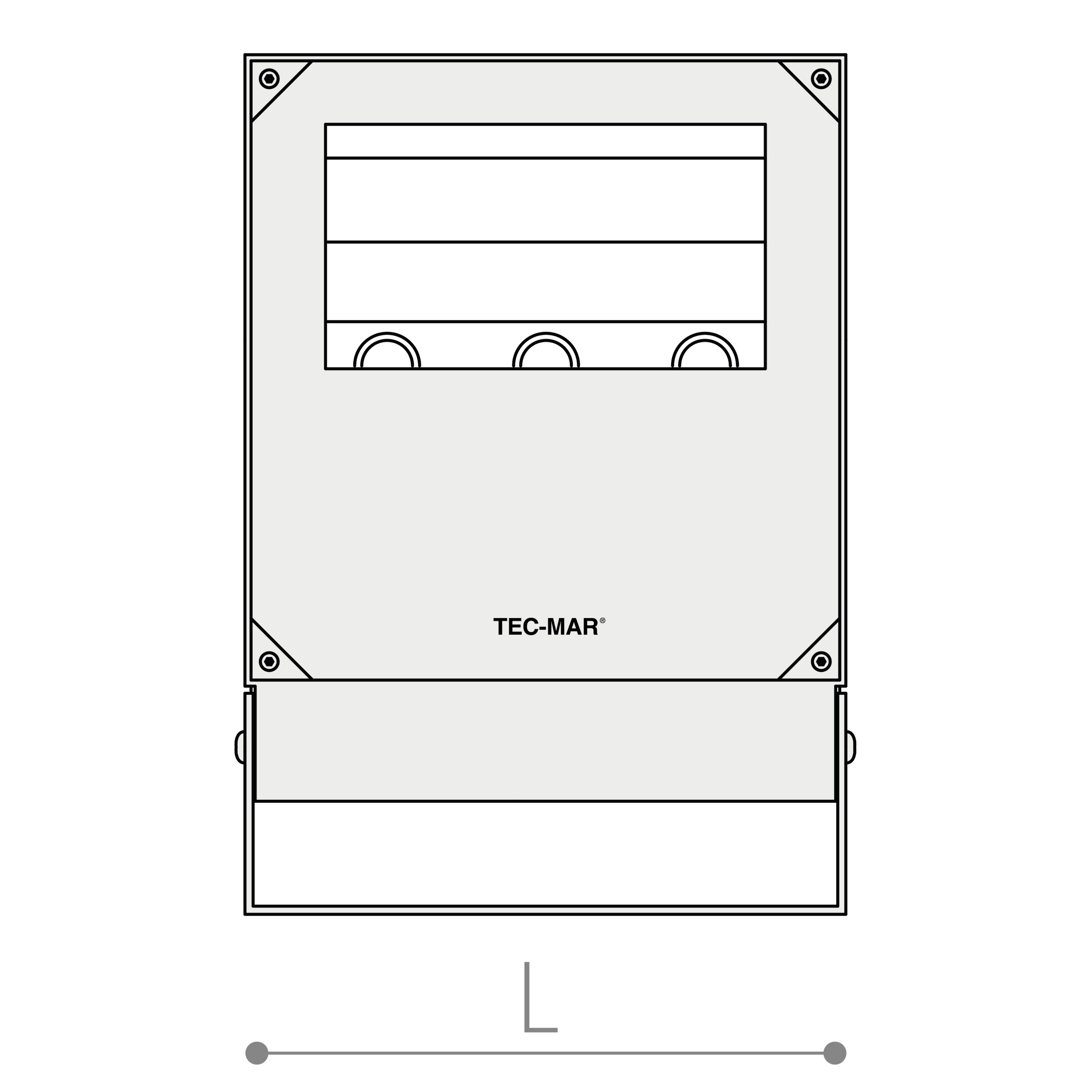

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7031RR4040EL40-4000°K - CRI>80on/off659216529555425-5.6
7031RR4050EL50-4000°K - CRI>80on/off828216629555425-5.6
7031RR4060EL60-4000°K - CRI>80on/off994116629555425-5.6
7031RR4070EL70-4000°K - CRI>80on/off1156016529555425-5.6
7031RR4080EL80-4000°K - CRI>80on/off1315416429555425-5.6
7031RR4090EL90-4000°K - CRI>80on/off1426615929555425-5.6
7031RR4100EL100-4000°K - CRI>80on/off1536315429555425-5.6
7031RR4120EL120-4000°K - CRI>80on/off1885115729555425-5.6
7031RR4130EL130-4000°K - CRI>80on/off1992815329555425-5.6
7031RR4150EL150-4000°K - CRI>80on/off2151214329555425-5.6
7031RR4175EL175-4000°K - CRI>80on/off2564114729555425-5.6
7031RR4190EL190-4000°K - CRI>80on/off2711714329555425-5.6
7031RR4040LD40-4000°K - CRI>80dali659216529555425-5.6
7031RR4050LD50-4000°K - CRI>80dali828216629555425-5.6
7031RR4060LD60-4000°K - CRI>80dali994116629555425-5.6
7031RR4070LD70-4000°K - CRI>80dali1156016529555425-5.6
7031RR4080LD80-4000°K - CRI>80dali1315416429555425-5.6
7031RR4090LD90-4000°K - CRI>80dali1426615929555425-5.6
7031RR4100LD100-4000°K - CRI>80dali1536315429555425-5.6
7031RR4120LD120-4000°K - CRI>80dali1885115729555425-5.6

Accessories
