art.-7032-polar-hp2-ar-antracite

POLAR HP2 – Mod. AR

(Ottica asimmetrica 45°)

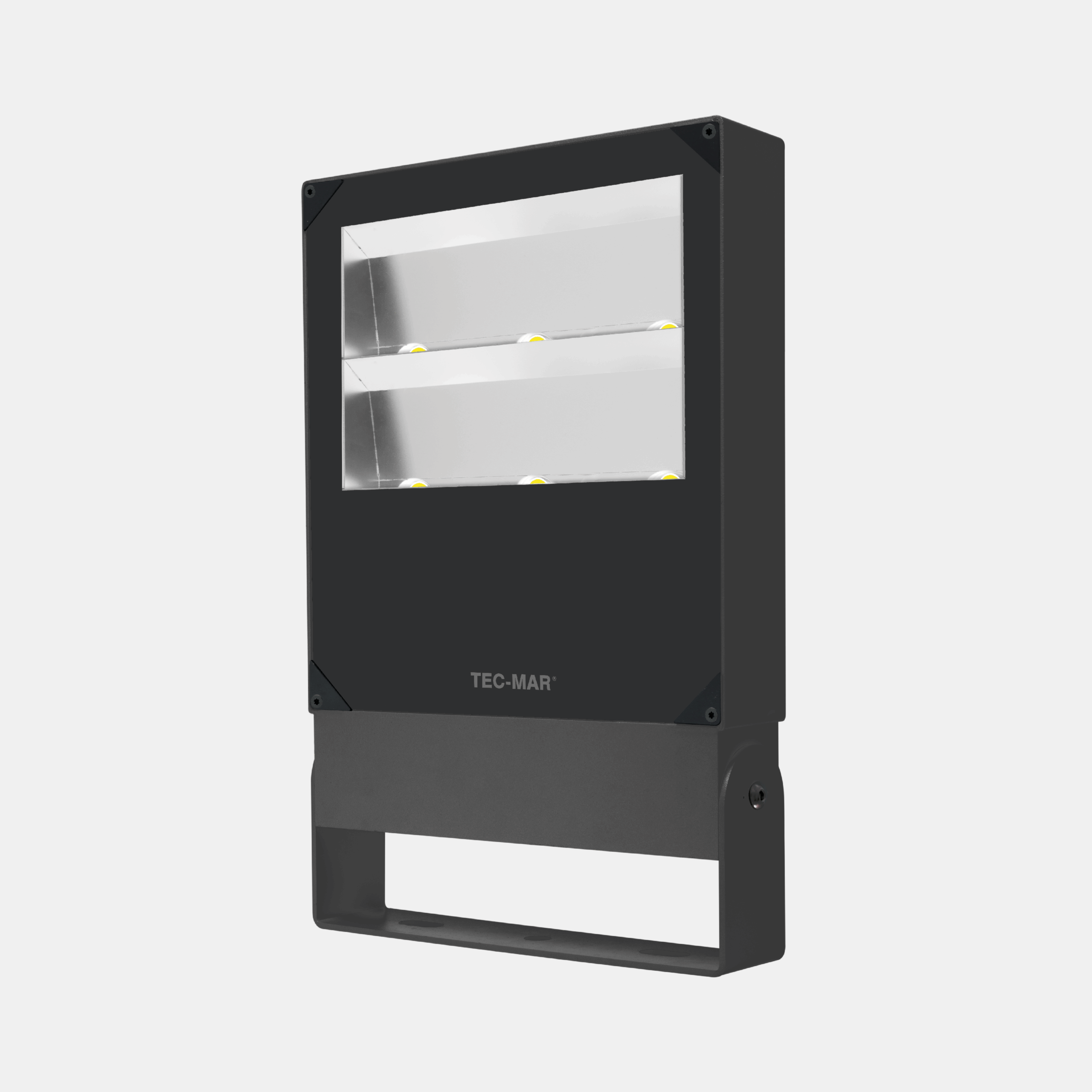

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 45° optics.
Categories: Led, POLAR, POLAR HP2 - 7032, Floodlights, POLAR HP2
Models: 270
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7032AR2= ambra (CRI >80) 120EL= on/off
3= 3000°K (CRI >80)130LD= dali
4= 4000°K (CRI >80)150VA= acid-etched glass
5= 5000°K (CRI >80)175
190
200
220
240
280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7032AR4120EL120-4000°K - CRI>80on/off2071217332570500-9.2
7032AR4130EL130-4000°K - CRI>80on/off2253817332570500-9.2
7032AR4150EL150-4000°K - CRI>80on/off2593117332570500-9.2
7032AR4175EL175-4000°K - CRI>80on/off2976217032570500-9.2
7032AR4190EL190-4000°K - CRI>80on/off3228517032570500-9.2
7032AR4200EL200-4000°K - CRI>80on/off3353416832570500-9.2
7032AR4220EL220-4000°K - CRI>80on/off3676216732570500-9.2
7032AR4240EL240-4000°K - CRI>80on/off3968816532570500-9.2
7032AR4280EL280-4000°K - CRI>80on/off4566716332570500-9.2
7032AR4300EL300-4000°K - CRI>80on/off4921816432570500-9.2
7032AR4120LD120-4000°K - CRI>80dali2071217332570500-9.2
7032AR4130LD130-4000°K - CRI>80dali2253817332570500-9.2
7032AR4150LD150-4000°K - CRI>80dali2593117332570500-9.2
7032AR4175LD175-4000°K - CRI>80dali2976217032570500-9.2
7032AR4190LD190-4000°K - CRI>80dali3228517032570500-9.2
7032AR4200LD200-4000°K - CRI>80dali3353416832570500-9.2
7032AR4220LD220-4000°K - CRI>80dali3676216732570500-9.2
7032AR4240LD240-4000°K - CRI>80dali3968816532570500-9.2
7032AR4280LD280-4000°K - CRI>80dali4566716332570500-9.2
7032AR4300LD300-4000°K - CRI>80dali4921816432570500-9.2

Accessories
