art.-7032-polar-hp2-pr-antracite

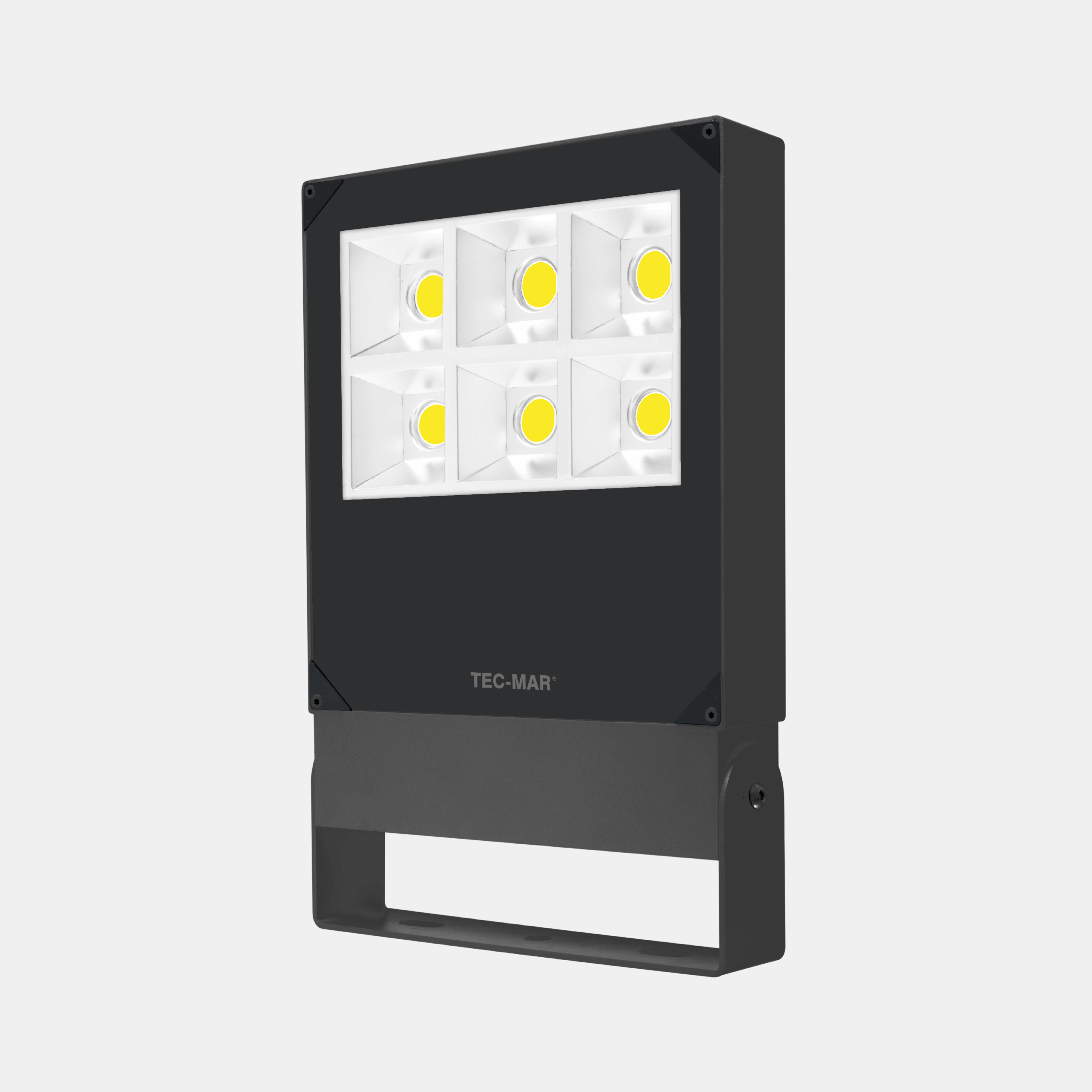

POLAR HP2/PR

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, anthracite color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR HP2 - 7032, POLAR, Floodlights, art. 7032 Polar HP2
Models: 270
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7032PR2= ambra (CRI >80) 120EL= on/off
3= 3000°K (CRI >80)130LD= dali
4= 4000°K (CRI >80)150VA= acid-etched glass
5= 5000°K (CRI >80)175
190
200
220
240
280
300

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7032PR4120EL120-4000°K - CRI>80on/off2187818232570500-9.2
7032PR4130EL130-4000°K - CRI>80on/off2380718332570500-9.2
7032PR4150EL150-4000°K - CRI>80on/off2739218332570500-9.2
7032PR4175EL175-4000°K - CRI>80on/off3143818032570500-9.2
7032PR4190EL190-4000°K - CRI>80on/off3410417932570500-9.2
7032PR4200EL200-4000°K - CRI>80on/off3542317732570500-9.2
7032PR4220EL220-4000°K - CRI>80on/off3883317732570500-9.2
7032PR4240EL240-4000°K - CRI>80on/off4192417532570500-9.2
7032PR4280EL280-4000°K - CRI>80on/off4823917232570500-9.2
7032PR4300EL300-4000°K - CRI>80on/off5199017332570500-9.2
7032PR4120LD120-4000°K - CRI>80dali2187818232570500-9.2
7032PR4130LD130-4000°K - CRI>80dali2380718332570500-9.2
7032PR4150LD150-4000°K - CRI>80dali2739218332570500-9.2
7032PR4175LD175-4000°K - CRI>80dali3143818032570500-9.2
7032PR4190LD190-4000°K - CRI>80dali3410417932570500-9.2
7032PR4200LD200-4000°K - CRI>80dali3542317732570500-9.2
7032PR4220LD220-4000°K - CRI>80dali3883317732570500-9.2
7032PR4240LD240-4000°K - CRI>80dali4192417532570500-9.2
7032PR4280LD280-4000°K - CRI>80dali4823917232570500-9.2
7032PR4300LD300-4000°K - CRI>80dali5199017332570500-9.2

Accessories
