art.-7032-polar-hp2-rr-antracite

POLAR HP2 – Mod. RR

(Ottica asimmetrica 65°)

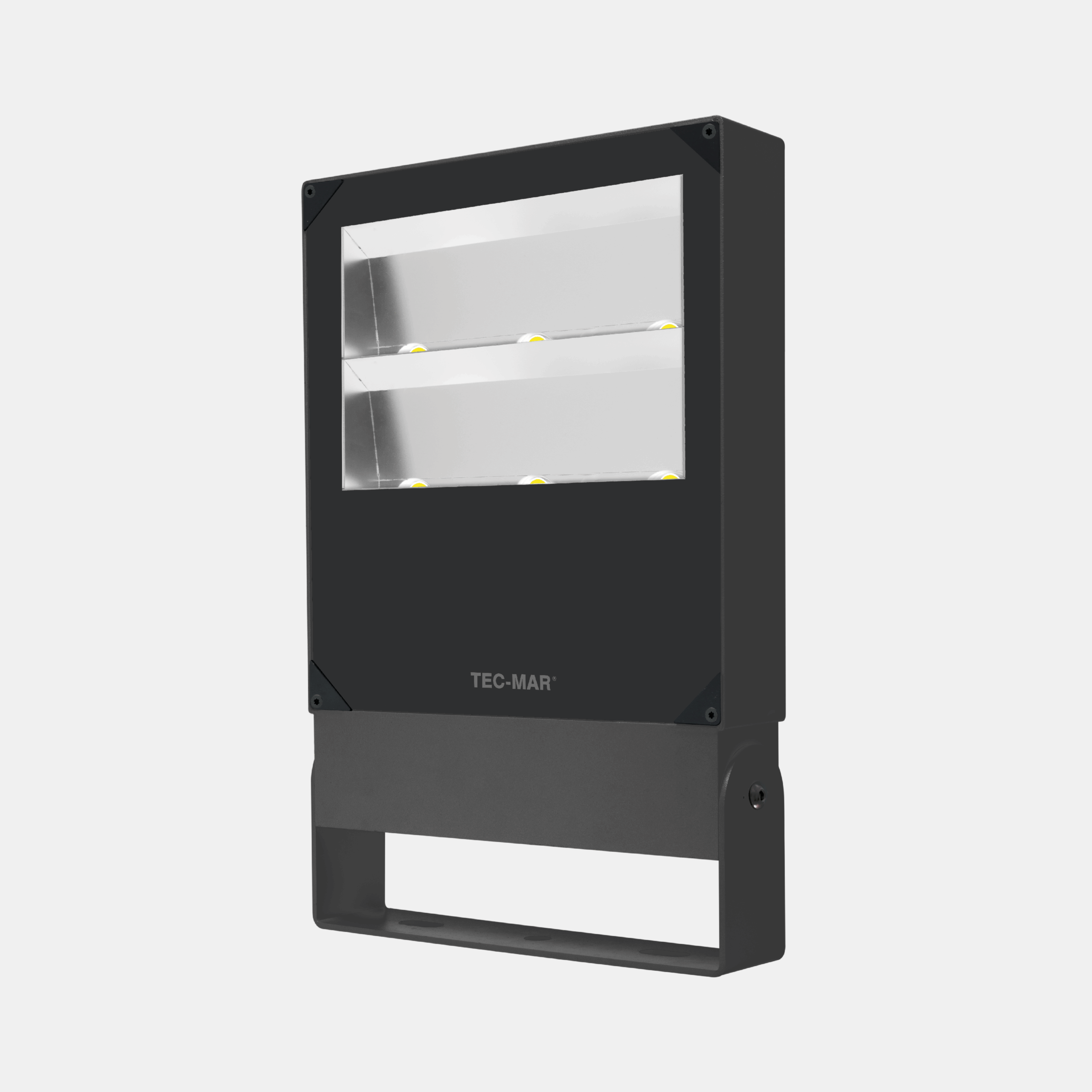

Led floodlight for indoor and outdoor use. Suitable for ground, wall, pole or ceiling installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder in anthracite. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Available with asymmetrical 65° optics.
Categories: Led, POLAR, POLAR HP2 - 7032, Floodlights, POLAR HP2
Models: 270
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7032RR2= ambra (CRI >80) 120EL= on/off
3= 3000°K (CRI >80)130LD= dali
4= 4000°K (CRI >80)150VA= acid-etched glass
5= 5000°K (CRI >80)175
190
200
220
240
280
300

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7032RR4120EL120-4000°K - CRI>80on/off1976016532570500-9.2
7032RR4130EL130-4000°K - CRI>80on/off2150216532570500-9.2
7032RR4150EL150-4000°K - CRI>80on/off2473916532570500-9.2
7032RR4175EL175-4000°K - CRI>80on/off2839316232570500-9.2
7032RR4190EL190-4000°K - CRI>80on/off3080116232570500-9.2
7032RR4200EL200-4000°K - CRI>80on/off3199216032570500-9.2
7032RR4220EL220-4000°K - CRI>80on/off3507215932570500-9.2
7032RR4240EL240-4000°K - CRI>80on/off3786315832570500-9.2
7032RR4280EL280-4000°K - CRI>80on/off4356715632570500-9.2
7032RR4300EL300-4000°K - CRI>80on/off4695515732570500-9.2
7032RR4120LD120-4000°K - CRI>80dali1976016532570500-9.2
7032RR4130LD130-4000°K - CRI>80dali2150216532570500-9.2
7032RR4150LD150-4000°K - CRI>80dali2473916532570500-9.2
7032RR4175LD175-4000°K - CRI>80dali2839316232570500-9.2
7032RR4190LD190-4000°K - CRI>80dali3080116232570500-9.2
7032RR4200LD200-4000°K - CRI>80dali3199216032570500-9.2
7032RR4220LD220-4000°K - CRI>80dali3507215932570500-9.2
7032RR4240LD240-4000°K - CRI>80dali3786315832570500-9.2
7032RR4280LD280-4000°K - CRI>80dali4356715632570500-9.2
7032RR4300LD300-4000°K - CRI>80dali4695515732570500-9.2

Accessories
