art.-7032-polar-hp2-rr-silver

POLAR HP2/RR

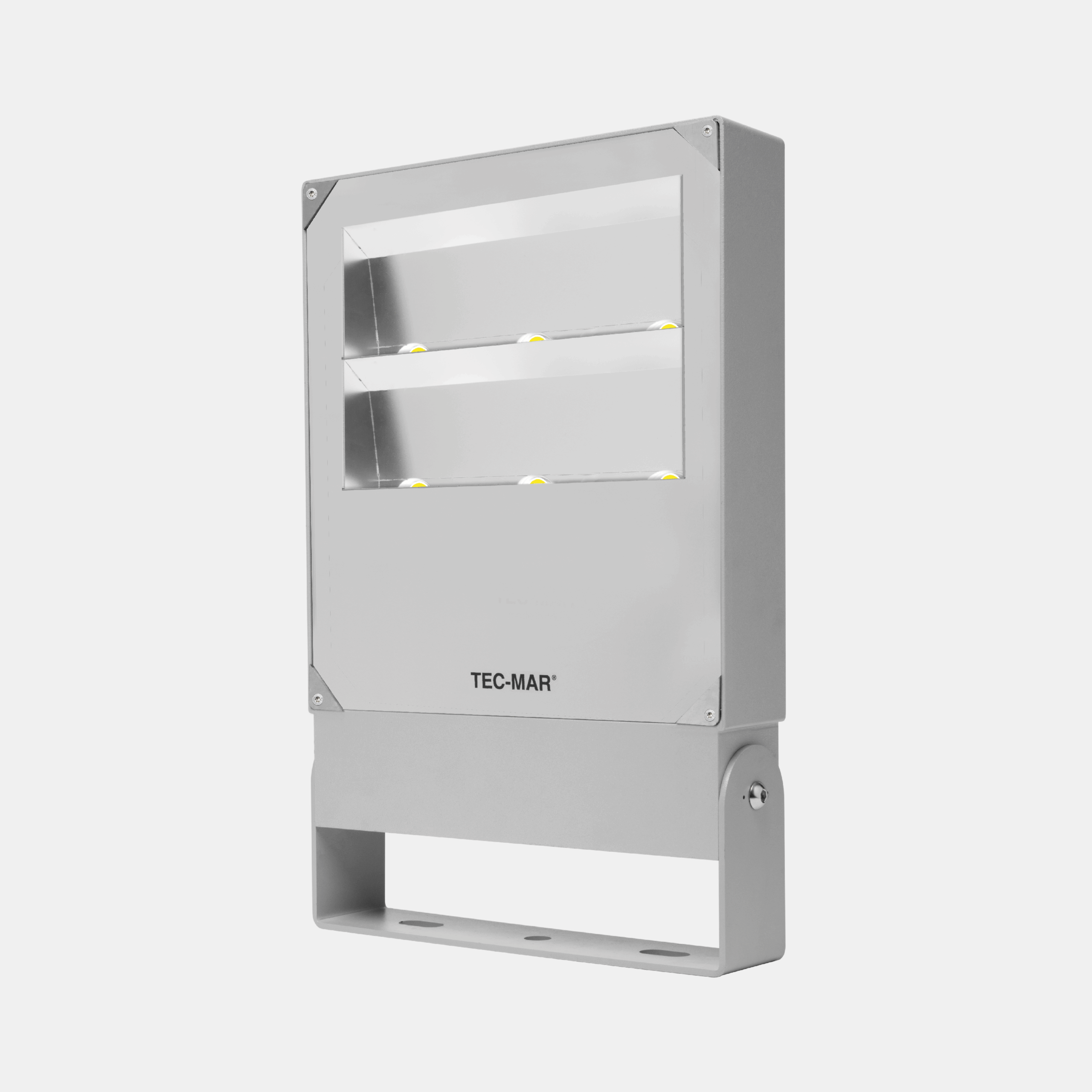

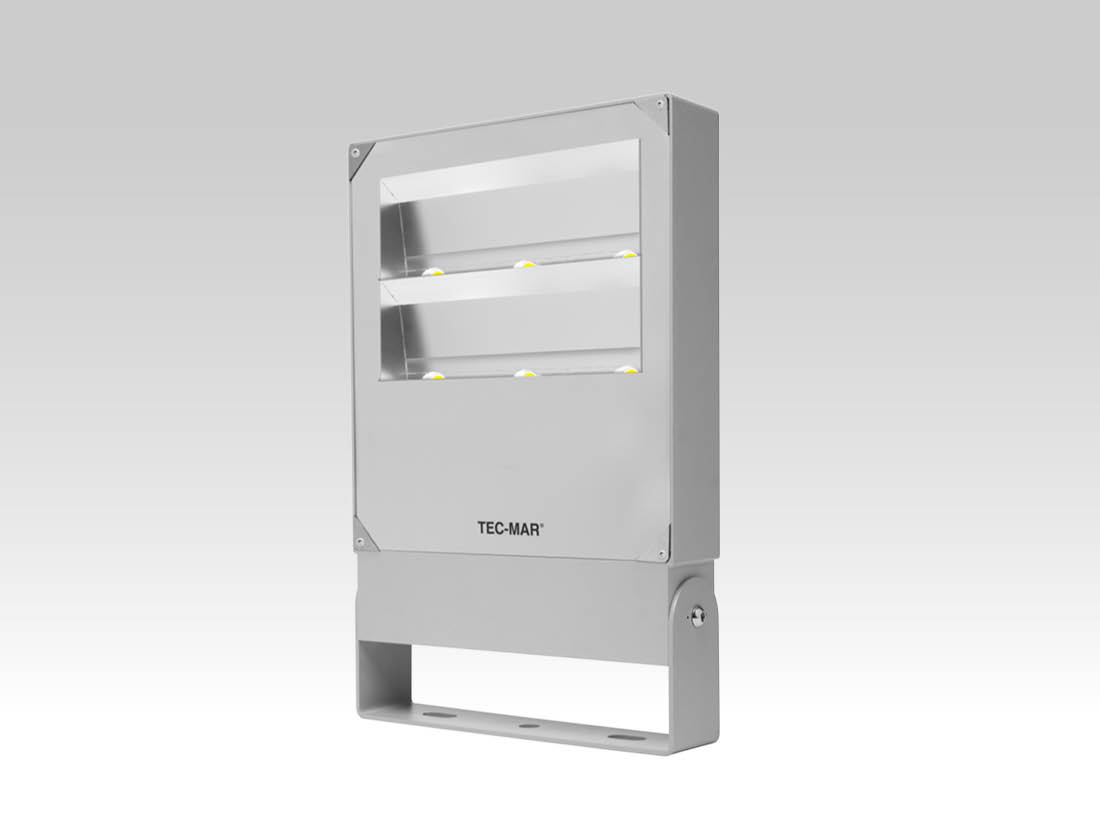

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color. 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR HP2 - 7032, POLAR, Floodlights, art. 7032 Polar HP2
Models: 270
Color: Silver
Catalogue abstract
Installation instructions

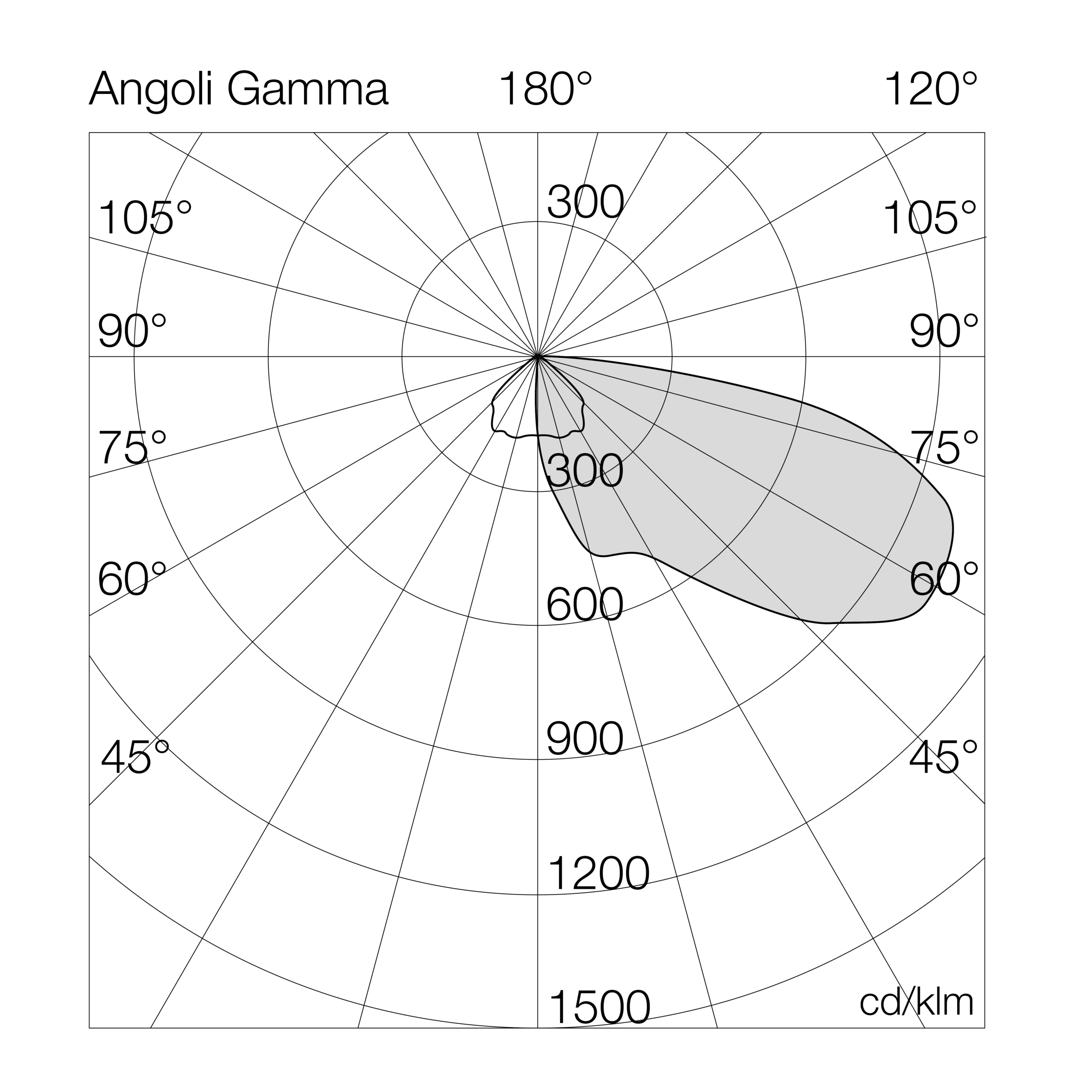

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7032RR2= ambra (CRI >80) 120GL= on/off
3= 3000°K (CRI >80)130GD= dali
4= 4000°K (CRI >80)150GA= acid-etched glass
5= 5000°K (CRI >80)175
190
200
220
240
280
300

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7032RR4120GL120-4000°K - CRI>80on/off1976016532570500-9.2
7032RR4130GL130-4000°K - CRI>80on/off2150216532570500-9.2
7032RR4150GL150-4000°K - CRI>80on/off2473916532570500-9.2
7032RR4175GL175-4000°K - CRI>80on/off2839316232570500-9.2
7032RR4190GL190-4000°K - CRI>80on/off3080116232570500-9.2
7032RR4200GL200-4000°K - CRI>80on/off3199216032570500-9.2
7032RR4220GL220-4000°K - CRI>80on/off3507215932570500-9.2
7032RR4240GL240-4000°K - CRI>80on/off3786315832570500-9.2
7032RR4280GL280-4000°K - CRI>80on/off4356715632570500-9.2
7032RR4300GL300-4000°K - CRI>80on/off4695515732570500-9.2
7032RR4120GD120-4000°K - CRI>80dali1976016532570500-9.2
7032RR4130GD130-4000°K - CRI>80dali2150216532570500-9.2
7032RR4150GD150-4000°K - CRI>80dali2473916532570500-9.2
7032RR4175GD175-4000°K - CRI>80dali2839316232570500-9.2
7032RR4190GD190-4000°K - CRI>80dali3080116232570500-9.2
7032RR4200GD200-4000°K - CRI>80dali3199216032570500-9.2
7032RR4220GD220-4000°K - CRI>80dali3507215932570500-9.2
7032RR4240GD240-4000°K - CRI>80dali3786315832570500-9.2
7032RR4280GD280-4000°K - CRI>80dali4356715632570500-9.2
7032RR4300GD300-4000°K - CRI>80dali4695515732570500-9.2

Accessories
