POLAR 1M/A5

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR 1M - 7036, POLAR, Floodlights, art. 7036 Polar 1M
Models: 45
Color: Silver
Catalogue abstract
Installation instructions

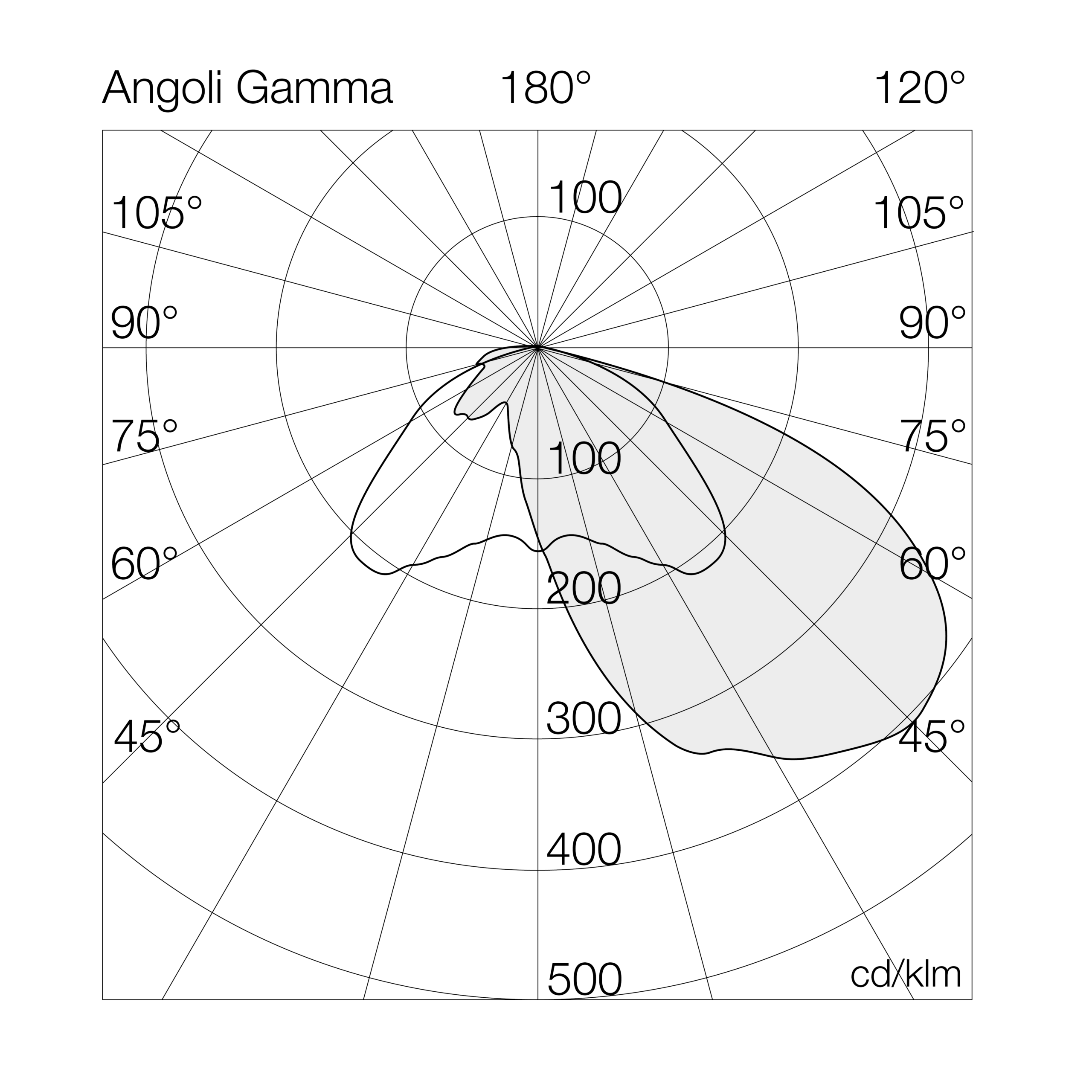

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7036A522= ambra (CRI >80) 30GL= on/off
30= 3000°K (CRI >80)40GD= dali
40= 4000°K (CRI >80)50GA= acid-etched glass
50= 5000°K (CRI >80)
65= 6500°K (CRI >80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7036A54030GL30-4000°K - CRI>80on/off415113815545325-2.6
7036A54040GL40-4000°K - CRI>80on/off497512415545325-2.6
7036A54050GL50-4000°K - CRI>80on/off519310415545325-2.6
7036A54030GD30-4000°K - CRI>80dali415113815545325-2.6
7036A54040GD40-4000°K - CRI>80dali497512415545325-2.6
7036A54050GD50-4000°K - CRI>80dali519310415545325-2.6
7036A54030GA30-4000°K - CRI>80acid-etched glass415113815545325-2.6
7036A54040GA40-4000°K - CRI>80acid-etched glass497512415545325-2.6
7036A54050GA50-4000°K - CRI>80acid-etched glass519310415545325-2.6
7036A53030GL30-3000°K - CRI>80on/off389213015545325-2.6
7036A53040GL40-3000°K - CRI>80on/off466411715545325-2.6
7036A53050GL50-3000°K - CRI>80on/off48689715545325-2.6
7036A53030GD30-3000°K - CRI>80dali389213015545325-2.6
7036A53040GD40-3000°K - CRI>80dali466411715545325-2.6
7036A53050GD50-3000°K - CRI>80dali48689715545325-2.6
7036A53030GA30-3000°K - CRI>80acid-etched glass389213015545325-2.6
7036A53040GA40-3000°K - CRI>80acid-etched glass466411715545325-2.6
7036A53050GA50-3000°K - CRI>80acid-etched glass48689715545325-2.6
7036A52230GL30-Ambra - CRI>80on/off351611715545325-2.6
7036A52240GL40-Ambra - CRI>80on/off421410515545325-2.6

Accessories
