POLAR 1M/A6

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR 1M - 7036, POLAR, Floodlights, art. 7036 Polar 1M

Models: 45

Color: Silver

Catalogue abstract

Installation instructions

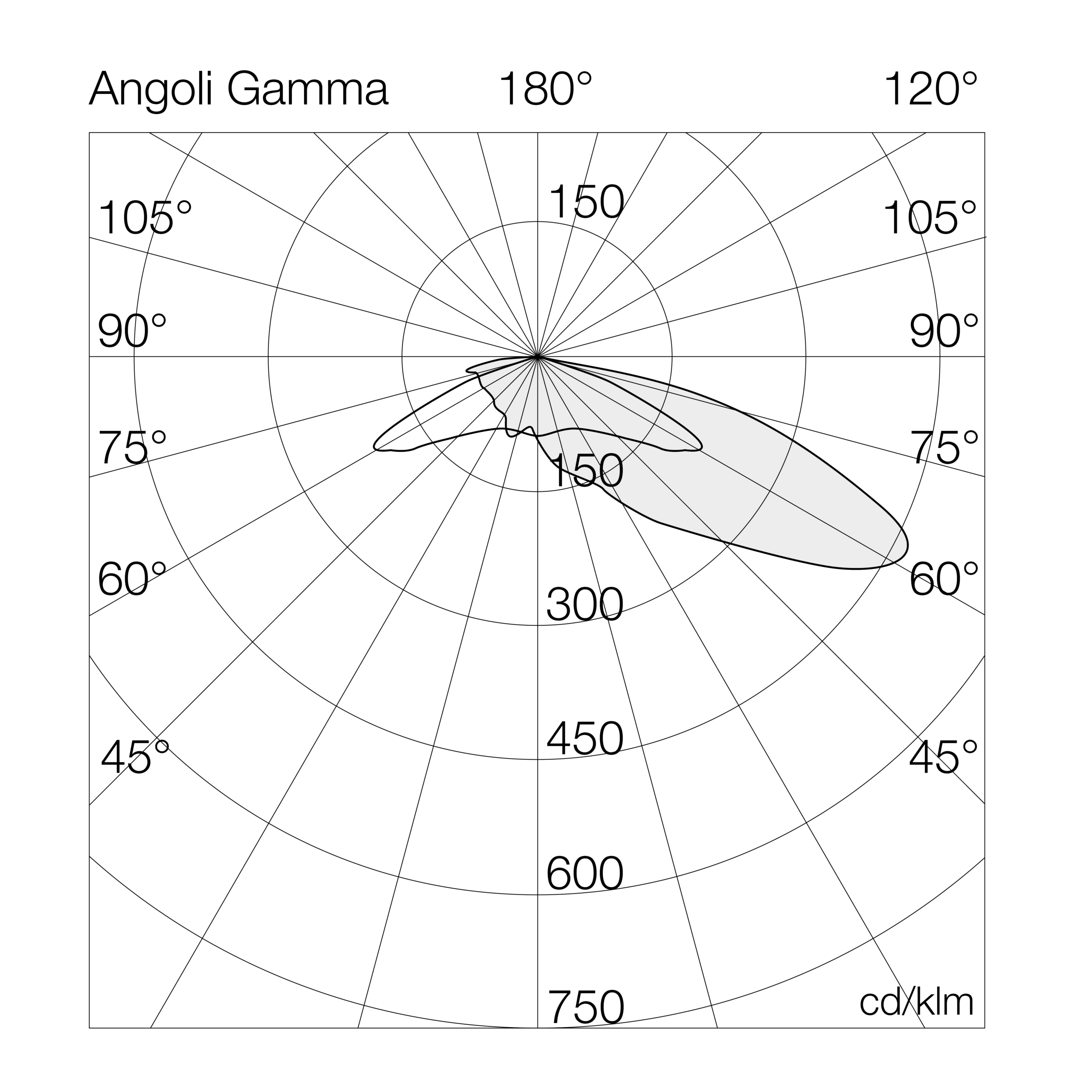

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7036	A6	22	= ambra (CRI >80)	30	GL	= on/off
		30	= 3000°K (CRI >80)	40	GD	= dali
		40	= 4000°K (CRI >80)	50	GA	= acid-etched glass
		50	= 5000°K (CRI >80)
		65	= 6500°K (CRI >80)

Models

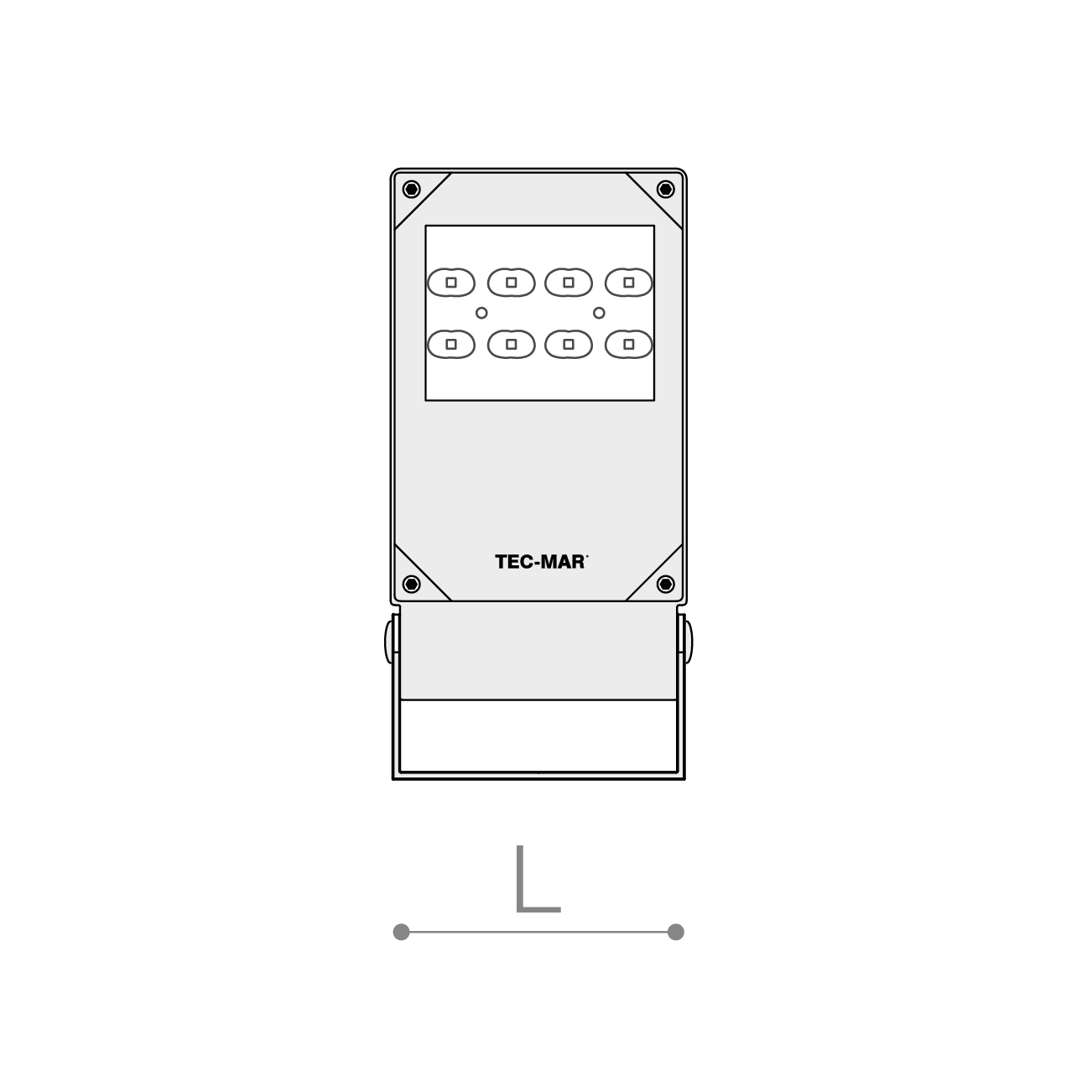

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7036A64030GL	30	-	4000°K - CRI>80	on/off	4104	137	155	45	325	-	2.6
7036A64040GL	40	-	4000°K - CRI>80	on/off	4919	123	155	45	325	-	2.6
7036A64050GL	50	-	4000°K - CRI>80	on/off	5135	103	155	45	325	-	2.6
7036A64030GD	30	-	4000°K - CRI>80	dali	4104	137	155	45	325	-	2.6
7036A64040GD	40	-	4000°K - CRI>80	dali	4919	123	155	45	325	-	2.6
7036A64050GD	50	-	4000°K - CRI>80	dali	5135	103	155	45	325	-	2.6
7036A64030GA	30	-	4000°K - CRI>80	acid-etched glass	4104	137	155	45	325	-	2.6
7036A64040GA	40	-	4000°K - CRI>80	acid-etched glass	4919	123	155	45	325	-	2.6
7036A64050GA	50	-	4000°K - CRI>80	acid-etched glass	5135	103	155	45	325	-	2.6
7036A63030GL	30	-	3000°K - CRI>80	on/off	3848	128	155	45	325	-	2.6
7036A63040GL	40	-	3000°K - CRI>80	on/off	4612	115	155	45	325	-	2.6
7036A63050GL	50	-	3000°K - CRI>80	on/off	4814	96	155	45	325	-	2.6
7036A63030GD	30	-	3000°K - CRI>80	dali	3848	128	155	45	325	-	2.6
7036A63040GD	40	-	3000°K - CRI>80	dali	4612	115	155	45	325	-	2.6
7036A63050GD	50	-	3000°K - CRI>80	dali	4814	96	155	45	325	-	2.6
7036A63030GA	30	-	3000°K - CRI>80	acid-etched glass	3848	128	155	45	325	-	2.6
7036A63040GA	40	-	3000°K - CRI>80	acid-etched glass	4612	115	155	45	325	-	2.6
7036A63050GA	50	-	3000°K - CRI>80	acid-etched glass	4814	96	155	45	325	-	2.6
7036A62230GL	30	-	Ambra - CRI>80	on/off	3476	116	155	45	325	-	2.6
7036A62240GL	40	-	Ambra - CRI>80	on/off	4166	104	155	45	325	-	2.6
