POLAR 1M/C3

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR 1M - 7036, POLAR, Floodlights, art. 7036 Polar 1M

Models: 45

Color: Silver

Catalogue abstract

Installation instructions

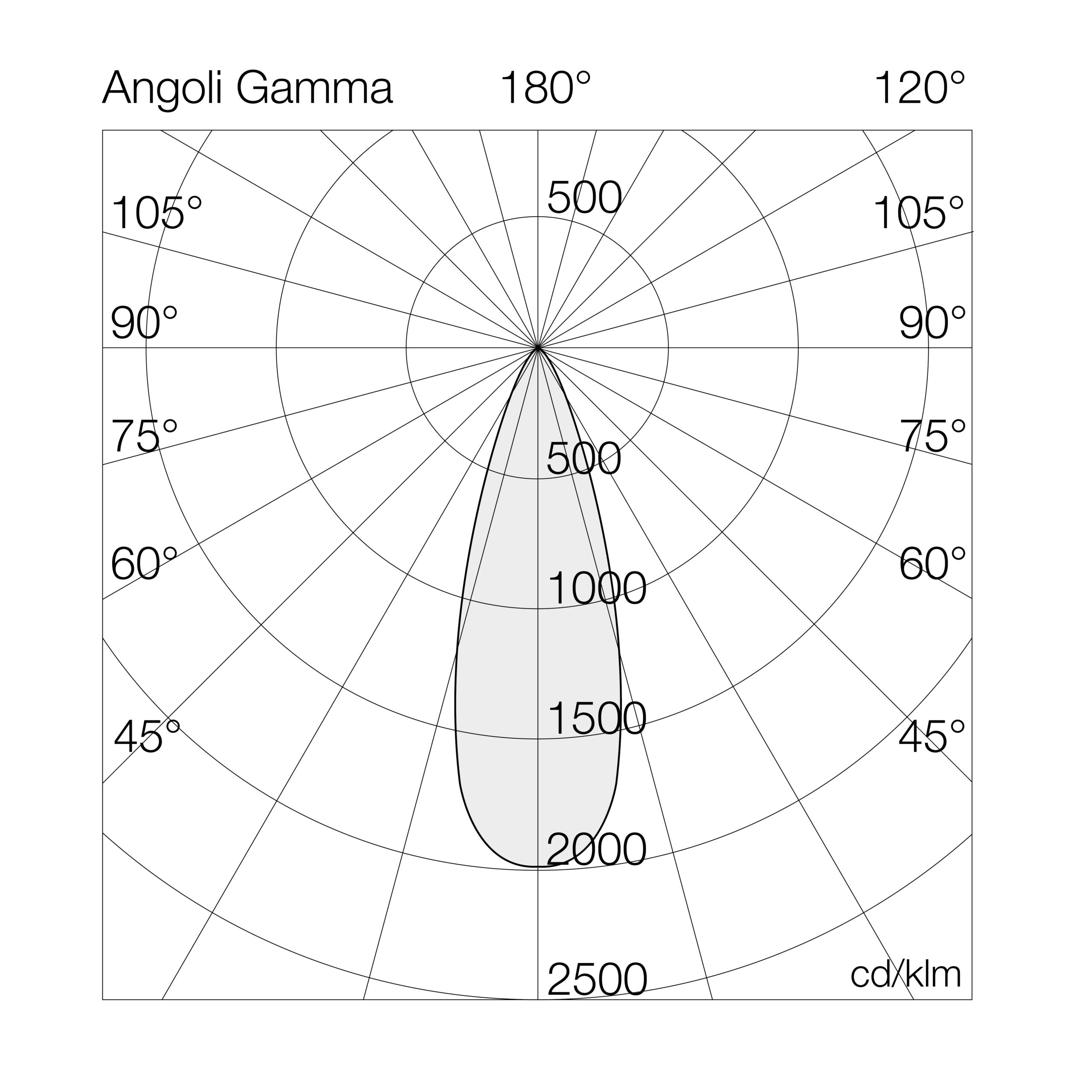

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7036	C3	22	= ambra (CRI >80)	30	GL	= on/off
		30	= 3000°K (CRI >80)	40	GD	= dali
		40	= 4000°K (CRI >80)	50	GA	= acid-etched glass
		50	= 5000°K (CRI >80)
		65	= 6500°K (CRI >80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7036C34030GL	30	-	4000°K - CRI>80	on/off	4221	141	155	45	325	-	2.6
7036C34040GL	40	-	4000°K - CRI>80	on/off	5059	126	155	45	325	-	2.6
7036C34050GL	50	-	4000°K - CRI>80	on/off	5281	106	155	45	325	-	2.6
7036C34030GD	30	-	4000°K - CRI>80	dali	4221	141	155	45	325	-	2.6
7036C34040GD	40	-	4000°K - CRI>80	dali	5059	126	155	45	325	-	2.6
7036C34050GD	50	-	4000°K - CRI>80	dali	5281	106	155	45	325	-	2.6
7036C34030GA	30	-	4000°K - CRI>80	acid-etched glass	4221	141	155	45	325	-	2.6
7036C34040GA	40	-	4000°K - CRI>80	acid-etched glass	5059	126	155	45	325	-	2.6
7036C34050GA	50	-	4000°K - CRI>80	acid-etched glass	5281	106	155	45	325	-	2.6
7036C33030GL	30	-	3000°K - CRI>80	on/off	3957	132	155	45	325	-	2.6
7036C33040GL	40	-	3000°K - CRI>80	on/off	4743	119	155	45	325	-	2.6
7036C33050GL	50	-	3000°K - CRI>80	on/off	4951	99	155	45	325	-	2.6
7036C33030GD	30	-	3000°K - CRI>80	dali	3957	132	155	45	325	-	2.6
7036C33040GD	40	-	3000°K - CRI>80	dali	4743	119	155	45	325	-	2.6
7036C33050GD	50	-	3000°K - CRI>80	dali	4951	99	155	45	325	-	2.6
7036C33030GA	30	-	3000°K - CRI>80	acid-etched glass	3957	132	155	45	325	-	2.6
7036C33040GA	40	-	3000°K - CRI>80	acid-etched glass	4743	119	155	45	325	-	2.6
7036C33050GA	50	-	3000°K - CRI>80	acid-etched glass	4951	99	155	45	325	-	2.6
7036C32230GL	30	-	Ambra - CRI>80	on/off	3575	119	155	45	325	-	2.6
7036C32240GL	40	-	Ambra - CRI>80	on/off	4285	107	155	45	325	-	2.6
