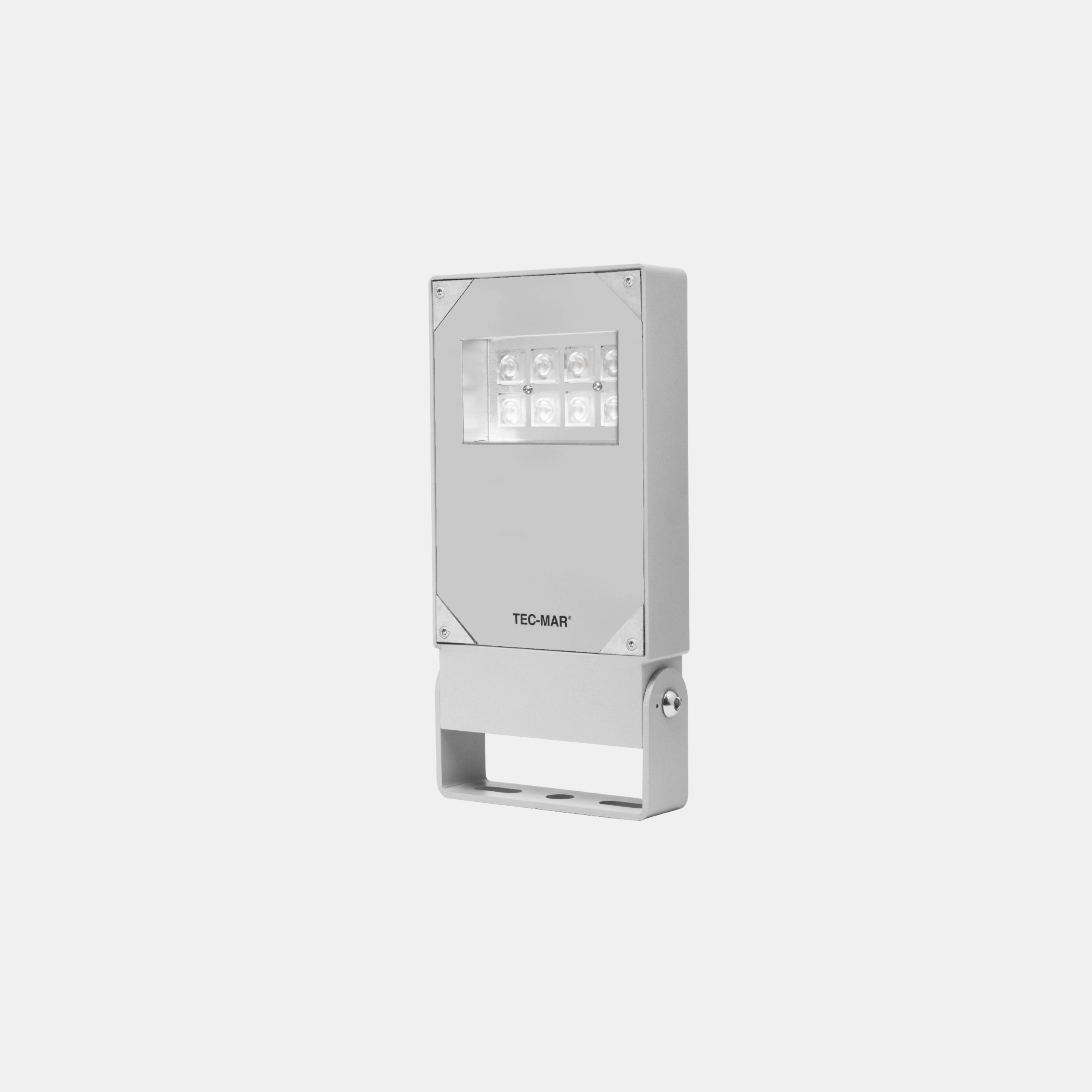

POLAR 1M/M6

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR, Floodlights, art. 7036 Polar 1M

Models: 45

Color: Silver

Catalogue abstract

Installation instructions

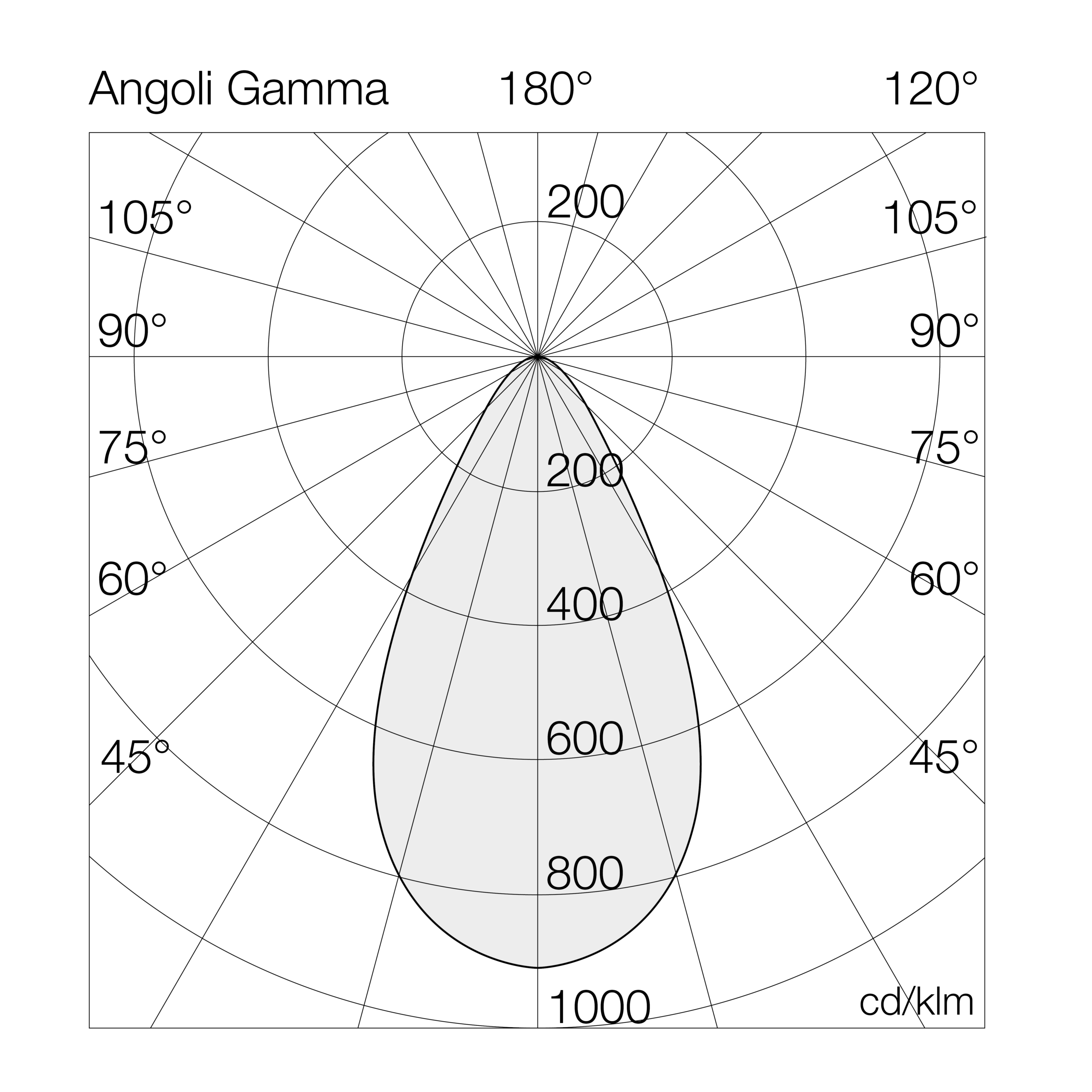

Photometric data

Legenda

Art.	°K (CRI)	°K (CRI)		W tot.	Options
7036	M6	22	= ambra (CRI >80)	30	GL	= on/off
		30	= 3000°K (CRI >80)	40	GD	= dali
		40	= 4000°K (CRI >80)	50	GA	= acid-etched glass
		50	= 5000°K (CRI >80)
		65	= 6500°K (CRI >80)

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
7036M64030GL	30	4000°K - CRI>80	on/off	4198	140	155	45	325	2.6
7036M64040GL	40	4000°K - CRI>80	on/off	5031	126	155	45	325	2.6
7036M64050GL	50	4000°K - CRI>80	on/off	5252	105	155	45	325	2.6
7036M64030GD	30	4000°K - CRI>80	dali	4198	140	155	45	325	2.6
7036M64040GD	40	4000°K - CRI>80	dali	5031	126	155	45	325	2.6
7036M64050GD	50	4000°K - CRI>80	dali	5252	105	155	45	325	2.6
7036M64030GA	30	4000°K - CRI>80	acid-etched glass	4198	140	155	45	325	2.6
7036M64040GA	40	4000°K - CRI>80	acid-etched glass	5031	126	155	45	325	2.6
7036M64050GA	50	4000°K - CRI>80	acid-etched glass	5252	105	155	45	325	2.6
7036M63030GL	30	3000°K - CRI>80	on/off	3936	131	155	45	325	2.6
7036M63040GL	40	3000°K - CRI>80	on/off	4717	118	155	45	325	2.6
7036M63050GL	50	3000°K - CRI>80	on/off	4924	98	155	45	325	2.6
7036M63030GD	30	3000°K - CRI>80	dali	3936	131	155	45	325	2.6
7036M63040GD	40	3000°K - CRI>80	dali	4717	118	155	45	325	2.6
7036M63050GD	50	3000°K - CRI>80	dali	4924	98	155	45	325	2.6
7036M63030GA	30	3000°K - CRI>80	acid-etched glass	3936	131	155	45	325	2.6
7036M63040GA	40	3000°K - CRI>80	acid-etched glass	4717	118	155	45	325	2.6
7036M63050GA	50	3000°K - CRI>80	acid-etched glass	4924	98	155	45	325	2.6
7036M62230GL	30	Ambra - CRI>80	on/off	3556	119	155	45	325	2.6
7036M62240GL	40	Ambra - CRI>80	on/off	4261	107	155	45	325	2.6
