POLAR 1M/ME

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR, Floodlights, art. 7036 Polar 1M

Models: 45

Color: Silver

Catalogue abstract

Installation instructions

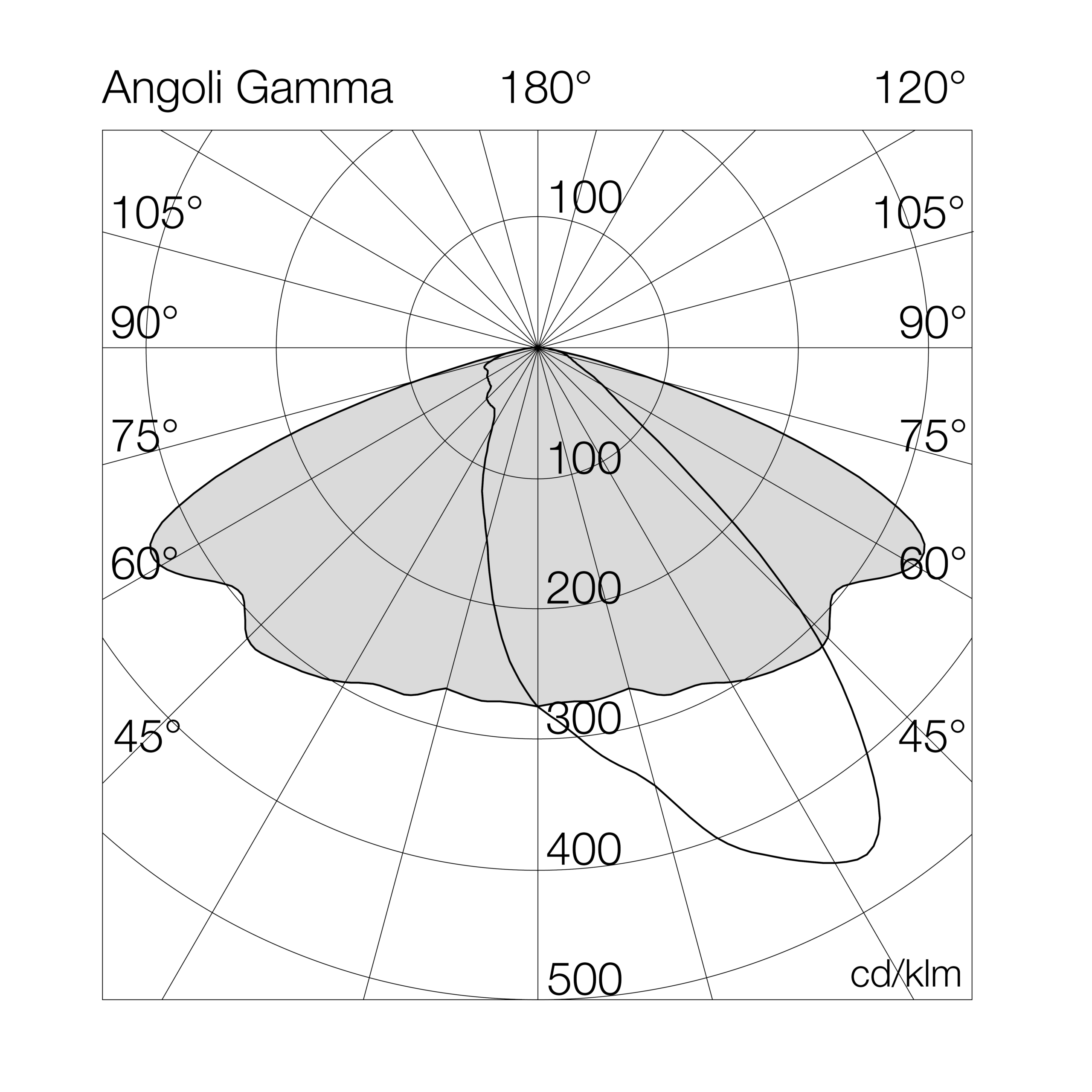

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7036	ME	22	= ambra (CRI >80)	30	GL	= on/off
		30	= 3000°K (CRI >80)	40	GD	= dali
		40	= 4000°K (CRI >80)	50	GA	= acid-etched glass
		50	= 5000°K (CRI >80)
		65	= 6500°K (CRI >80)

Models

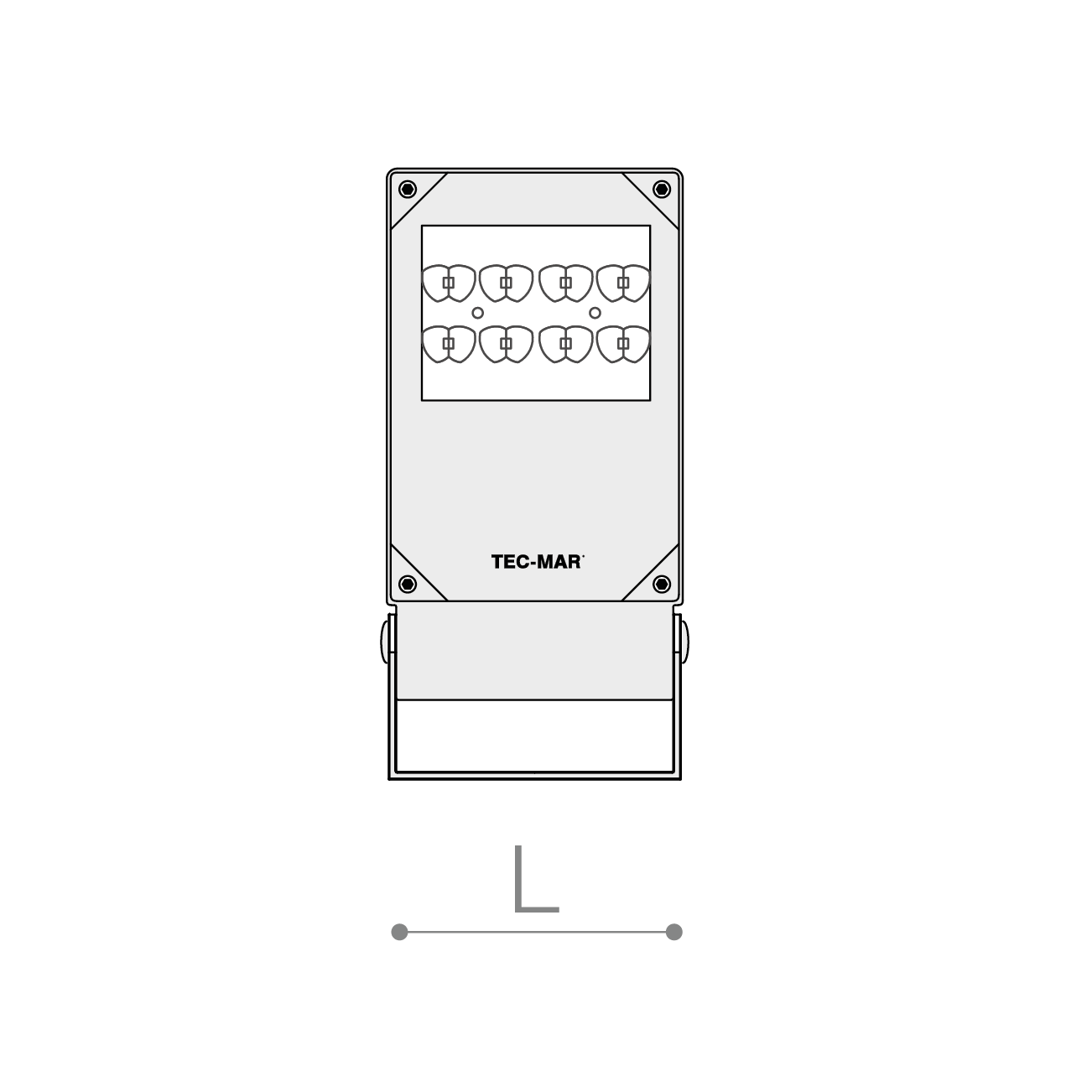

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
7036ME4030GL	30	4000°K - CRI>80	on/off	4058	135	155	45	325	2.6
7036ME4040GL	40	4000°K - CRI>80	on/off	4863	122	155	45	325	2.6
7036ME4050GL	50	4000°K - CRI>80	on/off	5076	102	155	45	325	2.6
7036ME4030GD	30	4000°K - CRI>80	dali	4058	135	155	45	325	2.6
7036ME4040GD	40	4000°K - CRI>80	dali	4863	122	155	45	325	2.6
7036ME4050GD	50	4000°K - CRI>80	dali	5076	102	155	45	325	2.6
7036ME4030GA	30	4000°K - CRI>80	acid-etched glass	4058	135	155	45	325	2.6
7036ME4040GA	40	4000°K - CRI>80	acid-etched glass	4863	122	155	45	325	2.6
7036ME4050GA	50	4000°K - CRI>80	acid-etched glass	5076	102	155	45	325	2.6
7036ME3030GL	30	3000°K - CRI>80	on/off	3804	127	155	45	325	2.6
7036ME3040GL	40	3000°K - CRI>80	on/off	4559	114	155	45	325	2.6
7036ME3050GL	50	3000°K - CRI>80	on/off	4759	95	155	45	325	2.6
7036ME3030GD	30	3000°K - CRI>80	dali	3804	127	155	45	325	2.6
7036ME3040GD	40	3000°K - CRI>80	dali	4559	114	155	45	325	2.6
7036ME3050GD	50	3000°K - CRI>80	dali	4759	95	155	45	325	2.6
7036ME3030GA	30	3000°K - CRI>80	acid-etched glass	3804	127	155	45	325	2.6
7036ME3040GA	40	3000°K - CRI>80	acid-etched glass	4559	114	155	45	325	2.6
7036ME3050GA	50	3000°K - CRI>80	acid-etched glass	4759	95	155	45	325	2.6
7036ME2230GL	30	Ambra - CRI>80	on/off	3437	115	155	45	325	2.6
7036ME2240GL	40	Ambra - CRI>80	on/off	4119	103	155	45	325	2.6
