POLAR 1M/S9

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, POLAR, Floodlights, art. 7036 Polar 1M

Models: 45

Color: Silver

Catalogue abstract

Installation instructions

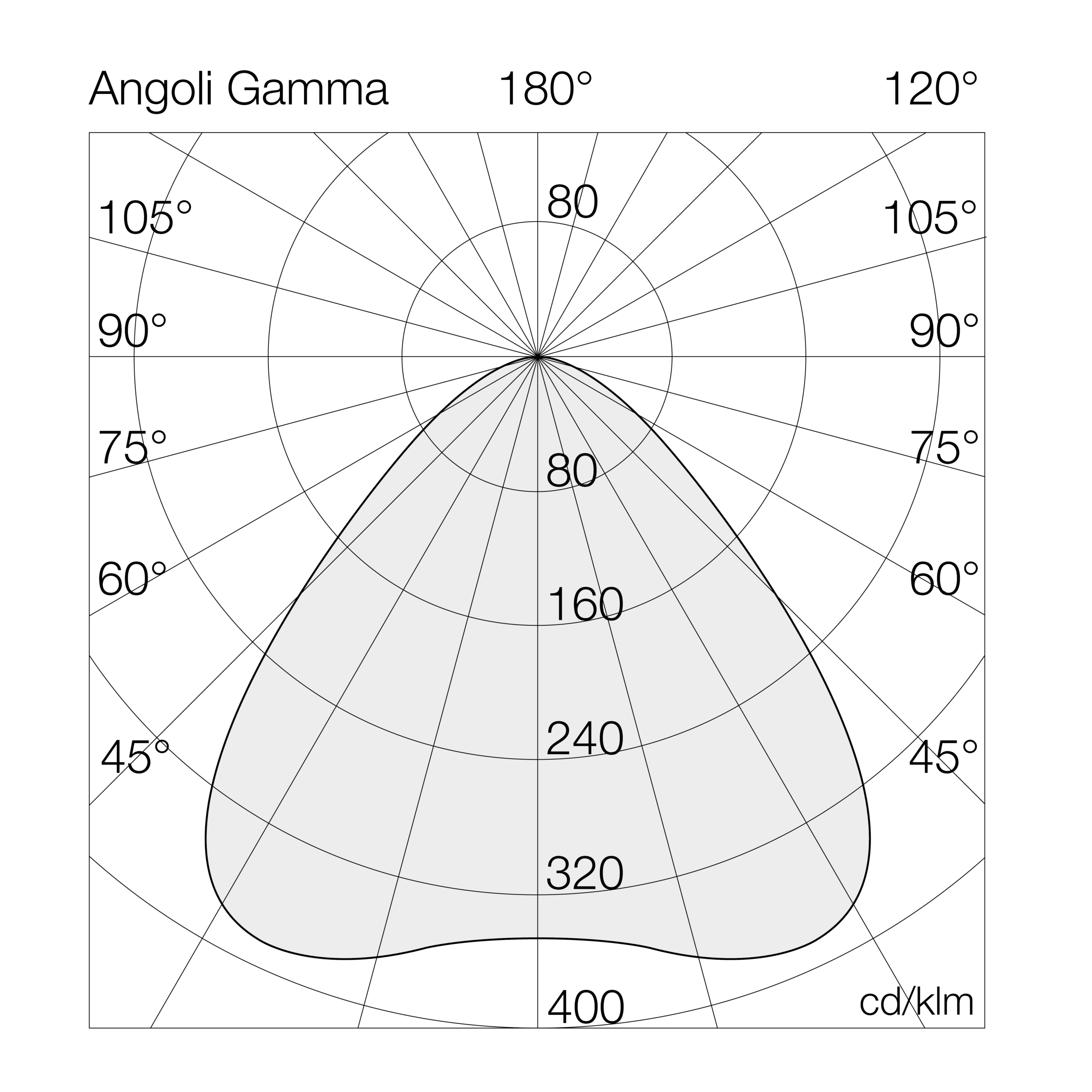

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7036	S9	22	= ambra (CRI >80)	30	GL	= on/off
		30	= 3000°K (CRI >80)	40	GD	= dali
		40	= 4000°K (CRI >80)	50	GA	= acid-etched glass
		50	= 5000°K (CRI >80)
		65	= 6500°K (CRI >80)

Models

Codice	W tot.	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	Kg
7036S94030GL	30	4000°K - CRI>80	on/off	4244	141	155	45	325	2.6
7036S94040GL	40	4000°K - CRI>80	on/off	5087	127	155	45	325	2.6
7036S94050GL	50	4000°K - CRI>80	on/off	5310	106	155	45	325	2.6
7036S94030GD	30	4000°K - CRI>80	dali	4244	141	155	45	325	2.6
7036S94040GD	40	4000°K - CRI>80	dali	5087	127	155	45	325	2.6
7036S94050GD	50	4000°K - CRI>80	dali	5310	106	155	45	325	2.6
7036S94030GA	30	4000°K - CRI>80	acid-etched glass	4244	141	155	45	325	2.6
7036S94040GA	40	4000°K - CRI>80	acid-etched glass	5087	127	155	45	325	2.6
7036S94050GA	50	4000°K - CRI>80	acid-etched glass	5310	106	155	45	325	2.6
7036S93030GL	30	3000°K - CRI>80	on/off	3979	133	155	45	325	2.6
7036S93040GL	40	3000°K - CRI>80	on/off	4769	119	155	45	325	2.6
7036S93050GL	50	3000°K - CRI>80	on/off	4978	100	155	45	325	2.6
7036S93030GD	30	3000°K - CRI>80	dali	3979	133	155	45	325	2.6
7036S93040GD	40	3000°K - CRI>80	dali	4769	119	155	45	325	2.6
7036S93050GD	50	3000°K - CRI>80	dali	4978	100	155	45	325	2.6
7036S93030GA	30	3000°K - CRI>80	acid-etched glass	3979	133	155	45	325	2.6
7036S93040GA	40	3000°K - CRI>80	acid-etched glass	4769	119	155	45	325	2.6
7036S93050GA	50	3000°K - CRI>80	acid-etched glass	4978	100	155	45	325	2.6
7036S92230GL	30	Ambra - CRI>80	on/off	3595	120	155	45	325	2.6
7036S92240GL	40	Ambra - CRI>80	on/off	4309	108	155	45	325	2.6
