POLAR 2M – Mod. M6

(56° symmetrical optics)

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, POLAR 2M - 7037, Floodlights, POLAR 2M
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

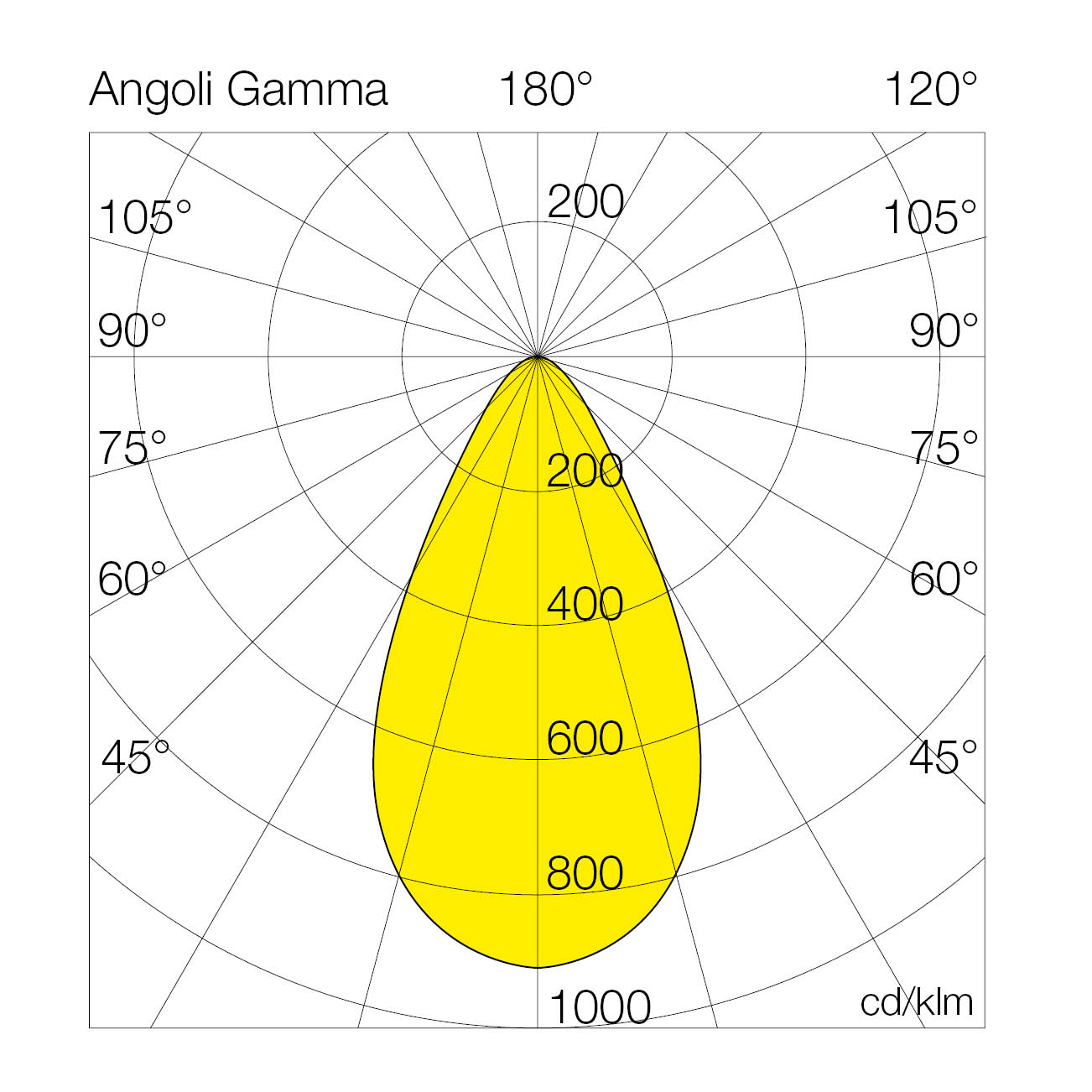

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7037M622= ambra (CRI >80) 54GL= on/off
30= 3000°K (CRI >80)60GD= dali
40= 4000°K (CRI >80)65GA= acid-etched glass
50= 5000°K (CRI >80)70
65= 6500°K (CRI >80)73
80

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7037M64054GL54-4000°K - CRI>80on/off781014520550365-3.7
7037M64060GL60-4000°K - CRI>80on/off839514020550365-3.7
7037M64065GL65-4000°K - CRI>80on/off895713820550365-3.7
7037M64070GL70-4000°K - CRI>80on/off928313320550365-3.7
7037M64073GL73-4000°K - CRI>80on/off960013220550365-3.7
7037M64080GL80-4000°K - CRI>80on/off1001112520550365-3.7
7037M64054GD54-4000°K - CRI>80dali781014520550365-3.7
7037M64060GD60-4000°K - CRI>80dali839514020550365-3.7
7037M64065GD65-4000°K - CRI>80dali895713820550365-3.7
7037M64070GD70-4000°K - CRI>80dali928313320550365-3.7
7037M64073GD73-4000°K - CRI>80dali960013220550365-3.7
7037M64080GD80-4000°K - CRI>80dali1001112520550365-3.7
7037M64054GA54-4000°K - CRI>80acid-etched glass781014520550365-3.7
7037M64060GA60-4000°K - CRI>80acid-etched glass839514020550365-3.7
7037M64065GA65-4000°K - CRI>80acid-etched glass895713820550365-3.7
7037M64070GA70-4000°K - CRI>80acid-etched glass928313320550365-3.7
7037M64073GA73-4000°K - CRI>80acid-etched glass960013220550365-3.7
7037M64080GA80-4000°K - CRI>80acid-etched glass1001112520550365-3.7
7037M63054GL54-3000°K - CRI>80on/off732213620550365-3.7
7037M63060GL60-3000°K - CRI>80on/off787013120550365-3.7

Accessories
