POLAR 2M – Mod. ME

(Wide asymmetric street optics Class ME)

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, POLAR 2M - 7037, Floodlights, POLAR 2M
Models: 90
Color: Silver
Catalogue abstract
Installation instructions

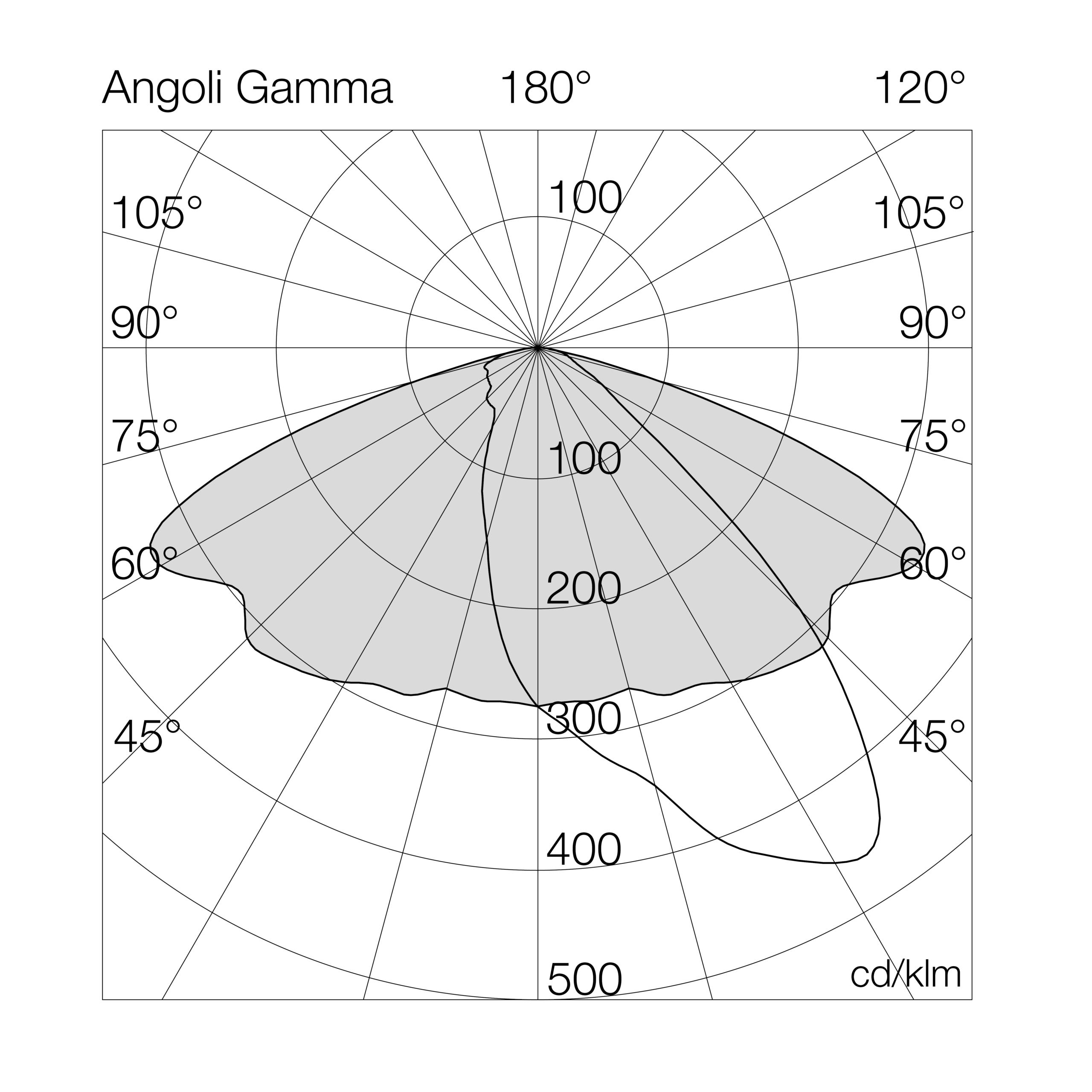

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7037ME22= ambra (CRI >80) 54GL= on/off
30= 3000°K (CRI >80)60GD= dali
40= 4000°K (CRI >80)65GA= acid-etched glass
50= 5000°K (CRI >80)70
65= 6500°K (CRI >80)73
80

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7037ME4054GL54-4000°K - CRI>80on/off755014020550365-3.7
7037ME4060GL60-4000°K - CRI>80on/off811513520550365-3.7
7037ME4065GL65-4000°K - CRI>80on/off865813320550365-3.7
7037ME4070GL70-4000°K - CRI>80on/off897312820550365-3.7
7037ME4073GL73-4000°K - CRI>80on/off928012720550365-3.7
7037ME4080GL80-4000°K - CRI>80on/off967712120550365-3.7
7037ME4054GD54-4000°K - CRI>80dali755014020550365-3.7
7037ME4060GD60-4000°K - CRI>80dali811513520550365-3.7
7037ME4065GD65-4000°K - CRI>80dali865813320550365-3.7
7037ME4070GD70-4000°K - CRI>80dali897312820550365-3.7
7037ME4073GD73-4000°K - CRI>80dali928012720550365-3.7
7037ME4080GD80-4000°K - CRI>80dali967712120550365-3.7
7037ME4054GA54-4000°K - CRI>80acid-etched glass755014020550365-3.7
7037ME4060GA60-4000°K - CRI>80acid-etched glass811513520550365-3.7
7037ME4065GA65-4000°K - CRI>80acid-etched glass865813320550365-3.7
7037ME4070GA70-4000°K - CRI>80acid-etched glass897312820550365-3.7
7037ME4073GA73-4000°K - CRI>80acid-etched glass928012720550365-3.7
7037ME4080GA80-4000°K - CRI>80acid-etched glass967712120550365-3.7
7037ME3054GL54-3000°K - CRI>80on/off707813120550365-3.7
7037ME3060GL60-3000°K - CRI>80on/off760812720550365-3.7
