IPADEL/PD

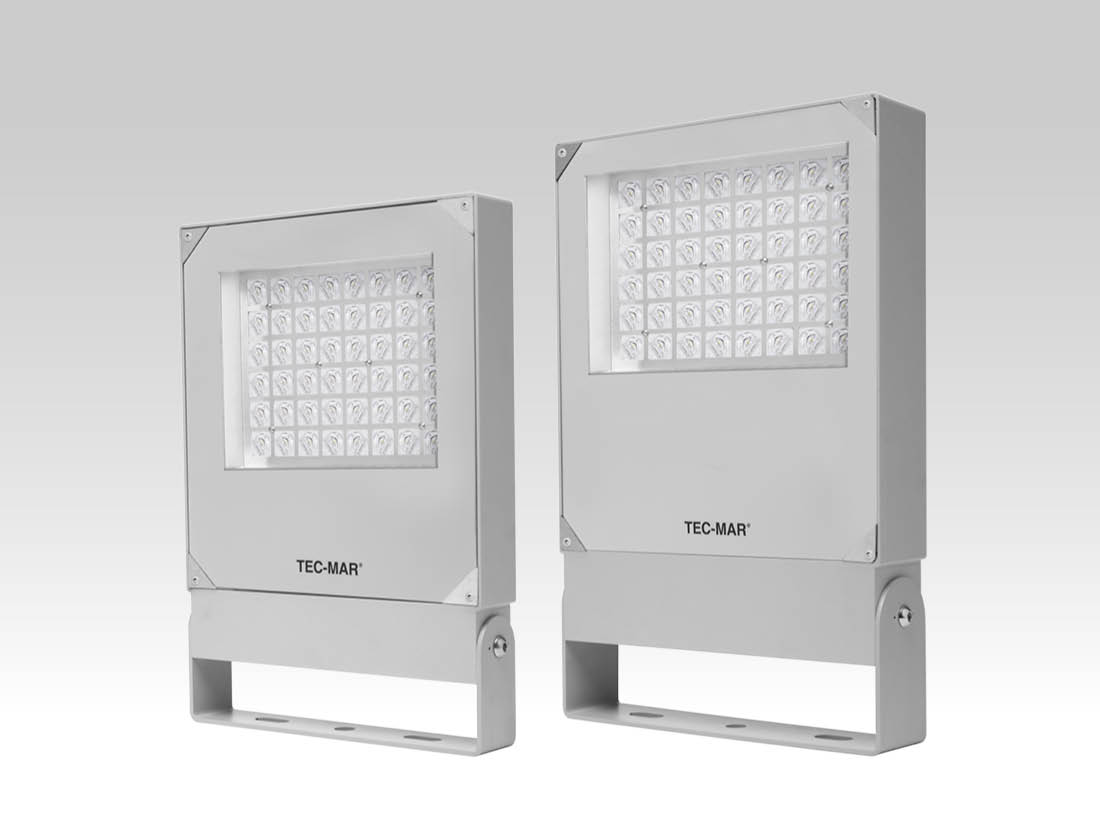

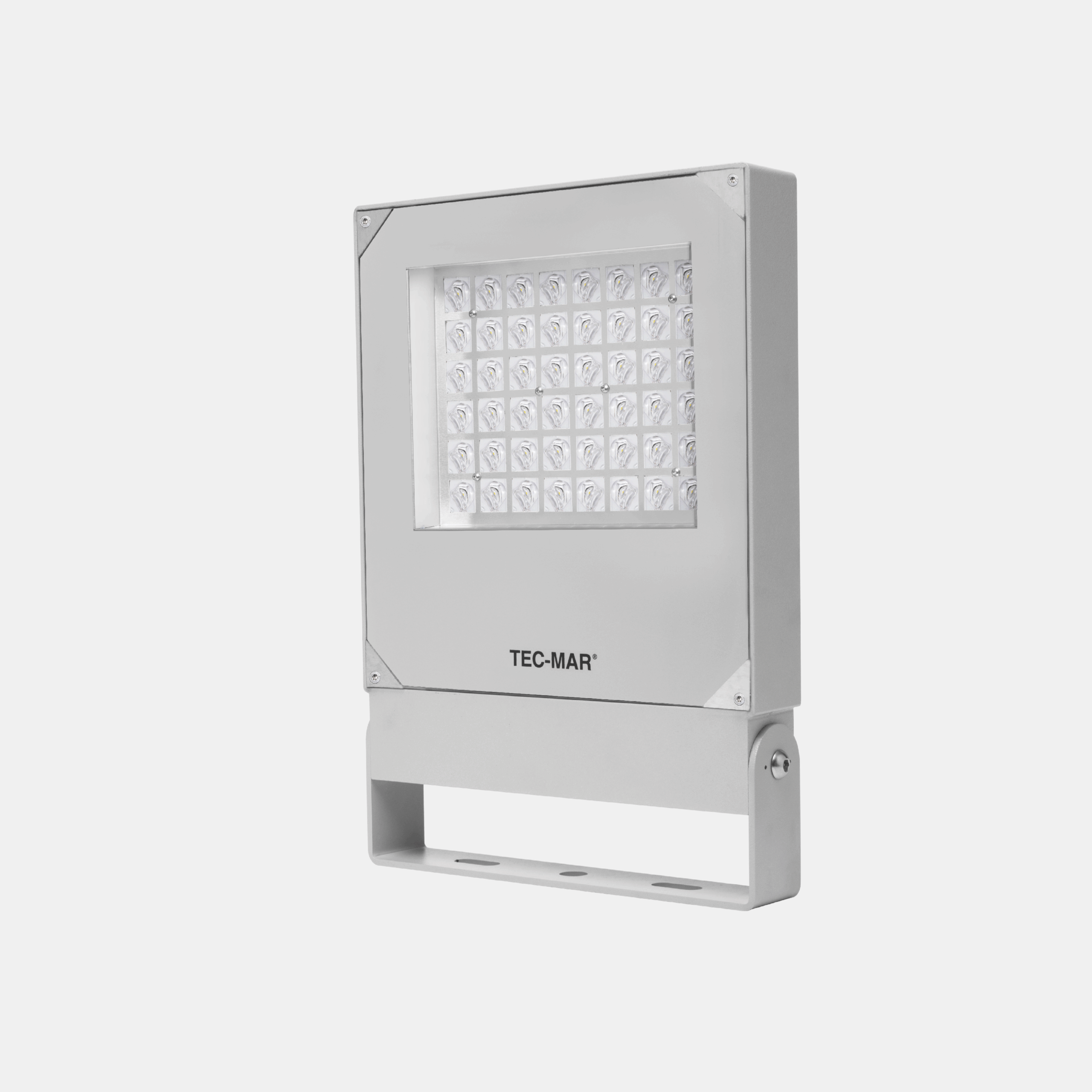

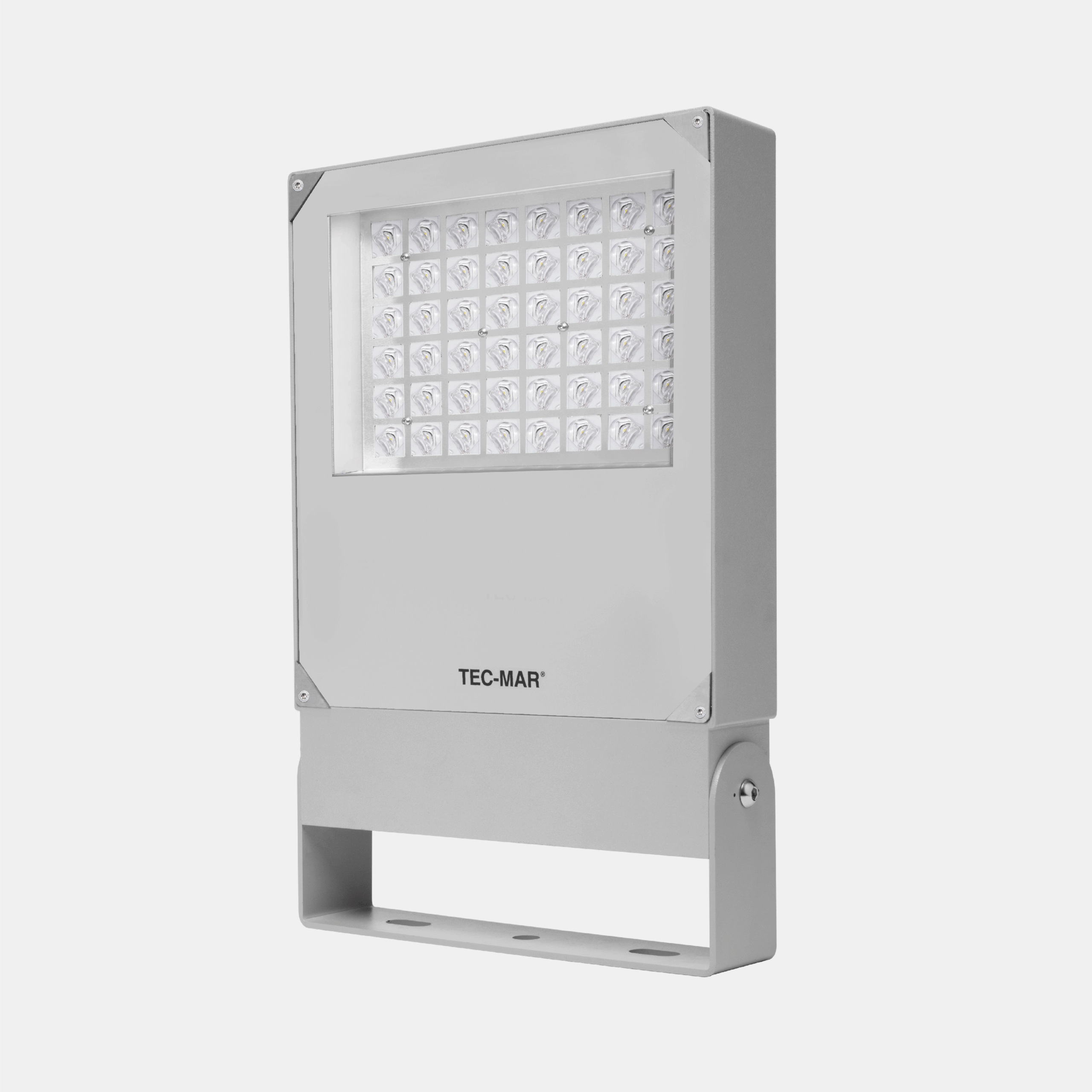

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, Floodlights, art. 7038 Ipadel
Models: 64
Color: Silver
Catalogue abstract
Installation instructions

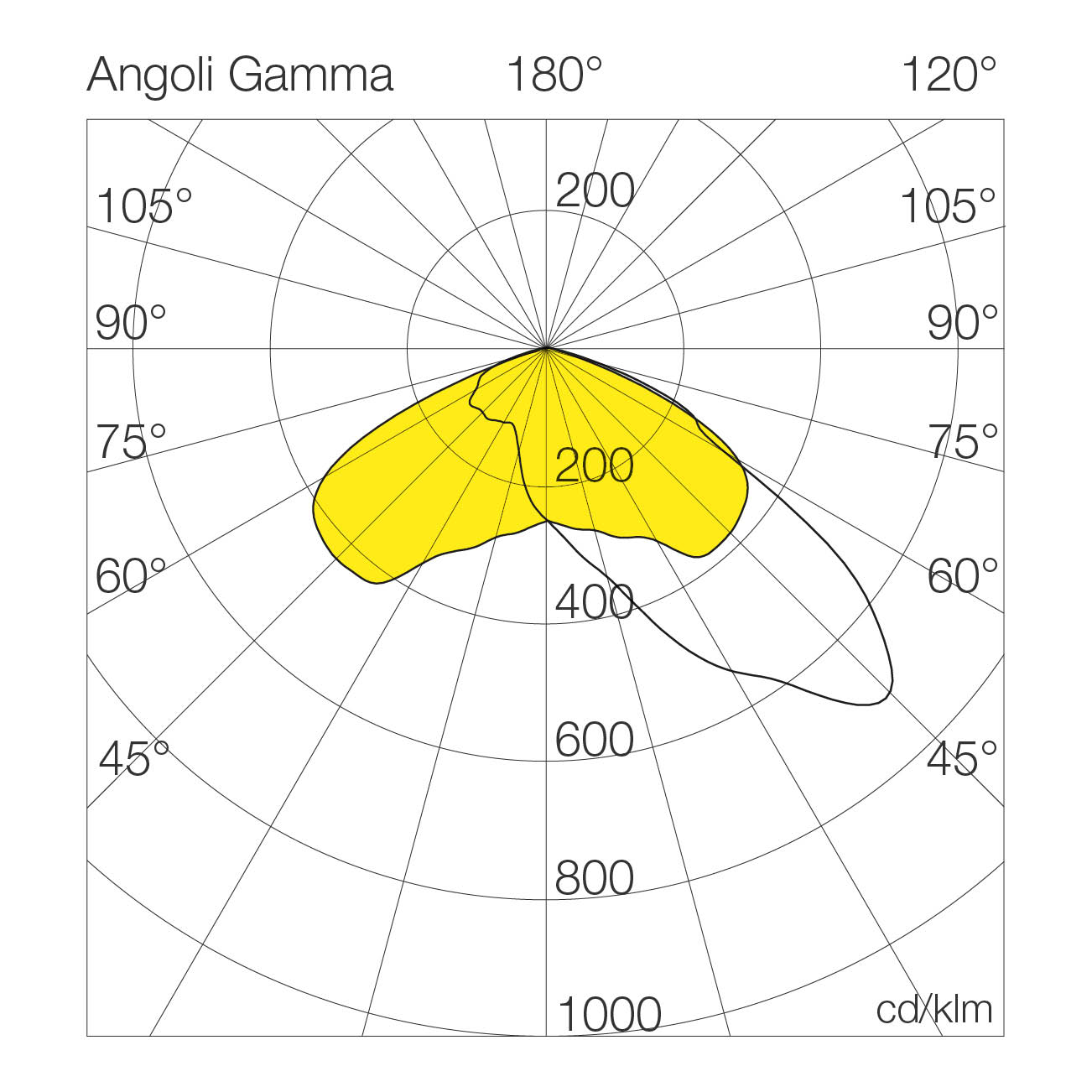

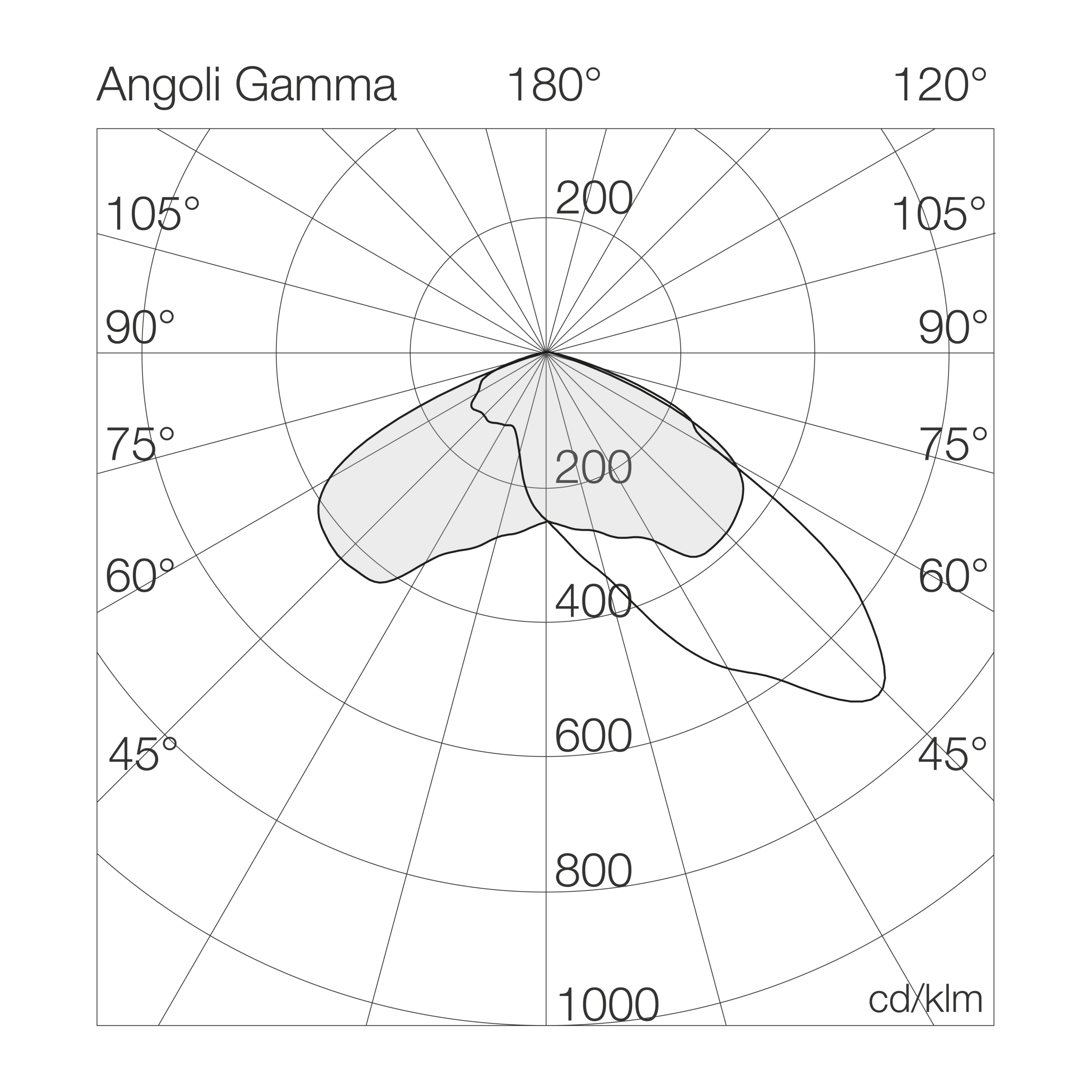

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7038PD3= 3000°K (CRI >80)080GL= on/off
4= 4000°K (CRI >80)120GD= dali
5= 5000°K (CRI >80)130GV= shatterproof glass
6= 6500°K (CRI >80)150
175
185
190
260

Models

W tot.
°K - CRI
Options

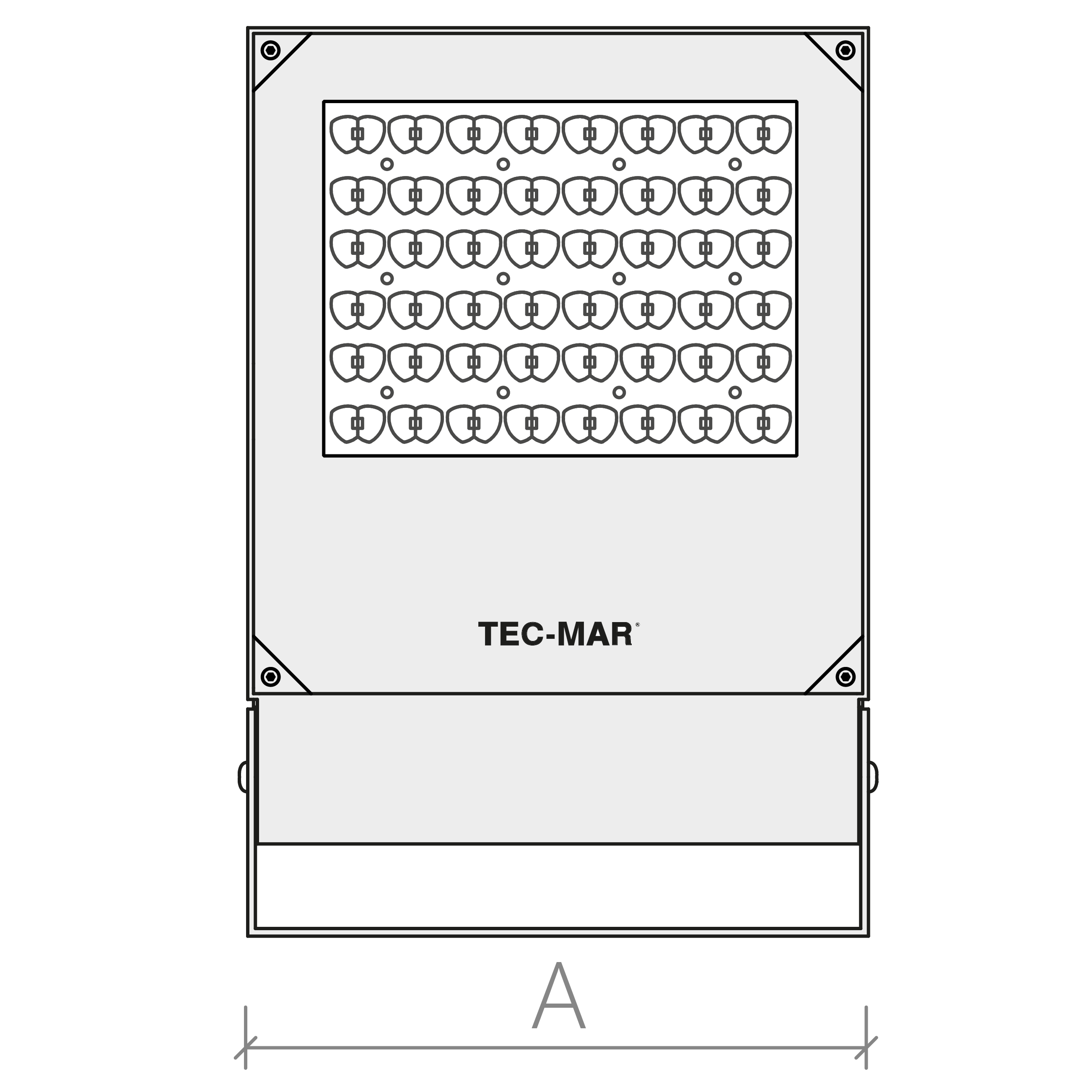

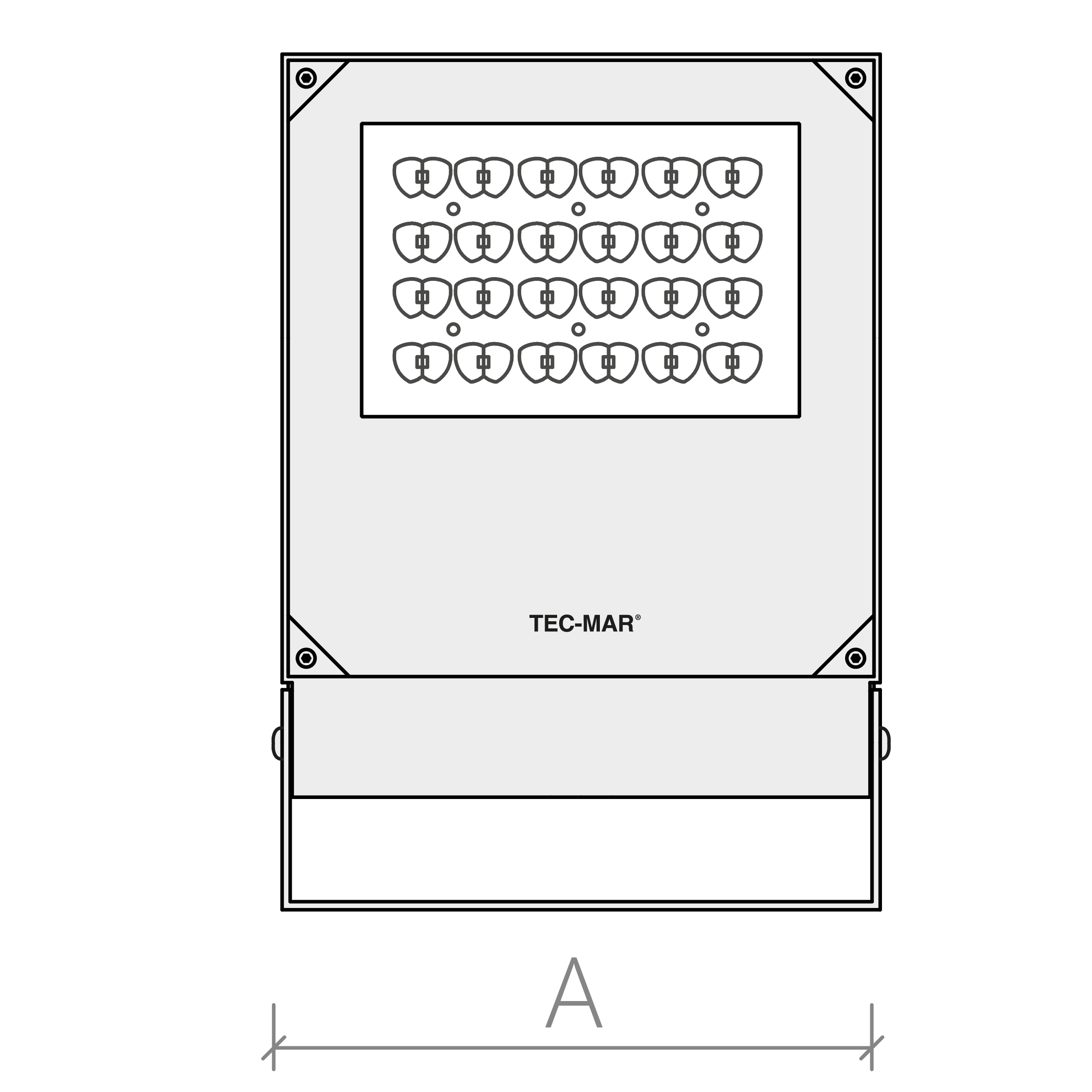

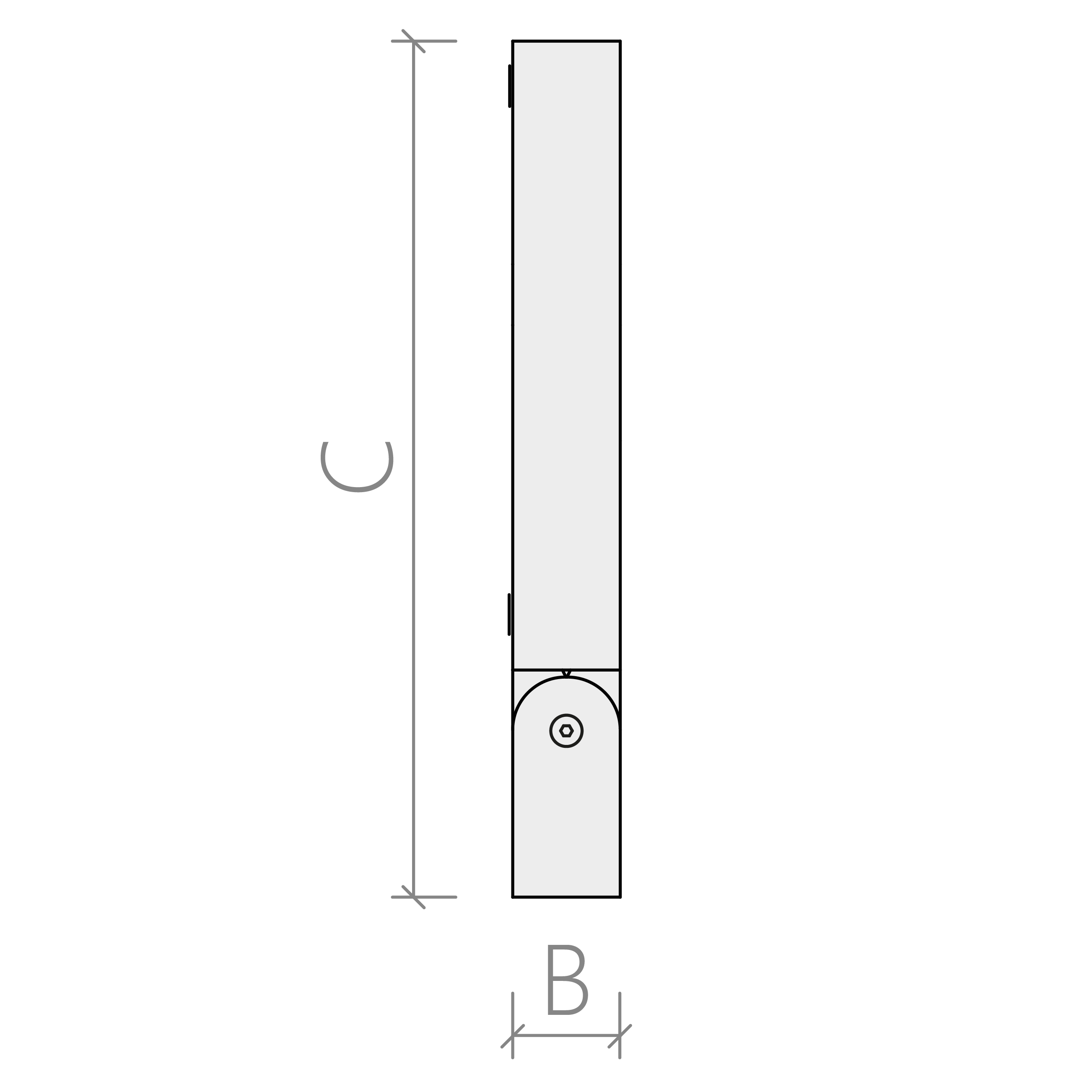

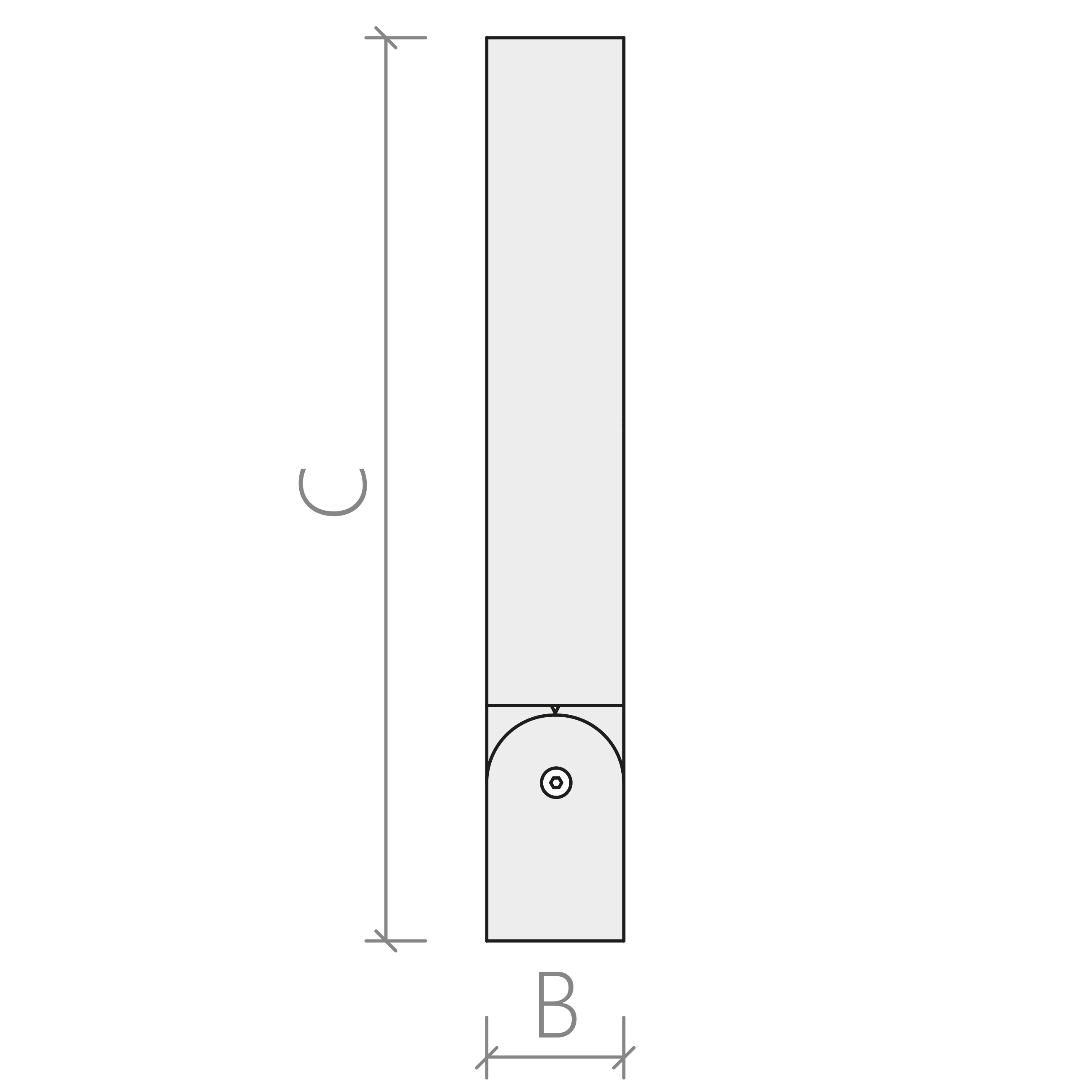

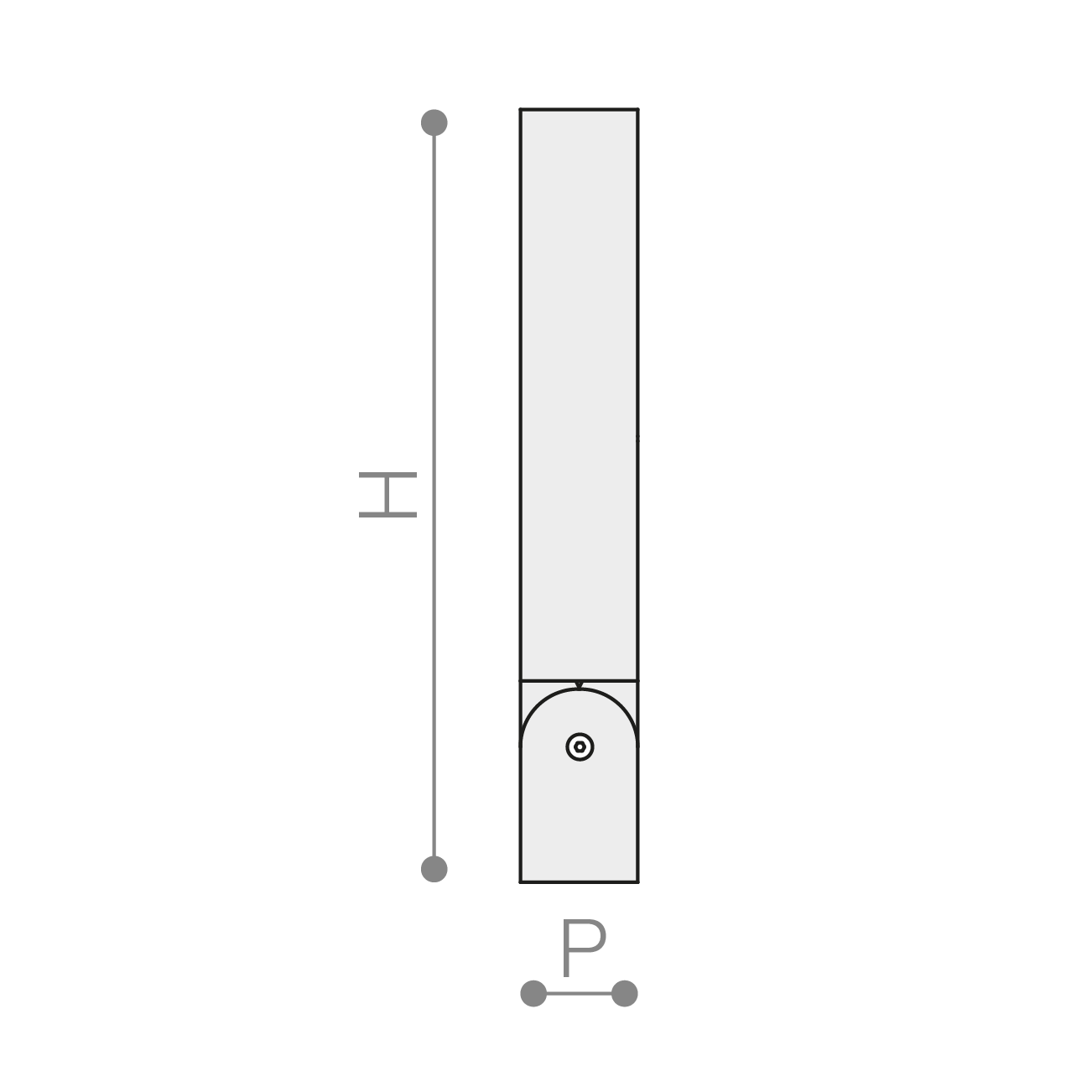

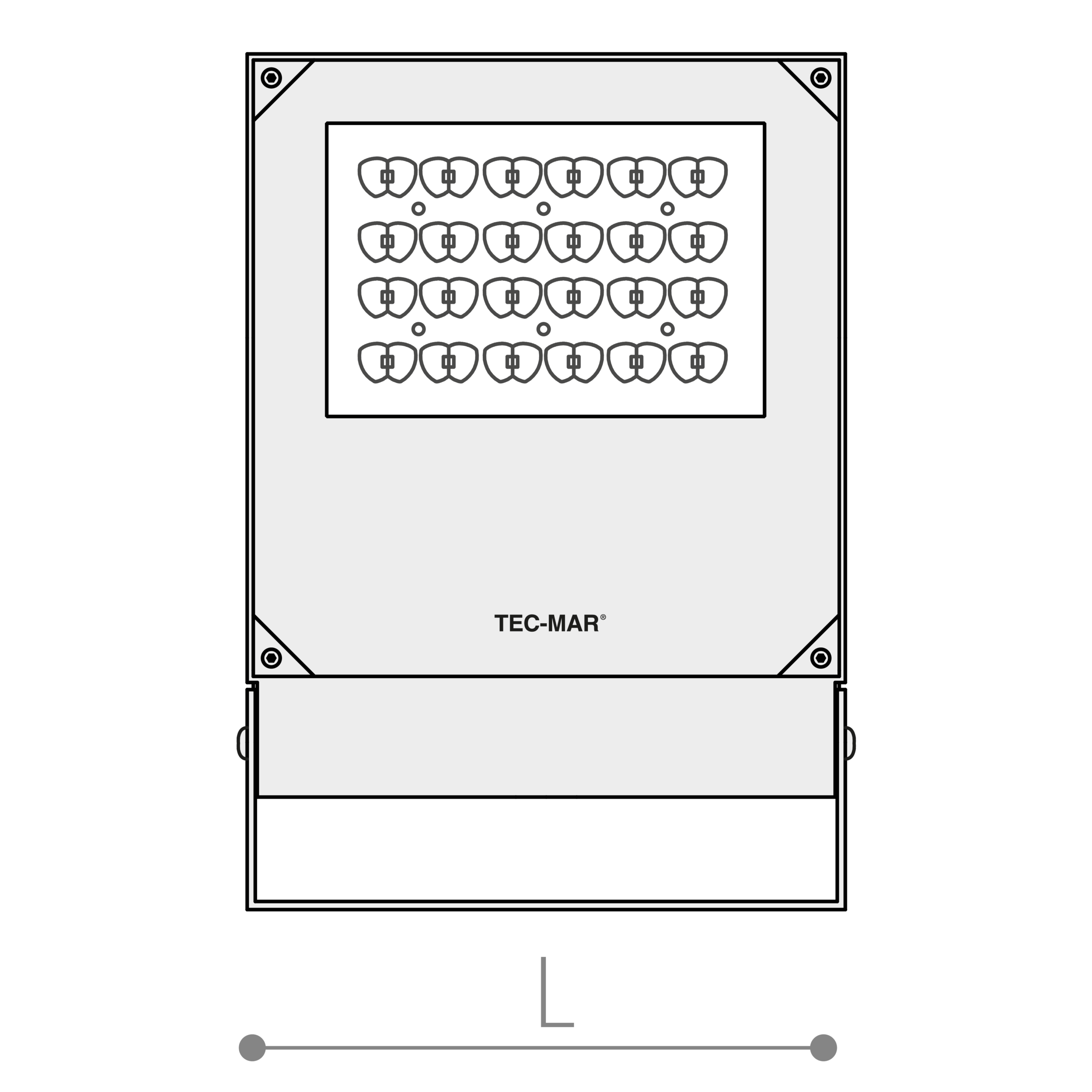

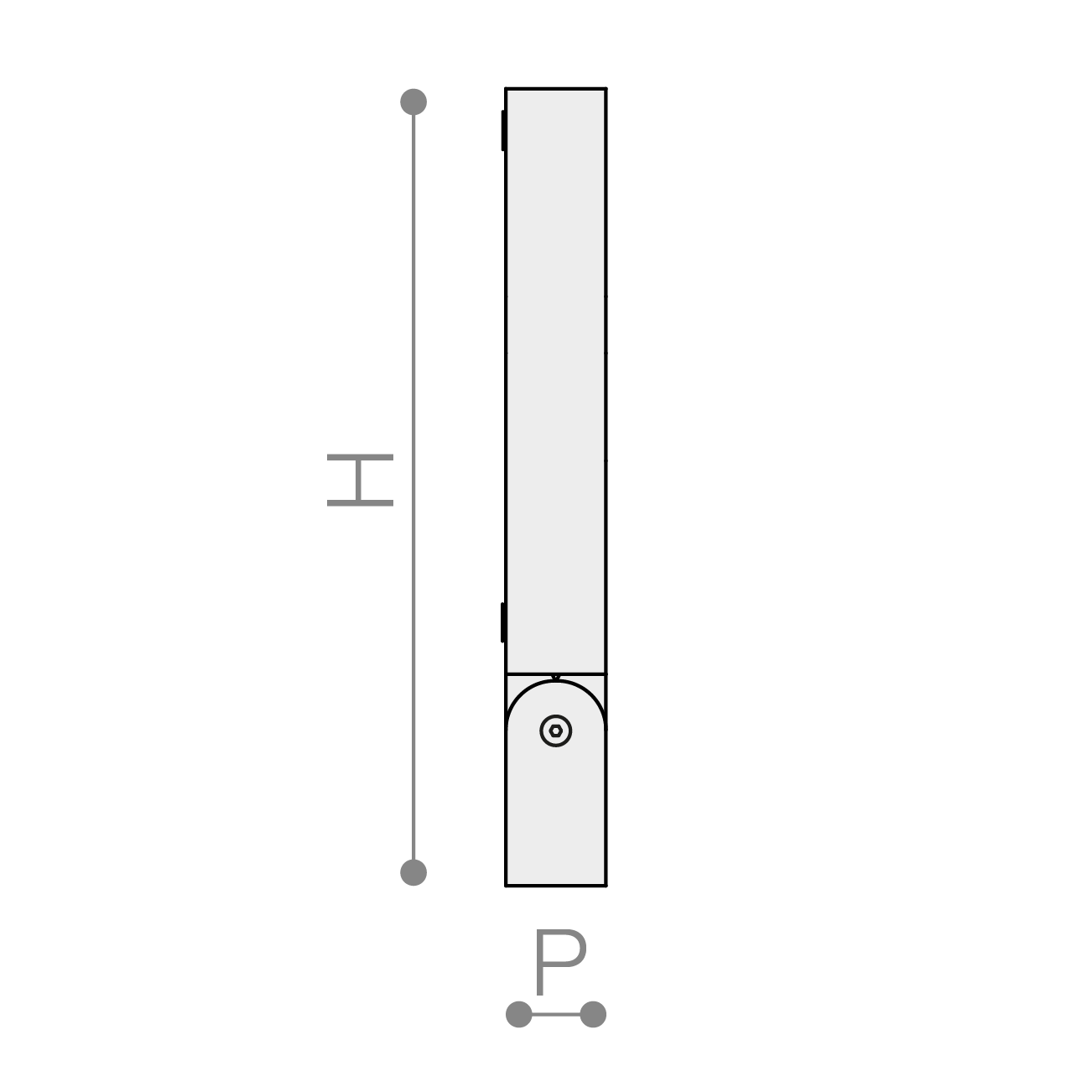

CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7038PD4080GL804000°K - CRI>80on/off9904124295554255.6
7038PD4120GL1204000°K - CRI>80on/off14572121295554255.6
7038PD4130GL1304000°K - CRI>80on/off15288118295554255.6
7038PD4150GL1504000°K - CRI>80on/off18461123295554255.6
7038PD4175GL1754000°K - CRI>80on/off20699118295554255.6
7038PD4185GL1854000°K - CRI>80on/off21634117295554255.6
7038PD4190GL1904000°K - CRI>80on/off21943115295554255.6
7038PD4260GL2604000°K - CRI>80on/off29773115325705008.4
7038PD4080GD804000°K - CRI>80dali9904124295554255.6
7038PD4120GD1204000°K - CRI>80dali14572121295554255.6
7038PD4130GD1304000°K - CRI>80dali15288118295554255.6
7038PD4150GD1504000°K - CRI>80dali18461123295554255.6
7038PD4175GD1754000°K - CRI>80dali20699118295554255.6
7038PD4185GD1854000°K - CRI>80dali21634117295554255.6
7038PD4190GD1904000°K - CRI>80dali21943115295554255.6
7038PD4260GD2604000°K - CRI>80dali29773115325705008.4
7038PD3080GL803000°K - CRI>80on/off9285116295554255.6
7038PD3120GL1203000°K - CRI>80on/off13661114295554255.6
7038PD3130GL1303000°K - CRI>80on/off14333110295554255.6
7038PD3150GL1503000°K - CRI>80on/off17307115295554255.6
