art.-7038-polar-3m-s9-m6-c3-a5-a6-me

POLAR 3M/A6

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR, Floodlights, art. 7038 Polar 3M
Models: 255
Color: Silver
Catalogue abstract
Installation instructions

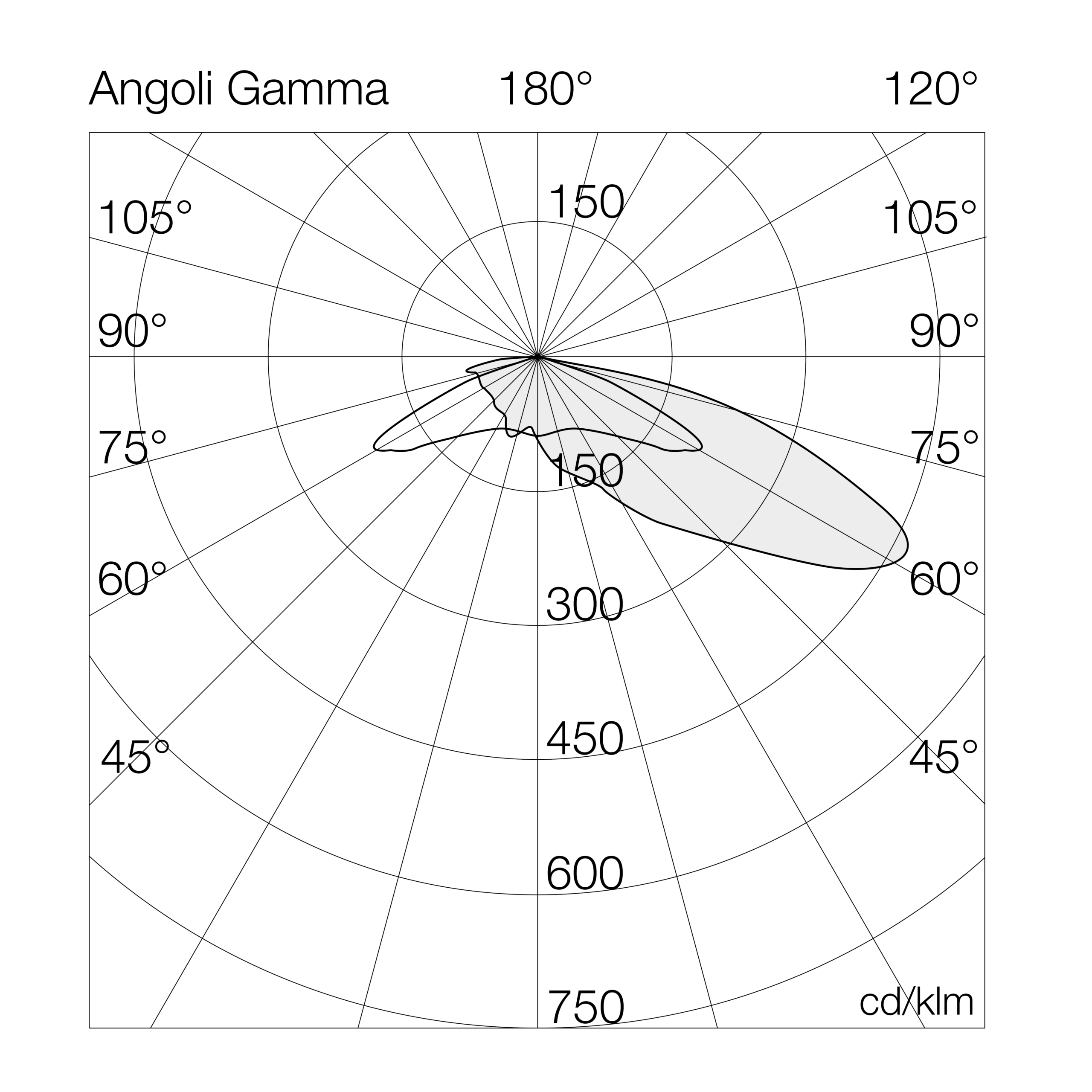

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7038A62= ambra (CRI >80) 030105GL= on/off
3= 3000°K (CRI >80)040120GD= dali
4= 4000°K (CRI >80)050125GA= acid-etched glass
5= 5000°K (CRI >80)054130
6= 6500°K (CRI >80)068135
073150
080175
085190
100

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7038A64030GL304000°K - CRI>80on/off5209174295554255.6
7038A64040GL404000°K - CRI>80on/off6535163295554255.6
7038A64050GL504000°K - CRI>80on/off8153163295554255.6
7038A64054GL544000°K - CRI>80on/off8472157295554255.6
7038A64068GL684000°K - CRI>80on/off10652157295554255.6
7038A64073GL734000°K - CRI>80on/off11259154295554255.6
7038A64080GL804000°K - CRI>80on/off12303154295554255.6
7038A64085GL854000°K - CRI>80on/off13384157295554255.6
7038A64100GL1004000°K - CRI>80on/off14465145295554255.6
7038A64105GL1054000°K - CRI>80on/off15811151295554255.6
7038A64120GL1204000°K - CRI>80on/off16655139295554255.6
7038A64125GL1254000°K - CRI>80on/off18342147295554255.6
7038A64130GL1304000°K - CRI>80on/off17574135295554255.6
7038A64135GL1354000°K - CRI>80on/off19287143295554255.6
7038A64150GL1504000°K - CRI>80on/off21131141295554255.6
7038A64175GL1754000°K - CRI>80on/off23604135295554255.6
7038A64190GL1904000°K - CRI>80on/off24960131295554255.6
7038A64030GD304000°K - CRI>80dali5209174295554255.6
7038A64040GD404000°K - CRI>80dali6535163295554255.6
7038A64050GD504000°K - CRI>80dali8153163295554255.6

Accessories
