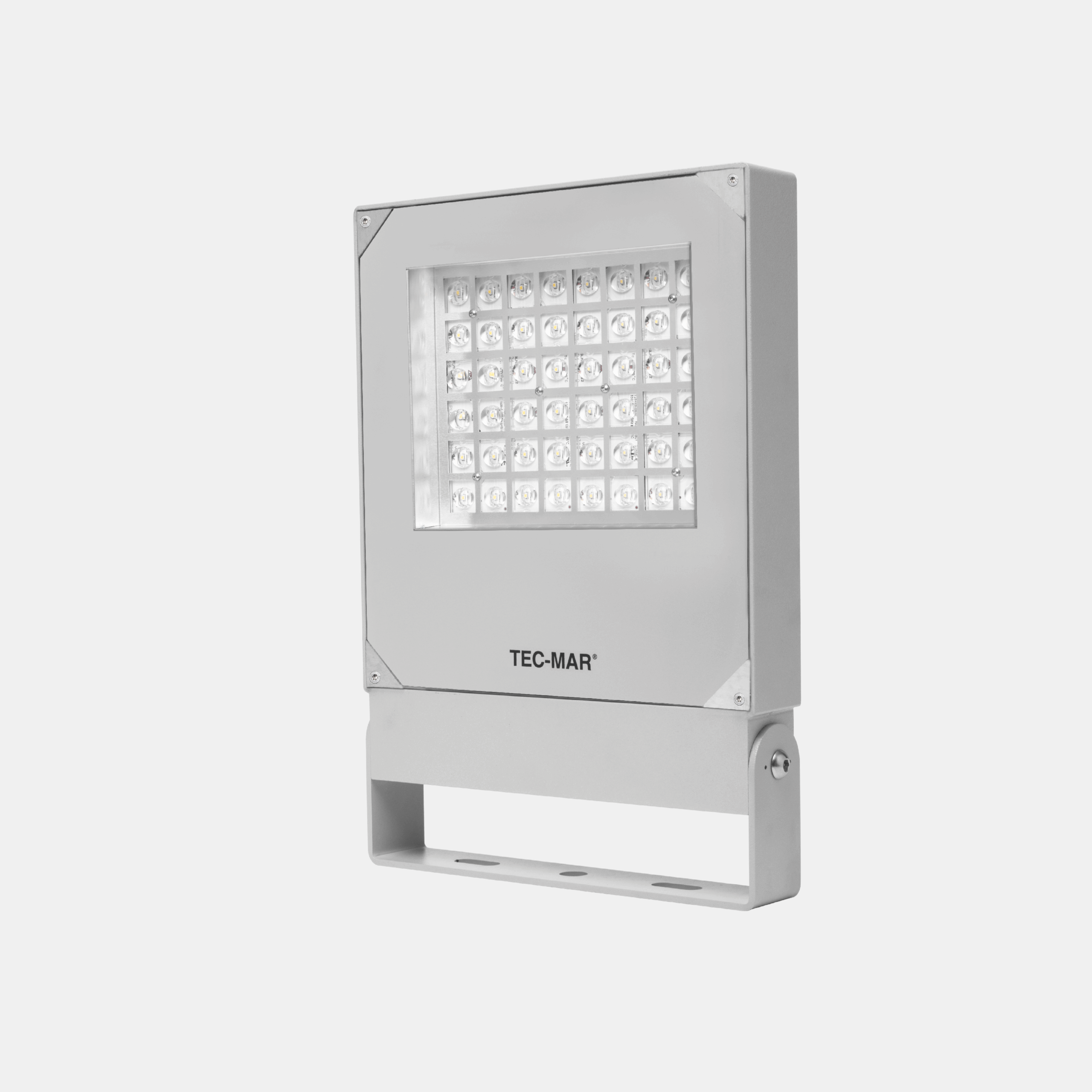

POLAR 3M/ME

Indoor and outdoor led floodlight. Die cast aluminium body, coated with polyester anticorrosion powder, silver color, 4 mm thick tempered transparent glass, silicon gasket, electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, POLAR 3M - 7038, POLAR, Floodlights, art. 7038 Polar 3M
Models: 255
Color: Silver
Catalogue abstract
Installation instructions

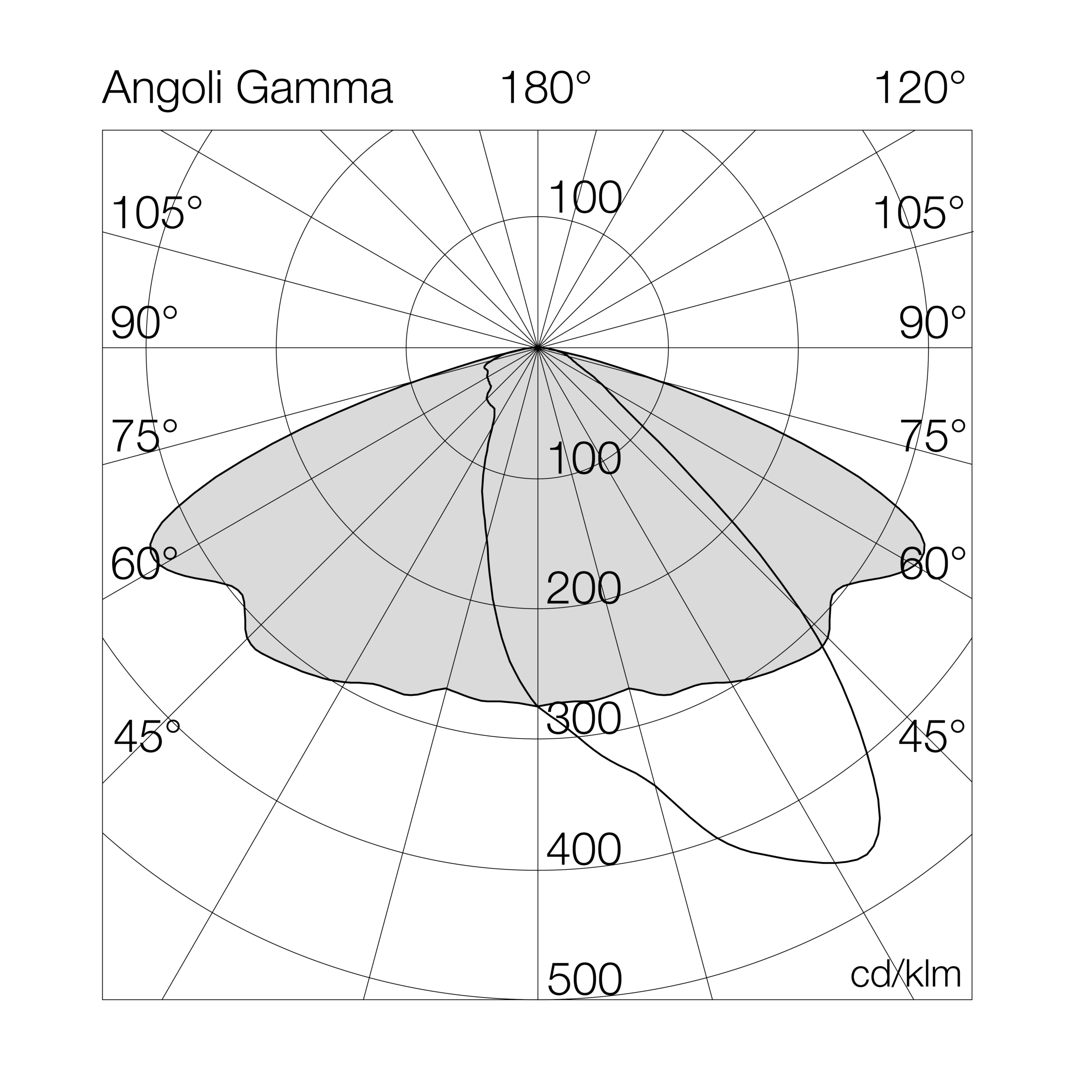

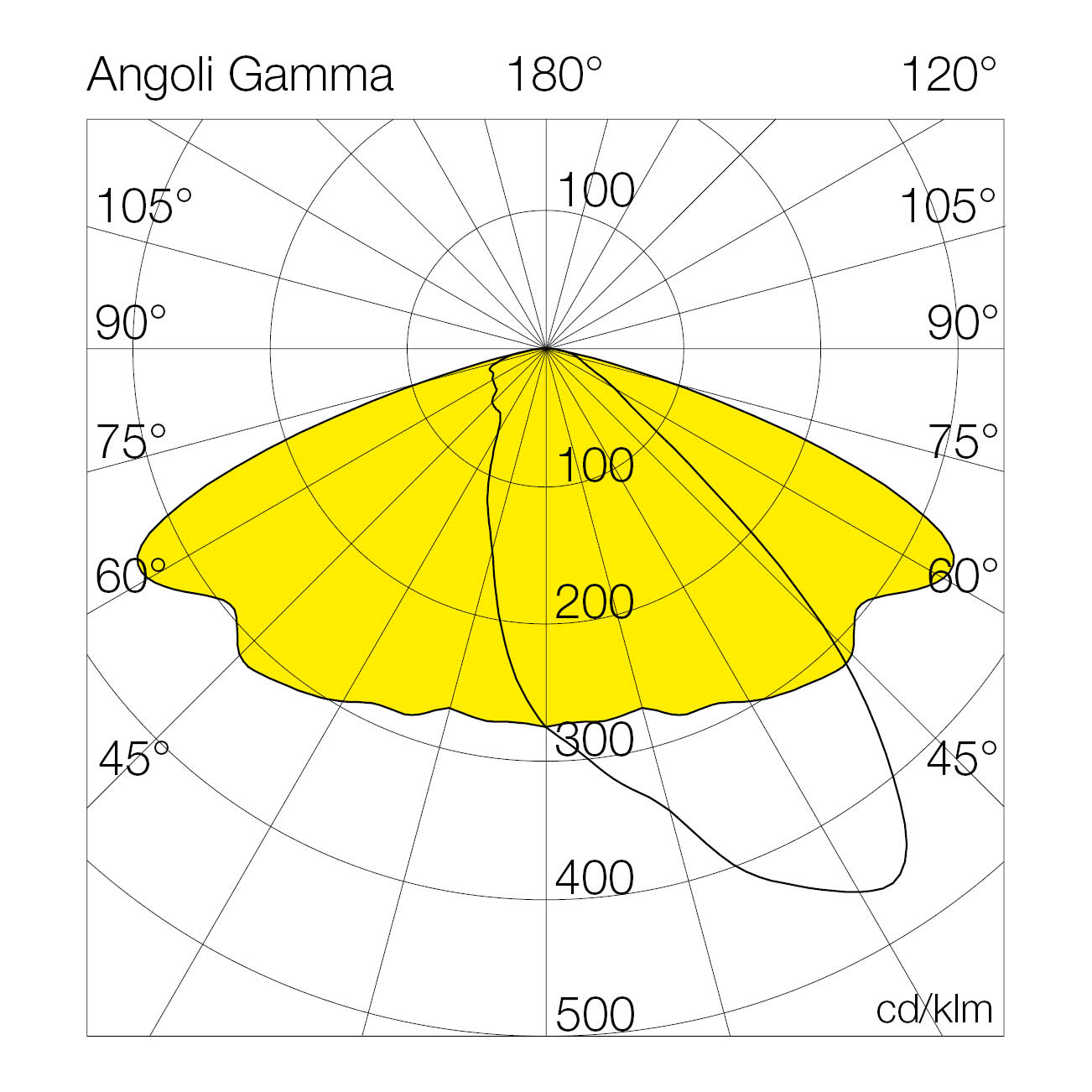

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7038ME2= ambra (CRI >80) 030105GL= on/off
3= 3000°K (CRI >80)040120GD= dali
4= 4000°K (CRI >80)050125GA= acid-etched glass
5= 5000°K (CRI >80)054130
6= 6500°K (CRI >80)068135
073150
080175
085190
100

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7038ME4030GL30-4000°K - CRI>80on/off515017229555425-5.6
7038ME4040GL40-4000°K - CRI>80on/off646116229555425-5.6
7038ME4050GL50-4000°K - CRI>80on/off806116129555425-5.6
7038ME4054GL54-4000°K - CRI>80on/off837515529555425-5.6
7038ME4068GL68-4000°K - CRI>80on/off1053015529555425-5.6
7038ME4073GL73-4000°K - CRI>80on/off1113115229555425-5.6
7038ME4080GL80-4000°K - CRI>80on/off1216315229555425-5.6
7038ME4085GL85-4000°K - CRI>80on/off1323215629555425-5.6
7038ME4100GL100-4000°K - CRI>80on/off1430114329555425-5.6
7038ME4105GL105-4000°K - CRI>80on/off1563114929555425-5.6
7038ME4120GL120-4000°K - CRI>80on/off1646613729555425-5.6
7038ME4125GL125-4000°K - CRI>80on/off1813314529555425-5.6
7038ME4130GL130-4000°K - CRI>80on/off1737413429555425-5.6
7038ME4135GL135-4000°K - CRI>80on/off1906814129555425-5.6
7038ME4150GL150-4000°K - CRI>80on/off2089013929555425-5.6
7038ME4175GL175-4000°K - CRI>80on/off2333613329555425-5.6
7038ME4190GL190-4000°K - CRI>80on/off2467713029555425-5.6
7038ME4030GD30-4000°K - CRI>80dali515017229555425-5.6
7038ME4040GD40-4000°K - CRI>80dali646116229555425-5.6
7038ME4050GD50-4000°K - CRI>80dali806116129555425-5.6

Accessories
