art.-7045-siro-q3-q6-corten

SIRO – Mod. Q3

(36° medium rotosymmetric optics)

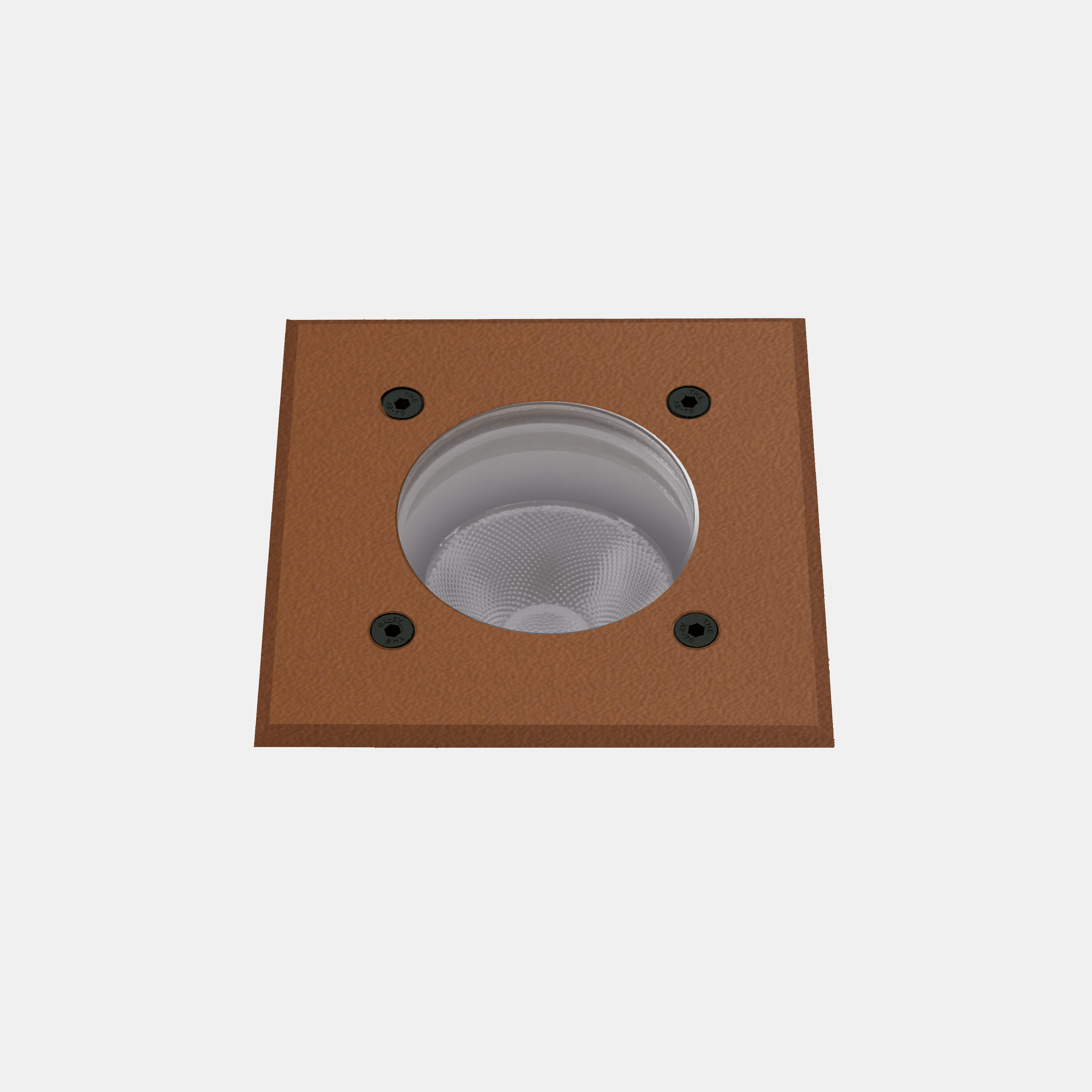

Floor/ground recessed ledad fixture, constructed from body and counter casing. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders color black. Injection-molded polycarbonate backbox black color. Corten color. Extraclear tempered flat glass diffuser 6 mm thick. 36° medium rotosymmetric optics.
Categories: Led, SIRO - 7045, Architectural Outdoor, SIRO
Models: 3
Color: Corten
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7045Q327= 2700°K (CRI >80)06CL= on/off
30= 3000°K (CRI >80)
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7045Q34006CL6-4000°K - CRI>80on/off660110110110177-0.65
7045Q33006CL6-3000°K - CRI>80on/off640107110110177-0.65
7045Q32706CL6-2700°K - CRI>80on/off610102110110177-0.65

Accessories
