art.-7045-siro-r3-r6-nero

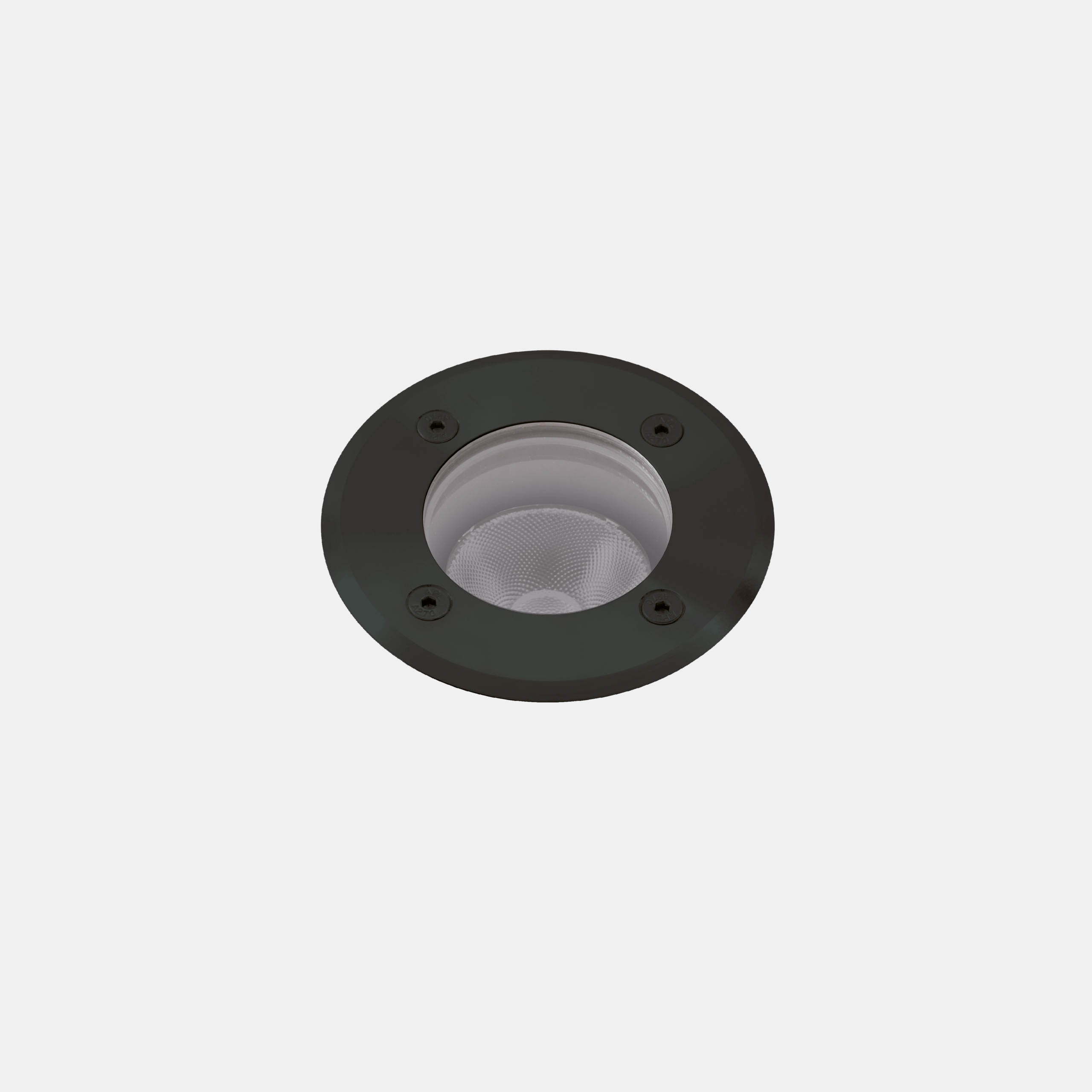

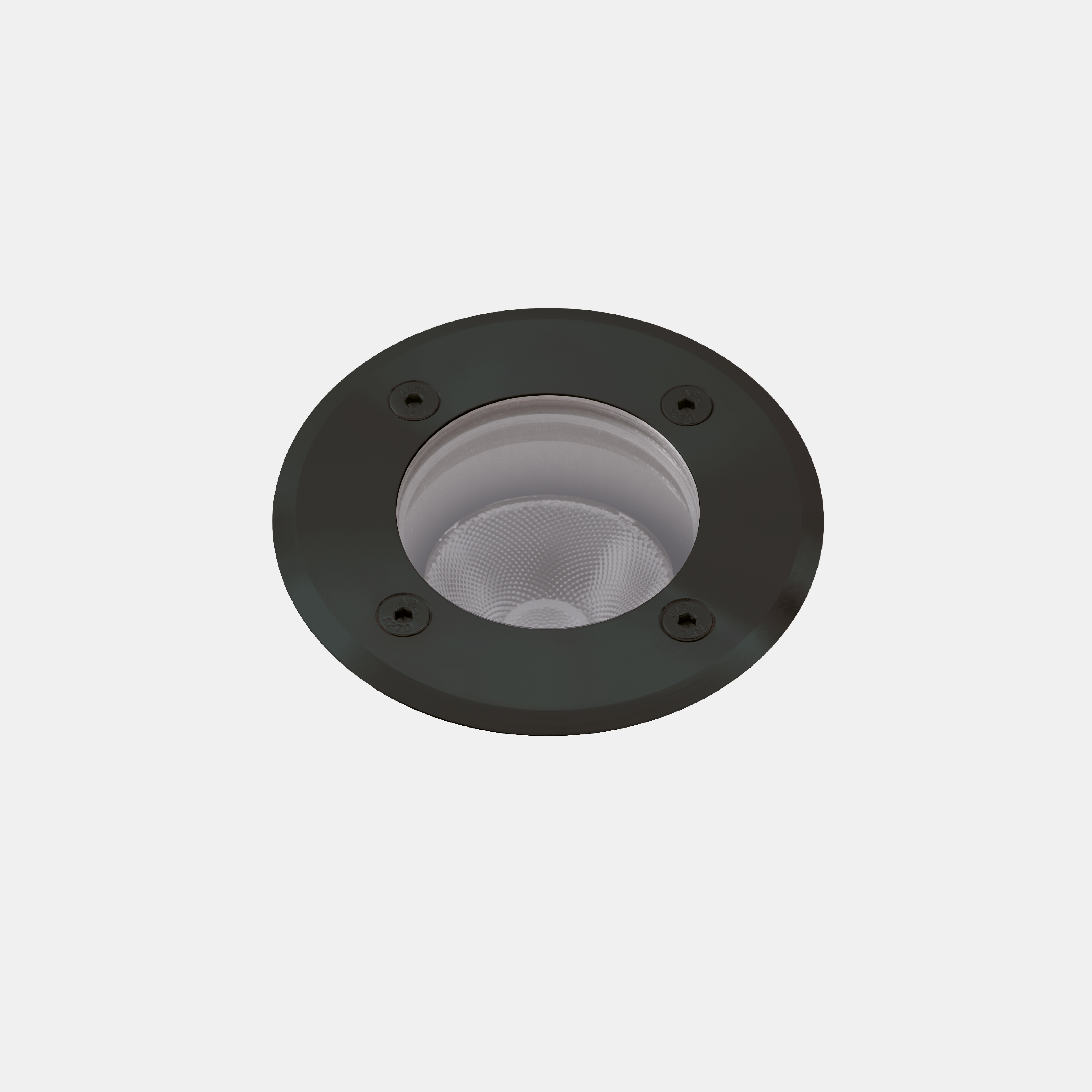

SIRO – Mod. R6

(60° medium diffusing rotosymmetric optics)

Floor/ground recessed ledad fixture, constructed from body and counter casing. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders color black. Injection-molded polycarbonate backbox black color. Black color. Extraclear tempered flat glass diffuser 6 mm thick. 60° medium diffusing rotosymmetric optics.
Categories: Led, SIRO - 7045, Architectural Outdoor, SIRO
Models: 3
Color: Matt black
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7045R627= 2700°K (CRI >80)06NL= on/off
30= 3000°K (CRI >80)
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7045R64006NL6-4000°K - CRI>80on/off669112110-177-0.65
7045R63006NL6-3000°K - CRI>80on/off648108110-177-0.65
7045R62706NL6-2700°K - CRI>80on/off618103110-177-0.65

Accessories
