art.-7050-rod-g3-g6-antracite

ROD/G3

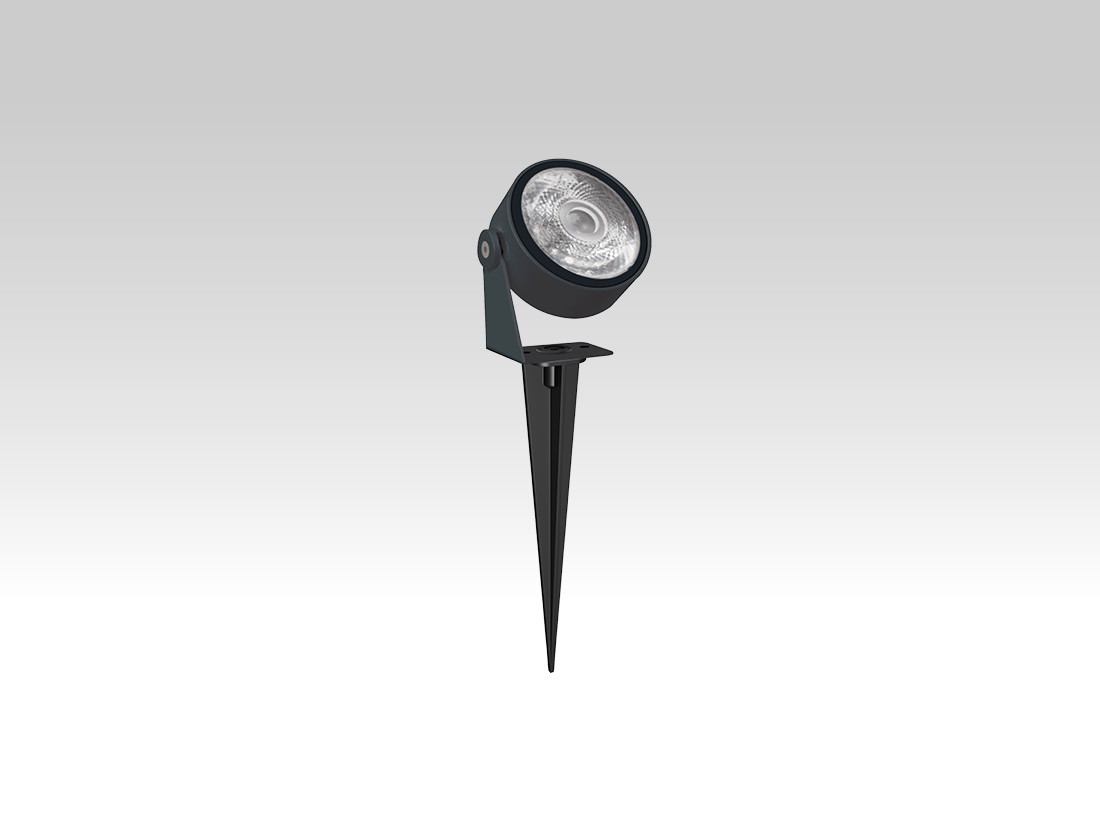

Indoor and outdoor led floodlight. Die-cast aluminum body painted with anthracite epoxy powders. AC direct 220-240V 50/60Hz led boards. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, ROD - 7050, ROD, Architectural Outdoor, art. 7050 Rod
Models: 9
Color: Anthracite
Catalogue abstract
Installation instructions

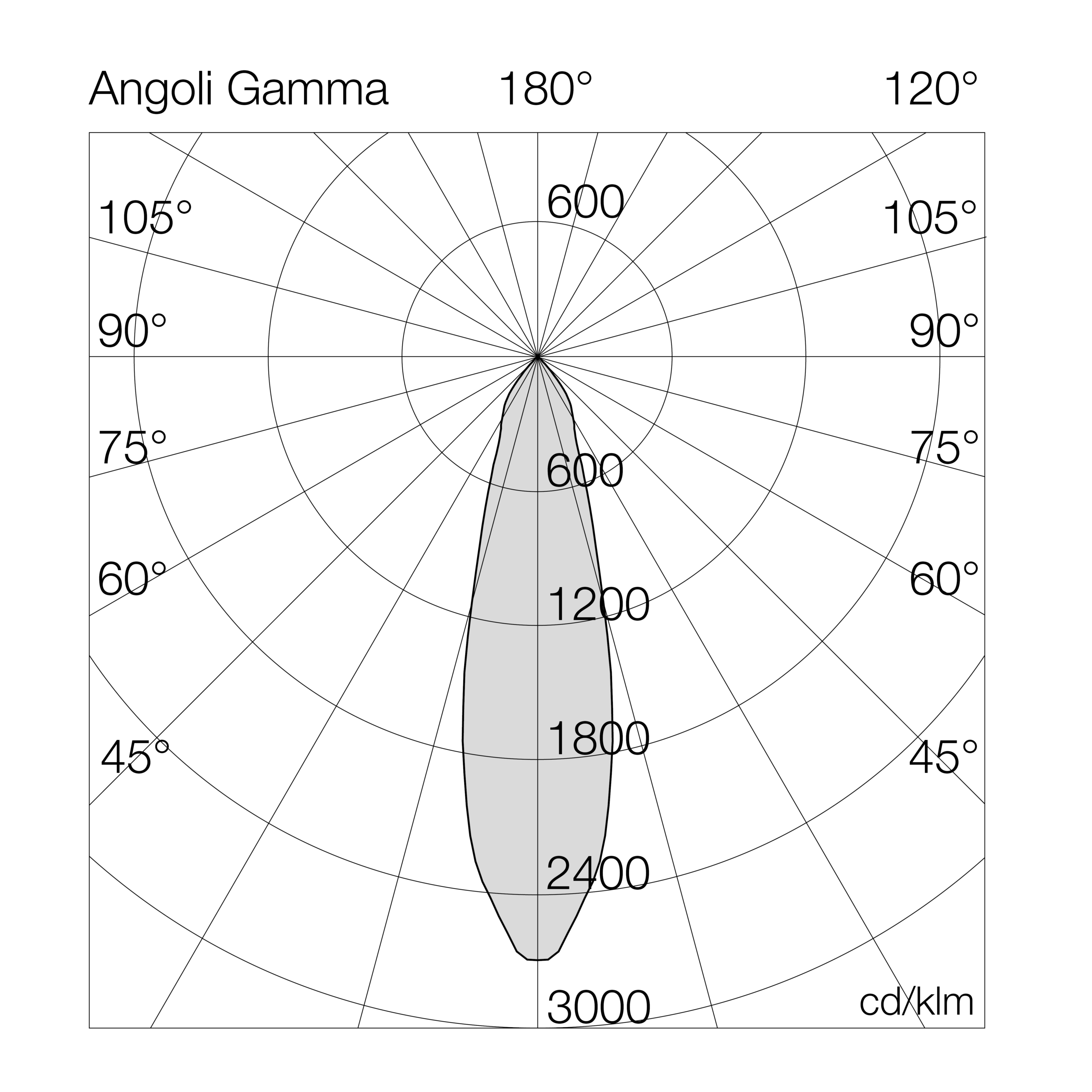

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7050G327= 2700°K (CRI >80)05NL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7050G34005NL5-4000°K - CRI>80on/off407819411060-0.35
7050G34010NL10-4000°K - CRI>80on/off814819411060-0.35
7050G34015NL15-4000°K - CRI>80on/off1221819411060-0.35
7050G33005NL5-3000°K - CRI>80on/off381769411060-0.35
7050G33010NL10-3000°K - CRI>80on/off761769411060-0.35
7050G33015NL15-3000°K - CRI>80on/off1142769411060-0.35
7050G32705NL5-2700°K - CRI>80on/off368749411060-0.35
7050G32710NL10-2700°K - CRI>80on/off737749411060-0.35
7050G32715NL15-2700°K - CRI>80on/off1105749411060-0.35

Accessories
