art.-7050-rod-g3-g6-bianco

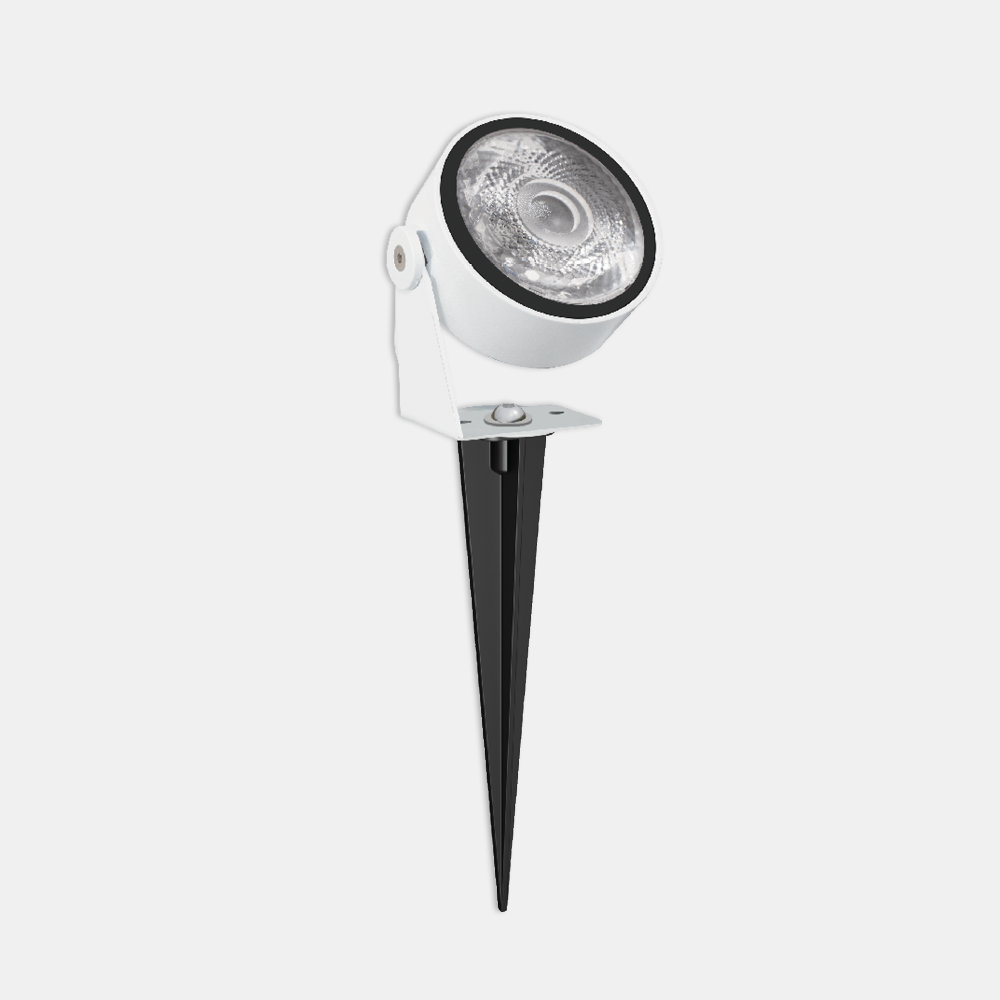

ROD/G6

Indoor and outdoor led floodlight. Die-cast aluminum body painted with matt white epoxy powders. AC direct 220-240V 50/60Hz led boards. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, ROD - 7050, ROD, Architectural Outdoor, art. 7050 Rod
Models: 9
Color: Matt white
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7050G627= 2700°K (CRI >80)05BL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7050G64005BL5-4000°K - CRI>80on/off419849411060-0.35
7050G64010BL10-4000°K - CRI>80on/off839849411060-0.35
7050G64015BL15-4000°K - CRI>80on/off1258849411060-0.35
7050G63005BL5-3000°K - CRI>80on/off392789411060-0.35
7050G63010BL10-3000°K - CRI>80on/off784789411060-0.35
7050G63015BL15-3000°K - CRI>80on/off1176789411060-0.35
7050G62705BL5-2700°K - CRI>80on/off379769411060-0.35
7050G62710BL10-2700°K - CRI>80on/off759769411060-0.35
7050G62715BL15-2700°K - CRI>80on/off1138769411060-0.35

Accessories

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
