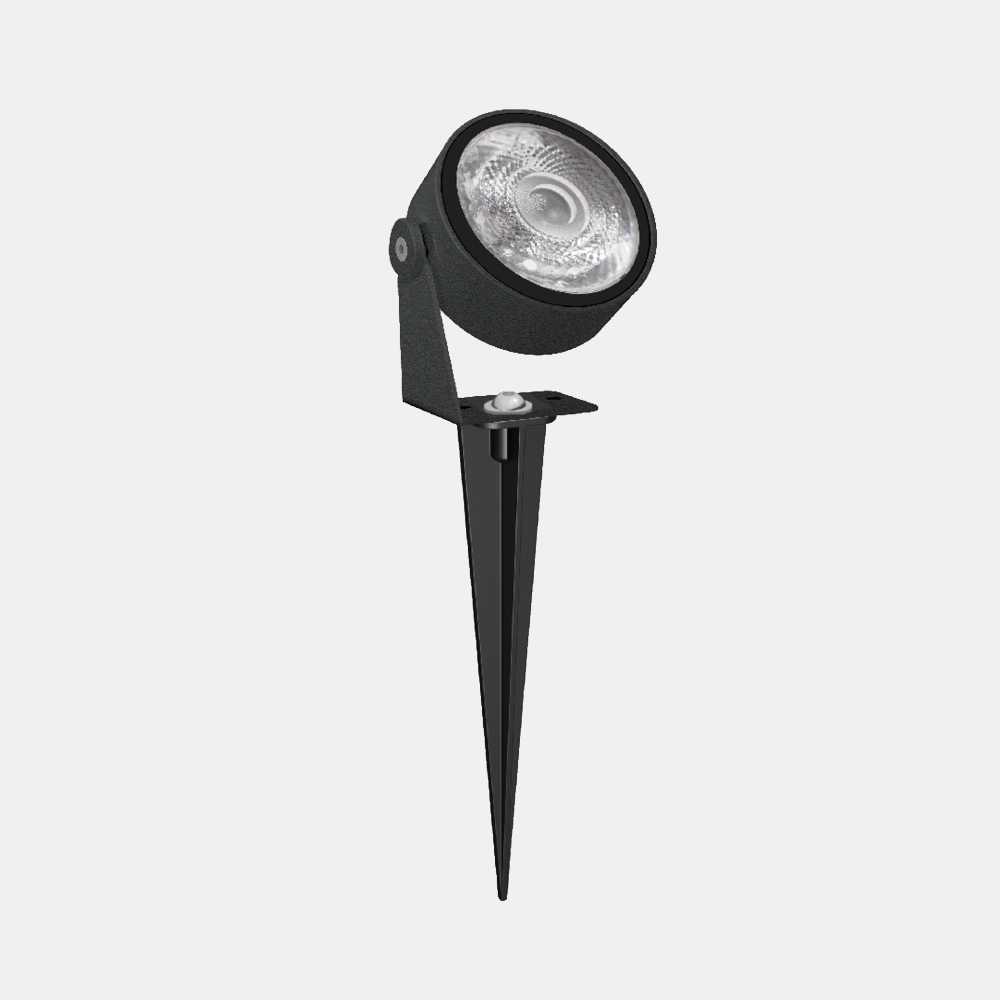

ROD – Mod. G6

(60° medium diffusing rotosymmetric optics)

Outdoor and indoor spot led projector, suitable for ground installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color anthratice. Extra-clear tempered flat glass diffuser 4 mm thick. Optics with PMMA lens with high flux efficiency, anti-glare and anti-reflection, 60° medium diffusing rotosymmetric optics. Version (G6) with technopolymer spike included for direct ground installation.
Categories: Led, ROD, ROD - 7050, Architectural Outdoor, ROD
Models: 9
Color: Anthracite
Catalogue abstract
Installation instructions

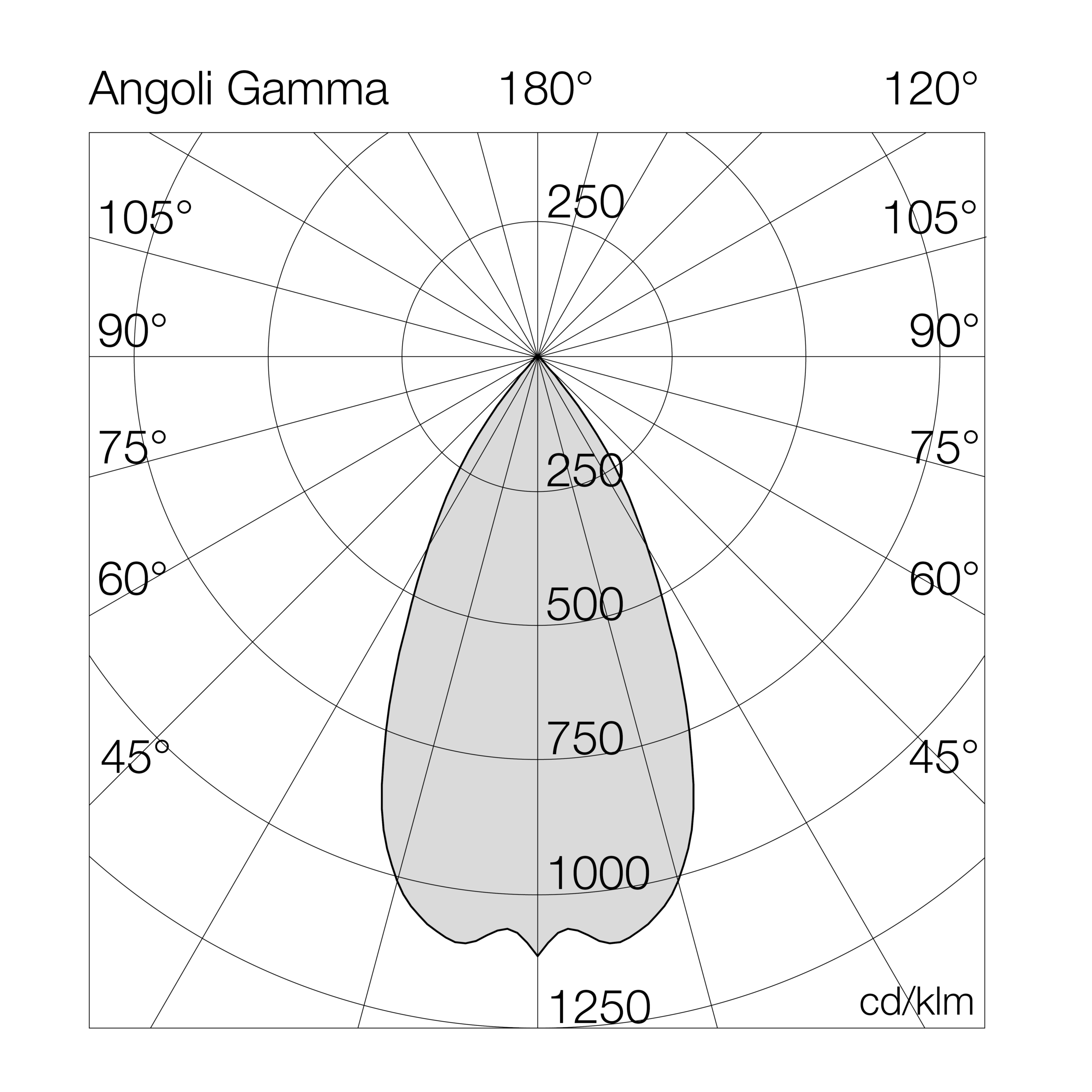

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7050G627= 2700°K (CRI >80)05NL= on/off
30= 3000°K (CRI >80)10
40= 4000°K (CRI >80)15

Models

W tot.
°K - CRI
Options

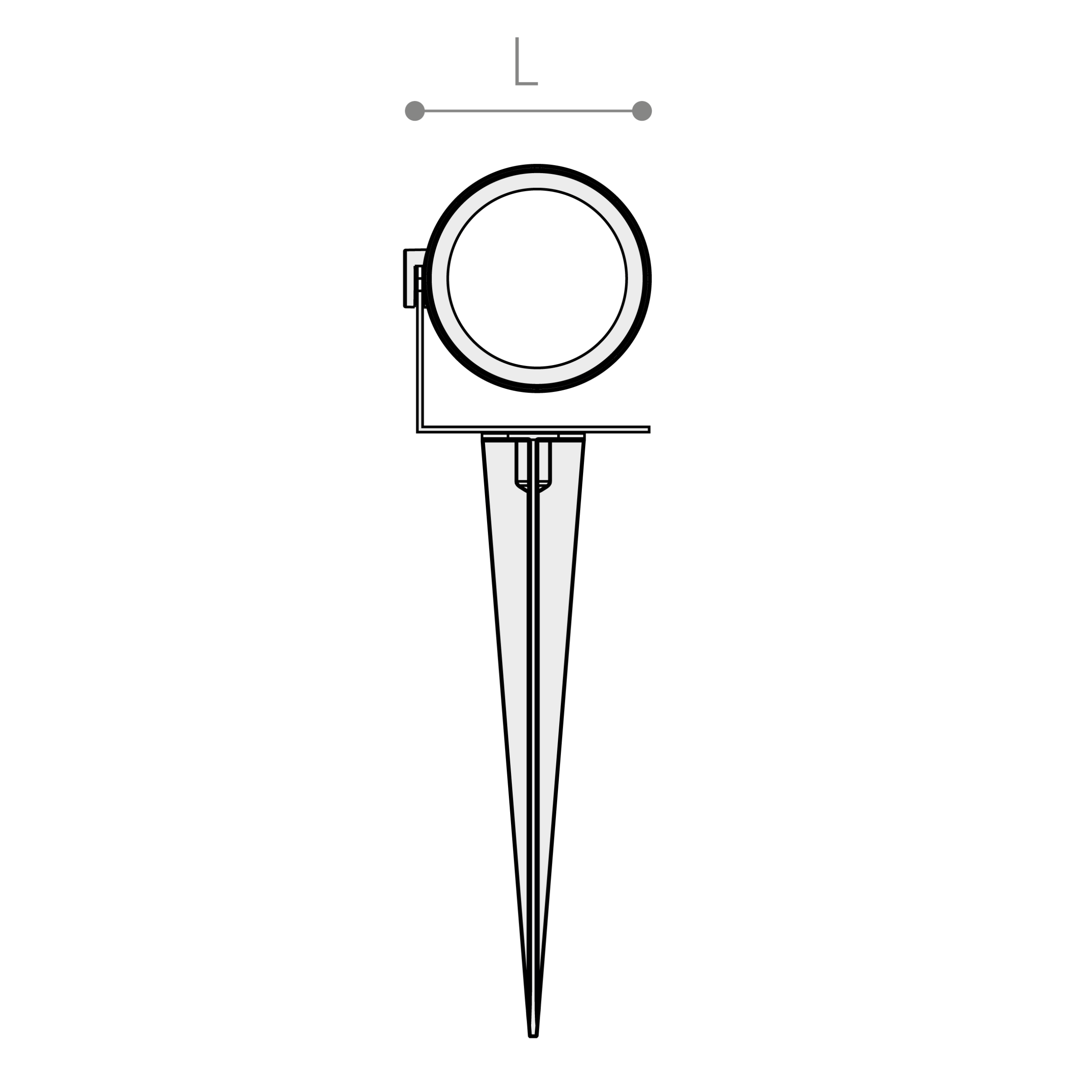

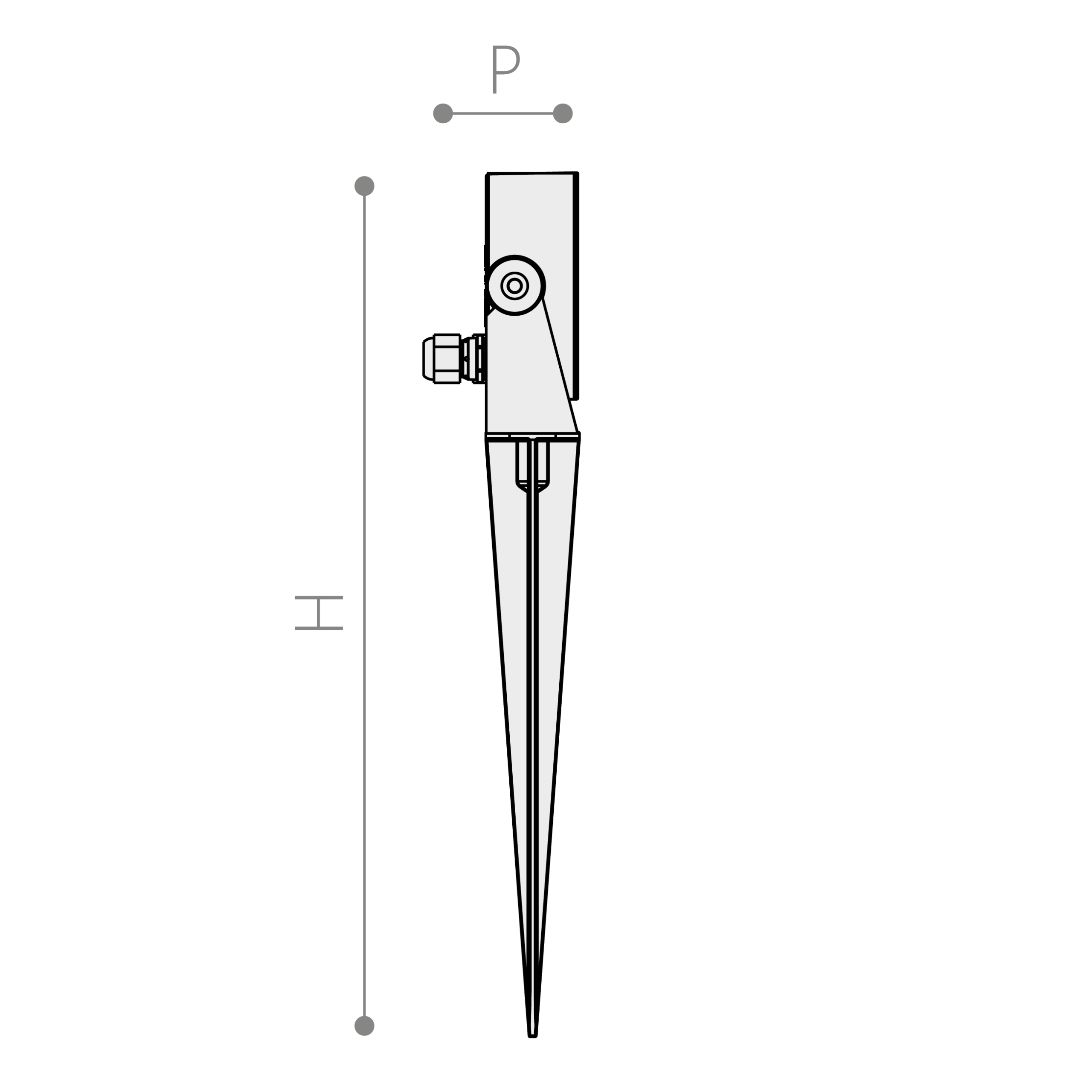

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7050G64005NL5-4000°K - CRI>80on/off419849411060-0.35
7050G64010NL10-4000°K - CRI>80on/off839849411060-0.35
7050G64015NL15-4000°K - CRI>80on/off1258849411060-0.35
7050G63005NL5-3000°K - CRI>80on/off392789411060-0.35
7050G63010NL10-3000°K - CRI>80on/off784789411060-0.35
7050G63015NL15-3000°K - CRI>80on/off1176789411060-0.35
7050G62705NL5-2700°K - CRI>80on/off379769411060-0.35
7050G62710NL10-2700°K - CRI>80on/off759769411060-0.35
7050G62715NL15-2700°K - CRI>80on/off1138769411060-0.35

Accessories
