art.-7052-elos-m3-m6-corten

ELOS/M3

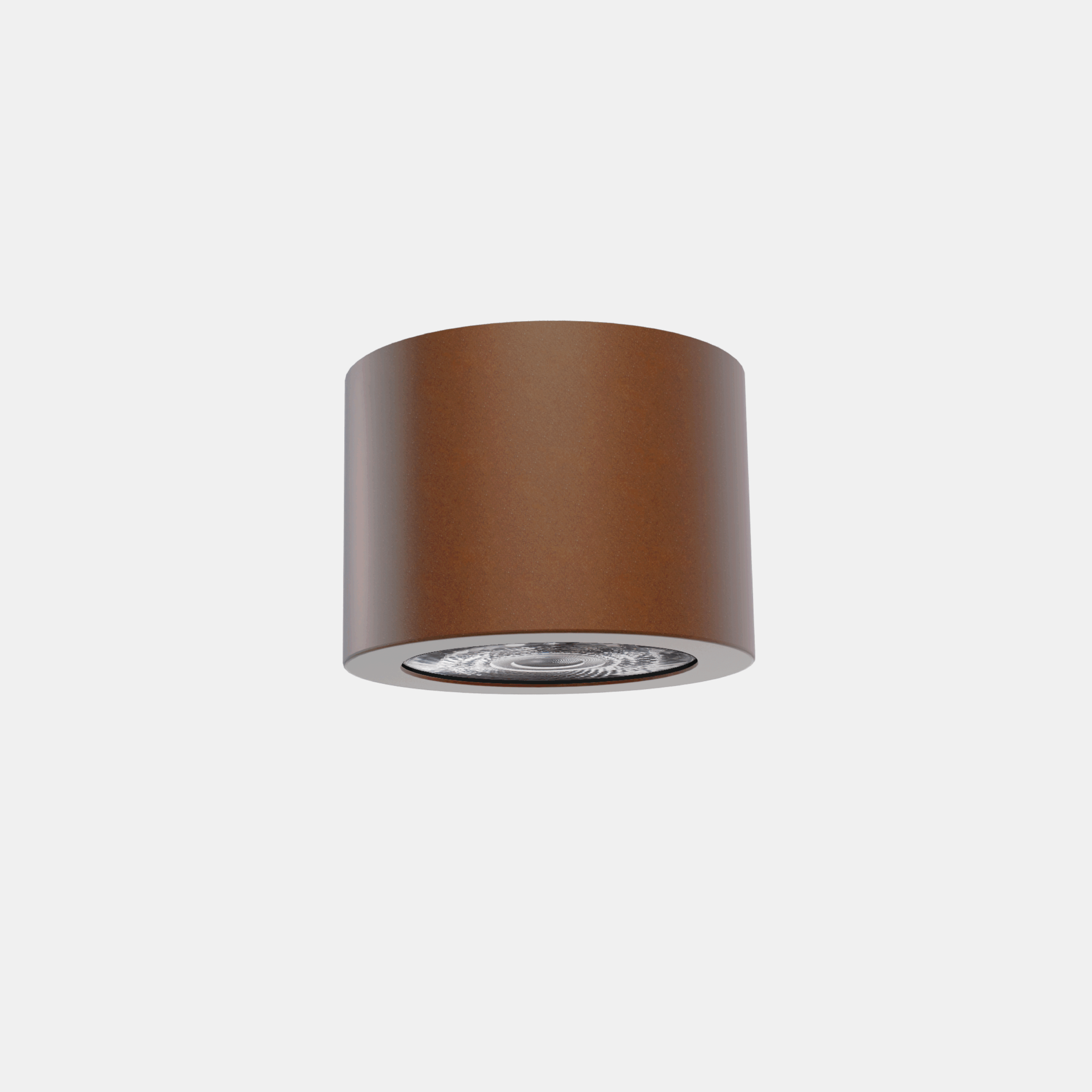

Outdoor and indoor LED fixture suitable for ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color corten. Extra-clear tempered flat glass diffuser 4 mm thick. Available in two types of PMMA optics with high flux efficiency, anti-glare and anti-reflection: spot optics 36° and medium diffusing optics 60°.
Categories: Led, ELOS - 7052, Architectural Outdoor, ELOS
Models: 9
Color: Corten
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7052M327= 2700°K (CRI >80)05CL= on/off
30= 3000°K (CRI >80)07
40= 4000°K (CRI >80)10

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7052M34005CL5-4000°K - CRI>80on/off40781109-78-0.50
7052M34007CL7-4000°K - CRI>80on/off57081109-78-0.50
7052M34010CL10-4000°K - CRI>80on/off81481109-78-0.50
7052M33005CL5-3000°K - CRI>80on/off38176109-78-0.50
7052M33007CL7-3000°K - CRI>80on/off53376109-78-0.50
7052M33010CL10-3000°K - CRI>80on/off76176109-78-0.50
7052M32705CL5-2700°K - CRI>80on/off36874109-78-0.50
7052M32707CL7-2700°K - CRI>80on/off51674109-78-0.50
7052M32710CL10-2700°K - CRI>80on/off73774109-78-0.50

Accessories
