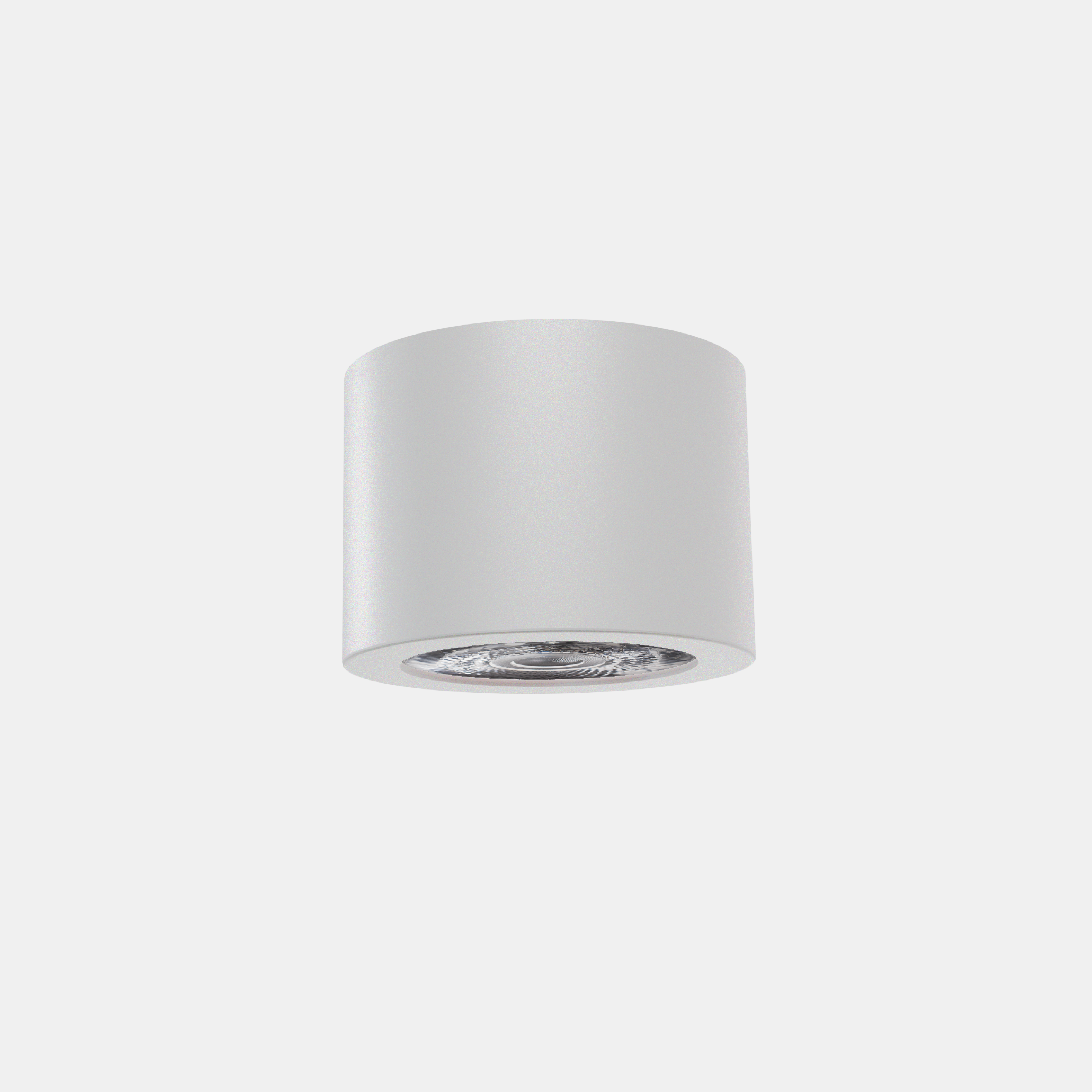

ELOS – Mod. M3

(36° medium rotosymmetric optics)

Outdoor and indoor LED fixture suitable for ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color silver. Extra-clear tempered flat glass diffuser 4 mm thick. 36° medium rotosymmetric optics.

Categories: Led, ELOS, Architectural Outdoor, ELOS

Models: 9

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7052	M3	27	= 2700°K (CRI >80)	05	SL	= on/off
		30	= 3000°K (CRI >80)	07
		40	= 4000°K (CRI >80)	10

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7052M34005SL	5	-	4000°K - CRI ≥80	on/off	407	81	109	-	78	-	0.50
7052M34007SL	7	-	4000°K - CRI ≥80	on/off	570	81	109	-	78	-	0.50
7052M34010SL	10	-	4000°K - CRI ≥80	on/off	814	81	109	-	78	-	0.50
7052M33005SL	5	-	3000°K - CRI ≥80	on/off	381	76	109	-	78	-	0.50
7052M33007SL	7	-	3000°K - CRI ≥80	on/off	533	76	109	-	78	-	0.50
7052M33010SL	10	-	3000°K - CRI ≥80	on/off	761	76	109	-	78	-	0.50
7052M32705SL	5	-	2700°K - CRI ≥80	on/off	368	74	109	-	78	-	0.50
7052M32707SL	7	-	2700°K - CRI ≥80	on/off	516	74	109	-	78	-	0.50
7052M32710SL	10	-	2700°K - CRI ≥80	on/off	737	74	109	-	78	-	0.50
