art.-7052-elos-m3-m6-grigio

ELOS/M6

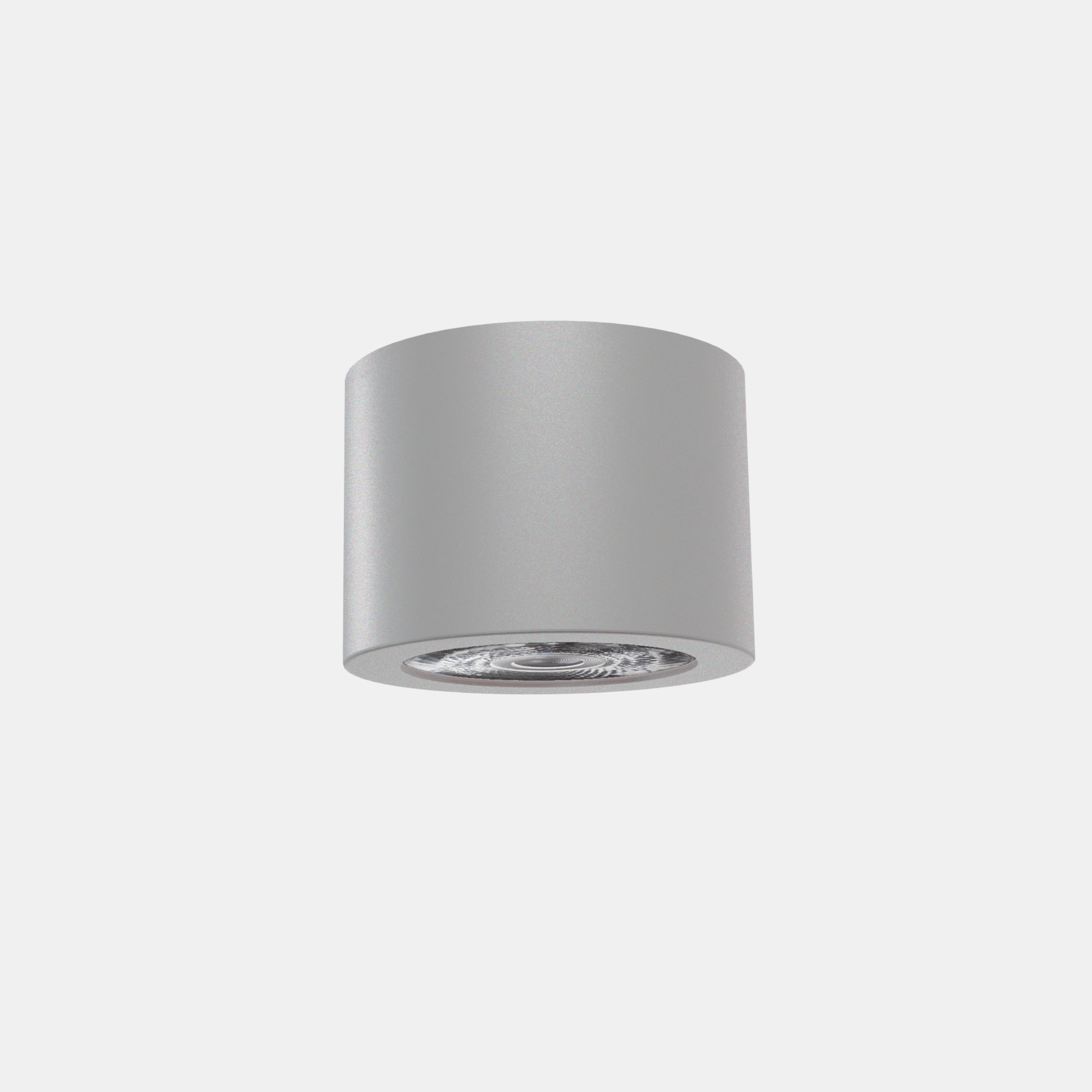

Outdoor and indoor LED fixture suitable for ceiling installation. Die-cast aluminum body painted with anticorrosion polyester thermosetting powders, color gray. Extra-clear tempered flat glass diffuser 4 mm thick. Available in two types of PMMA optics with high flux efficiency, anti-glare and anti-reflection: spot optics 36° and medium diffusing optics 60°.
Categories: Led, ELOS - 7052, Architectural Outdoor, art. 7052 Elos
Models: 9
Color: Matt grey
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7052M627= 2700°K (CRI >80)05GL= on/off
30= 3000°K (CRI >80)07
40= 4000°K (CRI >80)10

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7052M64005GL5-4000°K - CRI>80on/off41984109-78-0.50
7052M64007GL7-4000°K - CRI>80on/off58784109-78-0.50
7052M64010GL10-4000°K - CRI>80on/off83984109-78-0.50
7052M63005GL5-3000°K - CRI>80on/off39278109-78-0.50
7052M63007GL7-3000°K - CRI>80on/off54978109-78-0.50
7052M63010GL10-3000°K - CRI>80on/off78478109-78-0.50
7052M62705GL5-2700°K - CRI>80on/off37976109-78-0.50
7052M62707GL7-2700°K - CRI>80on/off53176109-78-0.50
7052M62710GL10-2700°K - CRI>80on/off75976109-78-0.50

Accessories
