art.-7054-milo-m2-b2-m3-b3-m6-b6-bianco

MILO – Mod. B2

(120° dual emission optics)

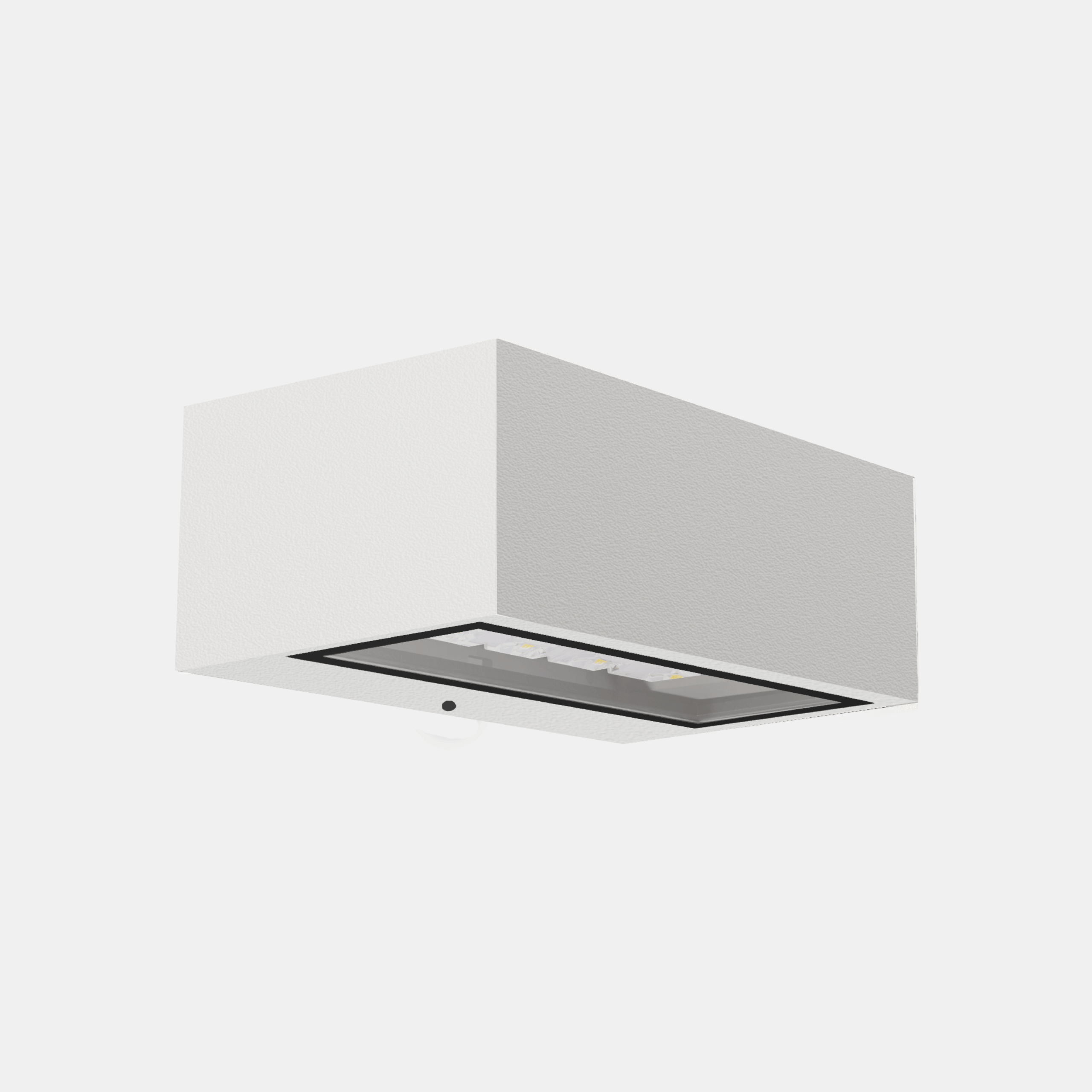

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 120° dual emission optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 30
Color: Matt white
Catalogue abstract
Installation instructions

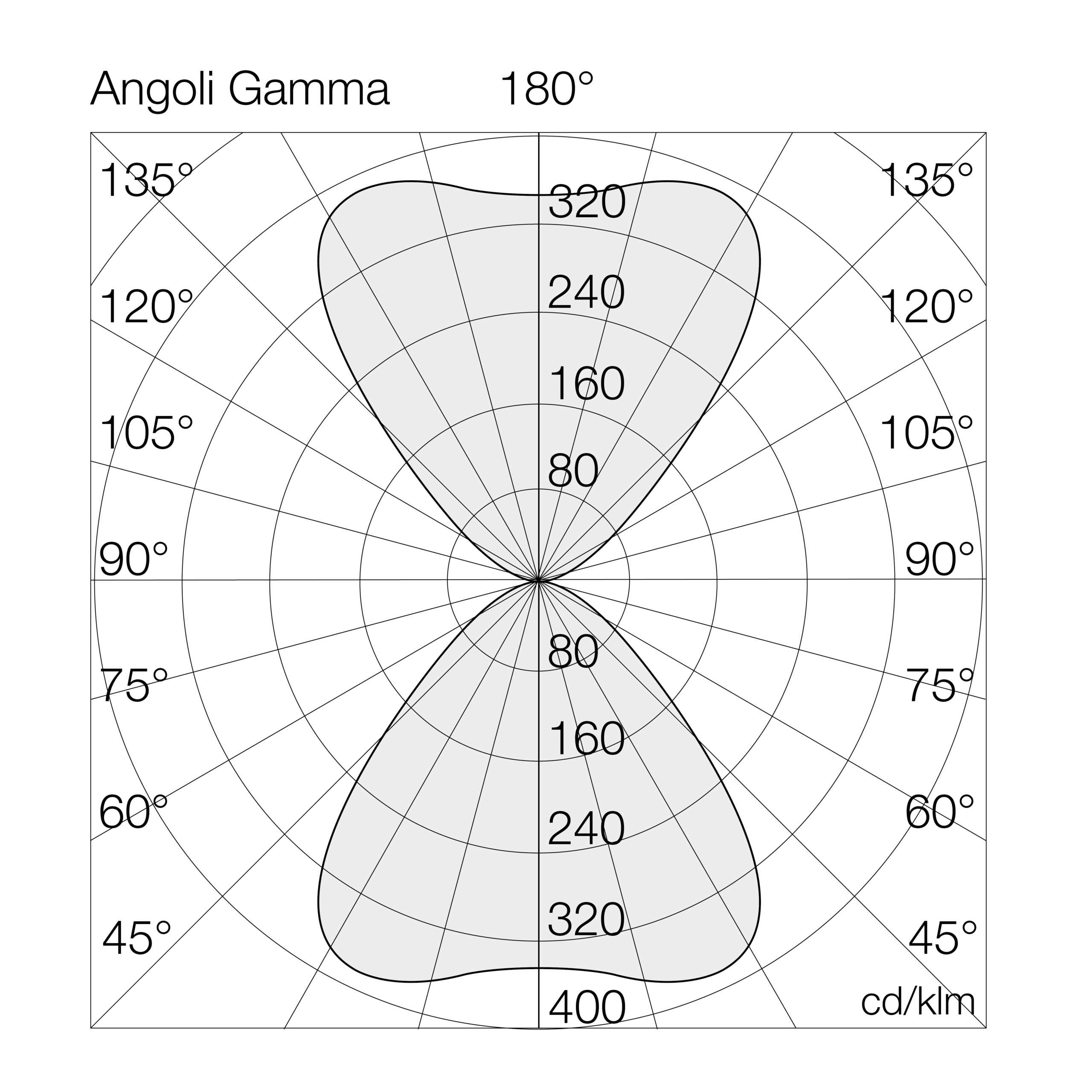

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054B227= 2700°K (CRI >80)09BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23
27

Models

W tot.
°K - CRI
Options

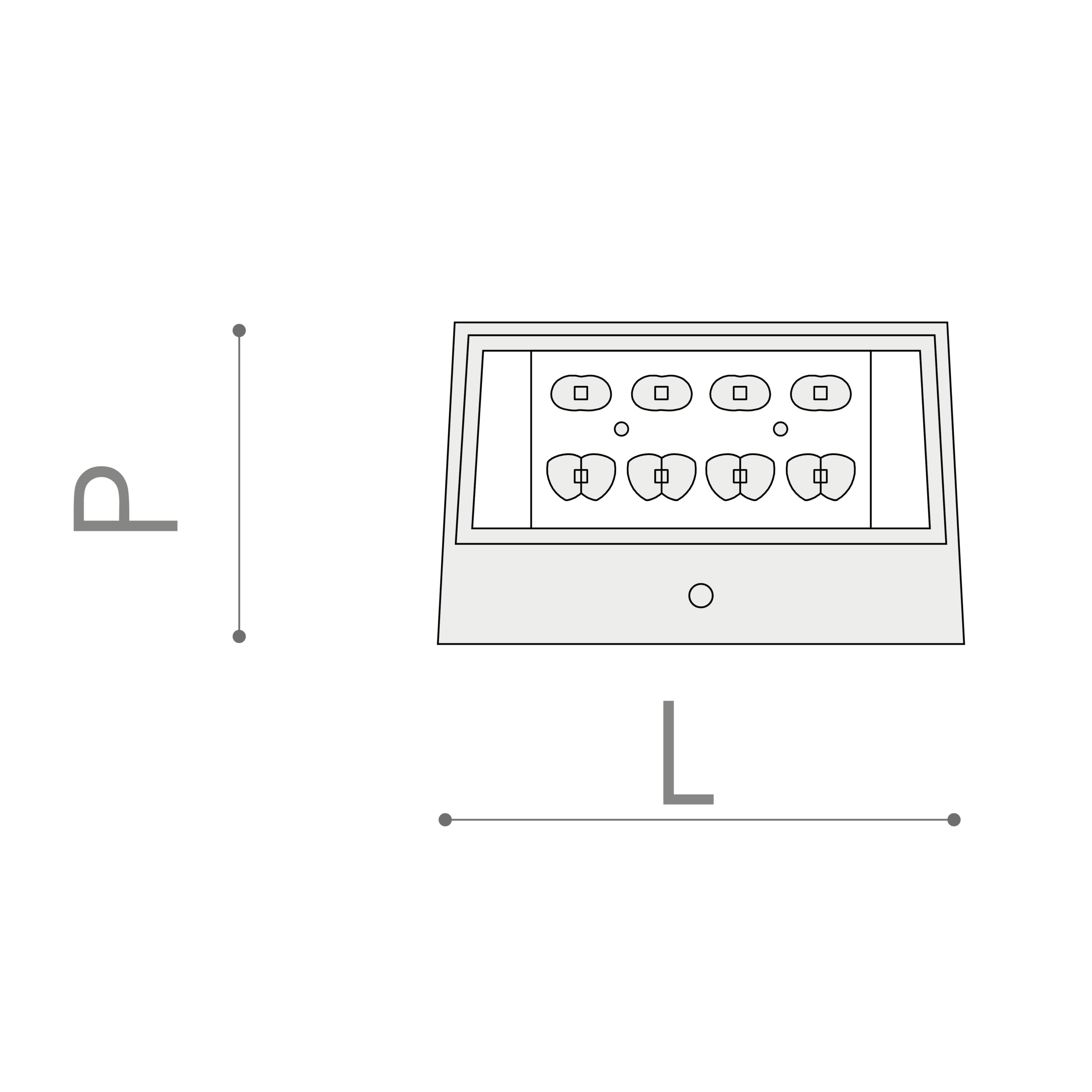

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054B24009BL9-4000°K - CRI>80on/off136815218011270-0.95
7054B24015BL15-4000°K - CRI>80on/off202813518011270-0.95
7054B24019BL19-4000°K - CRI>80on/off267214118011270-0.95
7054B24023BL23-4000°K - CRI>80on/off298813018011270-0.95
7054B24027BL27-4000°K - CRI>80on/off345312818011270-0.95
7054B23009BL9-3000°K - CRI>80on/off129914418011270-0.95
7054B23015BL15-3000°K - CRI>80on/off192612818011270-0.95
7054B23019BL19-3000°K - CRI>80on/off253713418011270-0.95
7054B23023BL23-3000°K - CRI>80on/off283712318011270-0.95
7054B23027BL27-3000°K - CRI>80on/off327912118011270-0.95
7054B22709BL9-2700°K - CRI>80on/off125413918011270-0.95
7054B22715BL15-2700°K - CRI>80on/off185912418011270-0.95
7054B22719BL19-2700°K - CRI>80on/off244912918011270-0.95
7054B22723BL23-2700°K - CRI>80on/off273911918011270-0.95
7054B22727BL27-2700°K - CRI>80on/off316511718011270-0.95
7054B24009BD9-4000°K - CRI>80dali 2 / dali 2 push136815218011270-0.95
7054B24015BD15-4000°K - CRI>80dali 2 / dali 2 push202813518011270-0.95
7054B24019BD19-4000°K - CRI>80dali 2 / dali 2 push267214118011270-0.95
7054B24023BD23-4000°K - CRI>80dali 2 / dali 2 push298813018011270-0.95
7054B24027BD27-4000°K - CRI>80dali 2 / dali 2 push345312818011270-0.95
