art.-7054-milo-m2-b2-m3-b3-m6-b6-grigio

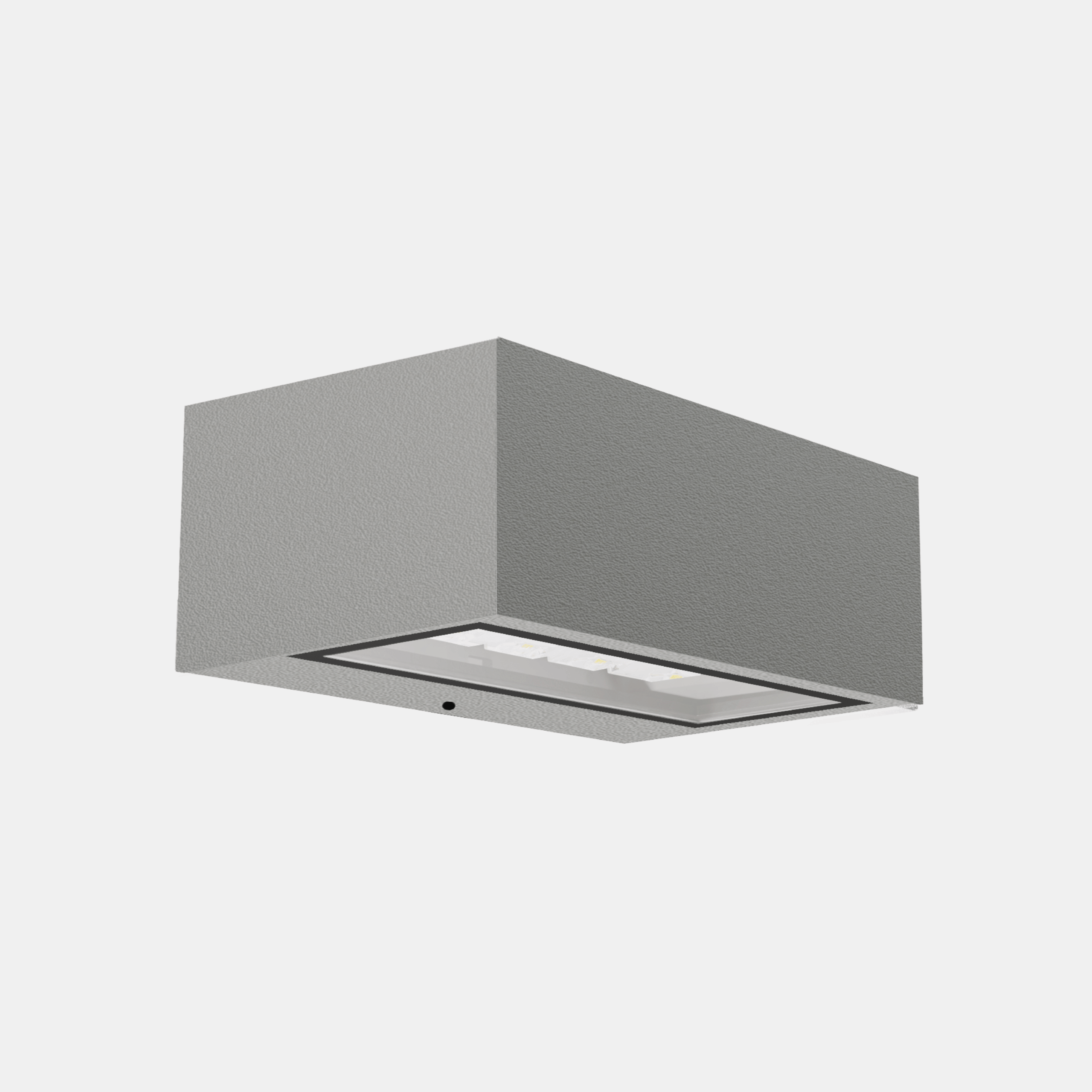

MILO – Mod. B2

(120° dual emission optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color grey. Flat tempered glass diffuser 4 mm thick. 120° dual emission optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 30
Color: Matt grey
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054B227= 2700°K (CRI >80)09GL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23
27

Models

W tot.
°K - CRI
Options

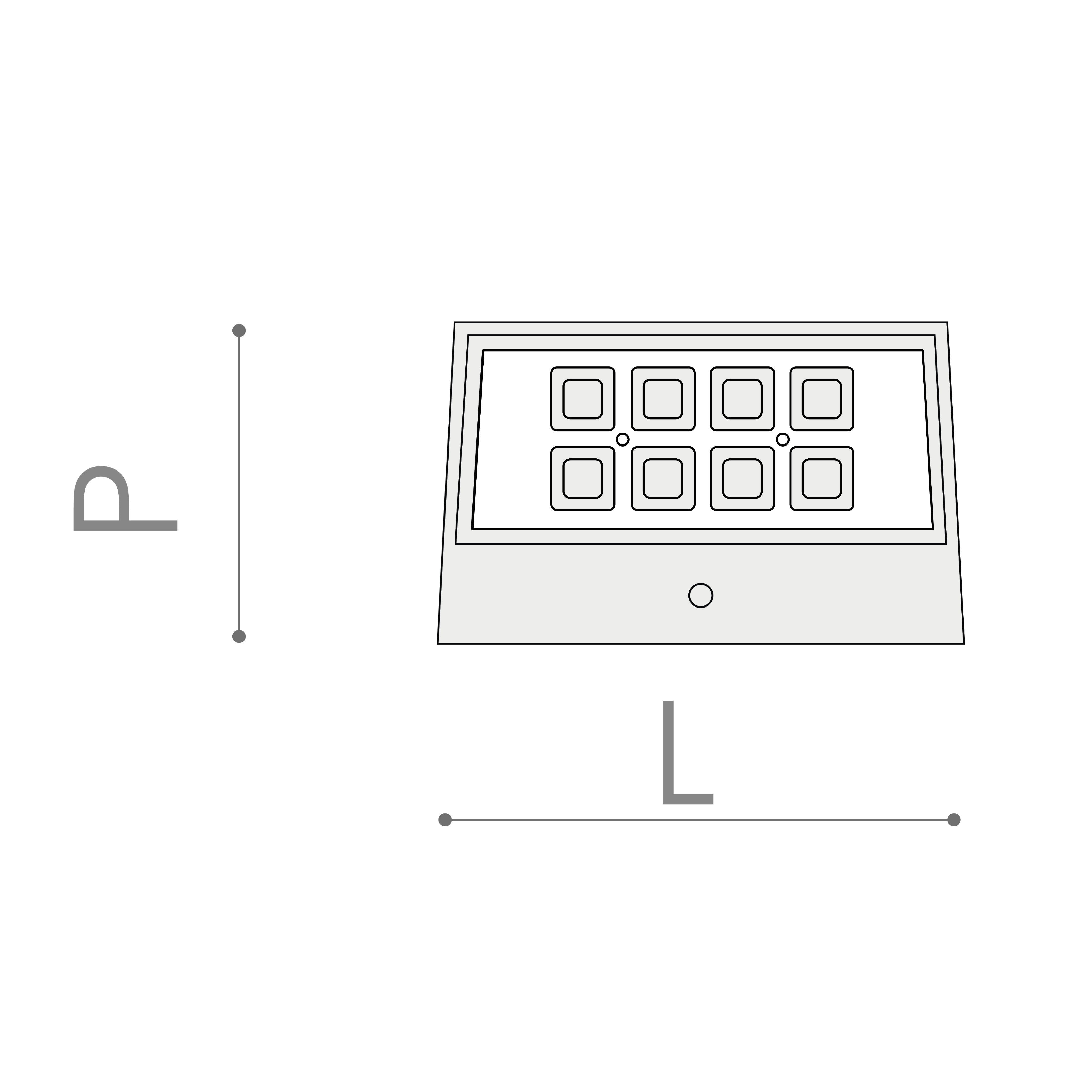

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054B24009GL9-4000°K - CRI>80on/off136815218011270-0.95
7054B24015GL15-4000°K - CRI>80on/off202813518011270-0.95
7054B24019GL19-4000°K - CRI>80on/off267214118011270-0.95
7054B24023GL23-4000°K - CRI>80on/off298813018011270-0.95
7054B24027GL27-4000°K - CRI>80on/off345312818011270-0.95
7054B23009GL9-3000°K - CRI>80on/off129914418011270-0.95
7054B23015GL15-3000°K - CRI>80on/off192612818011270-0.95
7054B23019GL19-3000°K - CRI>80on/off253713418011270-0.95
7054B23023GL23-3000°K - CRI>80on/off283712318011270-0.95
7054B23027GL27-3000°K - CRI>80on/off327912118011270-0.95
7054B22709GL9-2700°K - CRI>80on/off125413918011270-0.95
7054B22715GL15-2700°K - CRI>80on/off185912418011270-0.95
7054B22719GL19-2700°K - CRI>80on/off244912918011270-0.95
7054B22723GL23-2700°K - CRI>80on/off273911918011270-0.95
7054B22727GL27-2700°K - CRI>80on/off316511718011270-0.95
7054B24009GD9-4000°K - CRI>80dali 2 / dali 2 push136815218011270-0.95
7054B24015GD15-4000°K - CRI>80dali 2 / dali 2 push202813518011270-0.95
7054B24019GD19-4000°K - CRI>80dali 2 / dali 2 push267214118011270-0.95
7054B24023GD23-4000°K - CRI>80dali 2 / dali 2 push298813018011270-0.95
7054B24027GD27-4000°K - CRI>80dali 2 / dali 2 push345312818011270-0.95
