art.-7054-milo-m2-b2-m3-b3-m6-b6-bianco

MILO – Mod. B3

(30° dual emission optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 30° dual emission optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 30
Color: Matt white
Catalogue abstract
Installation instructions

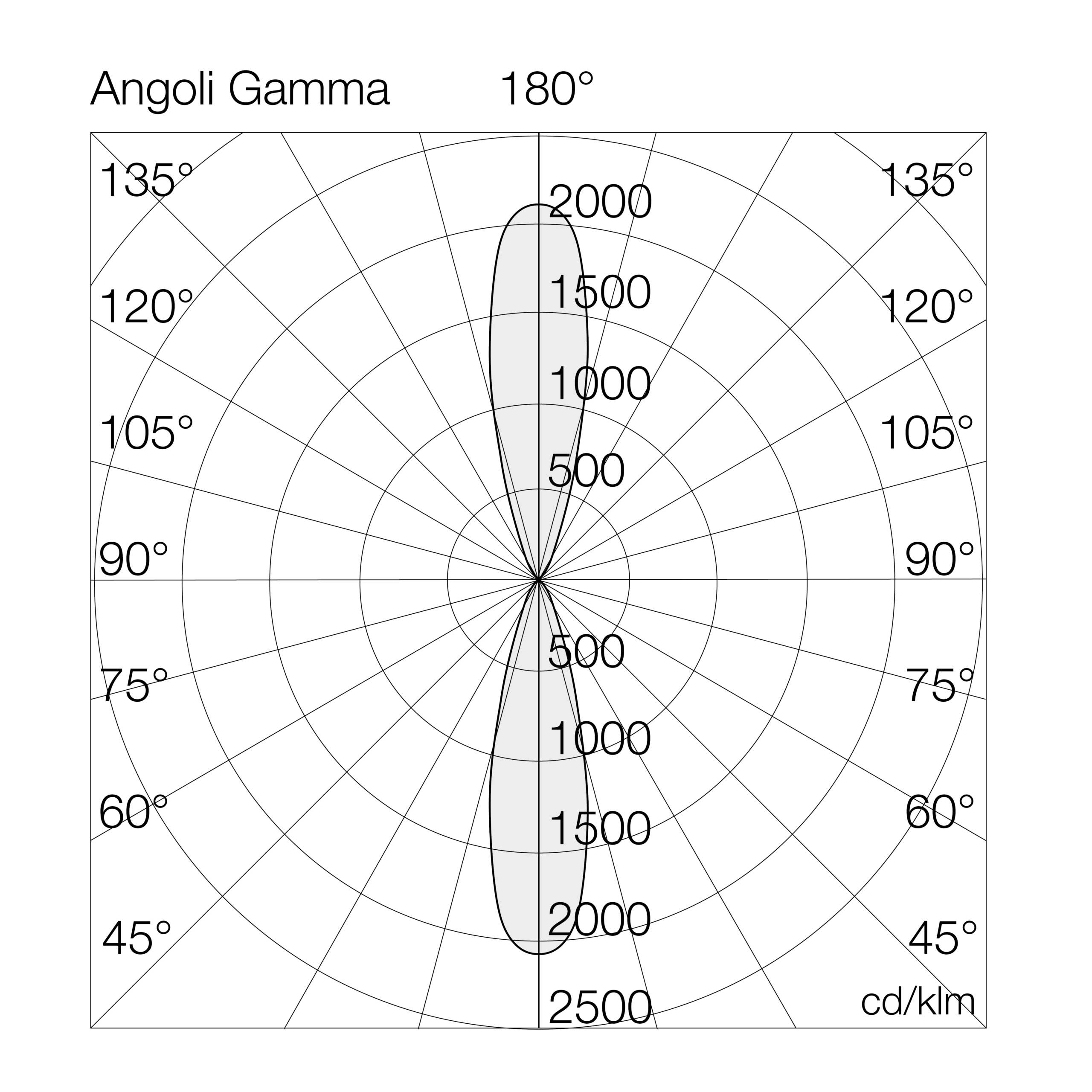

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054B327= 2700°K (CRI >80)09BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23
27

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054B34009BL9-4000°K - CRI>80on/off133414818011270-0.95
7054B34015BL15-4000°K - CRI>80on/off197813218011270-0.95
7054B34019BL19-4000°K - CRI>80on/off260713718011270-0.95
7054B34023BL23-4000°K - CRI>80on/off291512718011270-0.95
7054B34027BL27-4000°K - CRI>80on/off336912518011270-0.95
7054B33009BL9-3000°K - CRI>80on/off126714118011270-0.95
7054B33015BL15-3000°K - CRI>80on/off187812518011270-0.95
7054B33019BL19-3000°K - CRI>80on/off247513018011270-0.95
7054B33023BL23-3000°K - CRI>80on/off276812018011270-0.95
7054B33027BL27-3000°K - CRI>80on/off319911818011270-0.95
7054B32709BL9-2700°K - CRI>80on/off122313618011270-0.95
7054B32715BL15-2700°K - CRI>80on/off181312118011270-0.95
7054B32719BL19-2700°K - CRI>80on/off238912618011270-0.95
7054B32723BL23-2700°K - CRI>80on/off267211618011270-0.95
7054B32727BL27-2700°K - CRI>80on/off308811418011270-0.95
7054B34009BD9-4000°K - CRI>80dali 2 / dali 2 push133414818011270-0.95
7054B34015BD15-4000°K - CRI>80dali 2 / dali 2 push197813218011270-0.95
7054B34019BD19-4000°K - CRI>80dali 2 / dali 2 push260713718011270-0.95
7054B34023BD23-4000°K - CRI>80dali 2 / dali 2 push291512718011270-0.95
7054B34027BD27-4000°K - CRI>80dali 2 / dali 2 push336912518011270-0.95
