art.-7054-milo-m2-b2-m3-b3-m6-b6-bianco

MILO – Mod. B6

(60° dual emission optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 60° dual emission optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 30
Color: Matt white
Catalogue abstract
Installation instructions

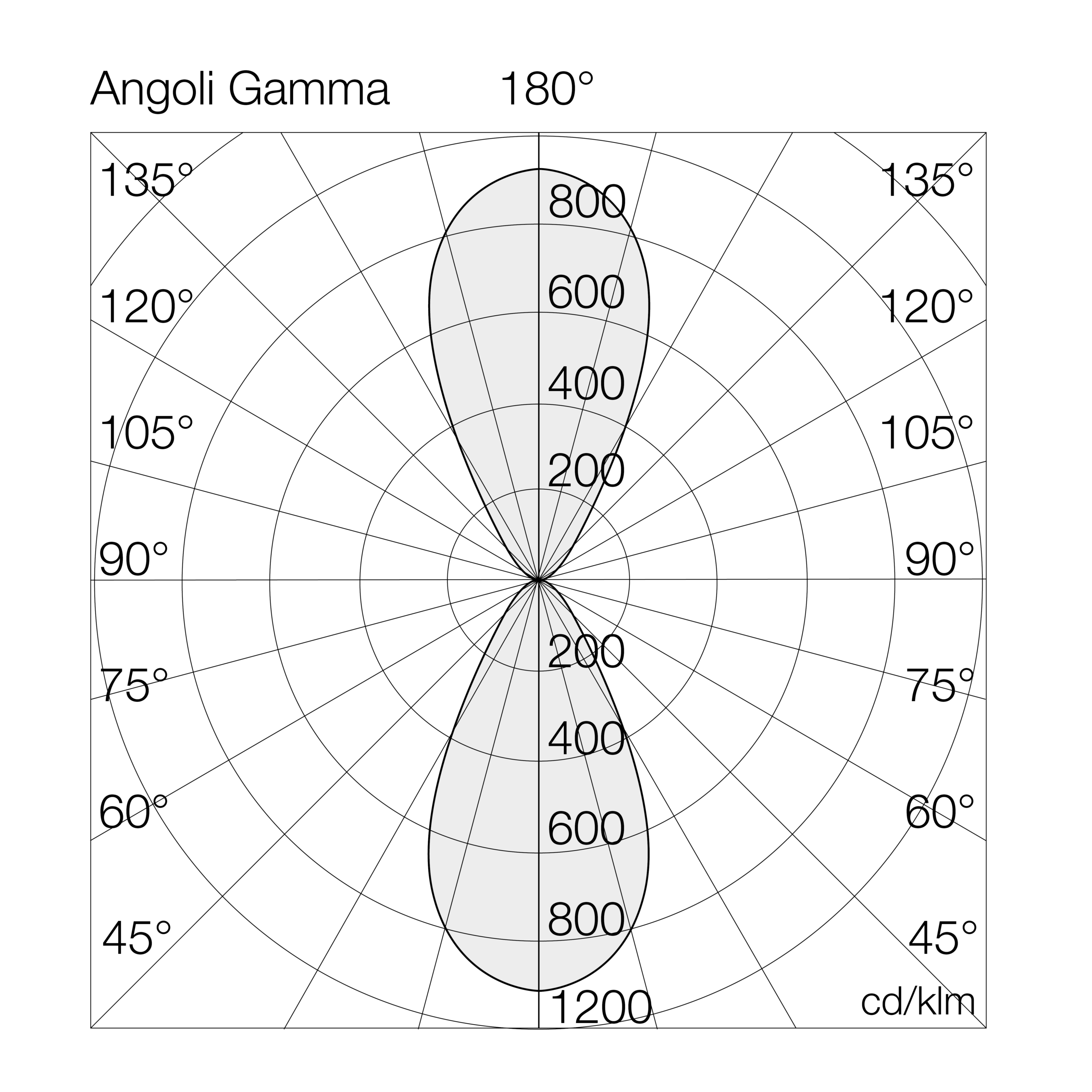

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054B627= 2700°K (CRI >80)09BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23
27

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054B64009BL9-4000°K - CRI>80on/off135115018011270-0.95
7054B64015BL15-4000°K - CRI>80on/off200313418011270-0.95
7054B64019BL19-4000°K - CRI>80on/off264013918011270-0.95
7054B64023BL23-4000°K - CRI>80on/off295212818011270-0.95
7054B64027BL27-4000°K - CRI>80on/off341112618011270-0.95
7054B63009BL9-3000°K - CRI>80on/off128314318011270-0.95
7054B63015BL15-3000°K - CRI>80on/off190212718011270-0.95
7054B63019BL19-3000°K - CRI>80on/off250713218011270-0.95
7054B63023BL23-3000°K - CRI>80on/off280312218011270-0.95
7054B63027BL27-3000°K - CRI>80on/off323912018011270-0.95
7054B62709BL9-2700°K - CRI>80on/off123813818011270-0.95
7054B62715BL15-2700°K - CRI>80on/off183612218011270-0.95
7054B62719BL19-2700°K - CRI>80on/off242012718011270-0.95
7054B62723BL23-2700°K - CRI>80on/off270611818011270-0.95
7054B62727BL27-2700°K - CRI>80on/off312611618011270-0.95
7054B64009BD9-4000°K - CRI>80dali 2 / dali 2 push135115018011270-0.95
7054B64015BD15-4000°K - CRI>80dali 2 / dali 2 push200313418011270-0.95
7054B64019BD19-4000°K - CRI>80dali 2 / dali 2 push264013918011270-0.95
7054B64023BD23-4000°K - CRI>80dali 2 / dali 2 push295212818011270-0.95
7054B64027BD27-4000°K - CRI>80dali 2 / dali 2 push341112618011270-0.95

TEC-MAR is aimed at constant research and development of new technologies, quality materials, enhanced production processes, in accordance with latest trends in design and technology.
