MILO – Mod. BD

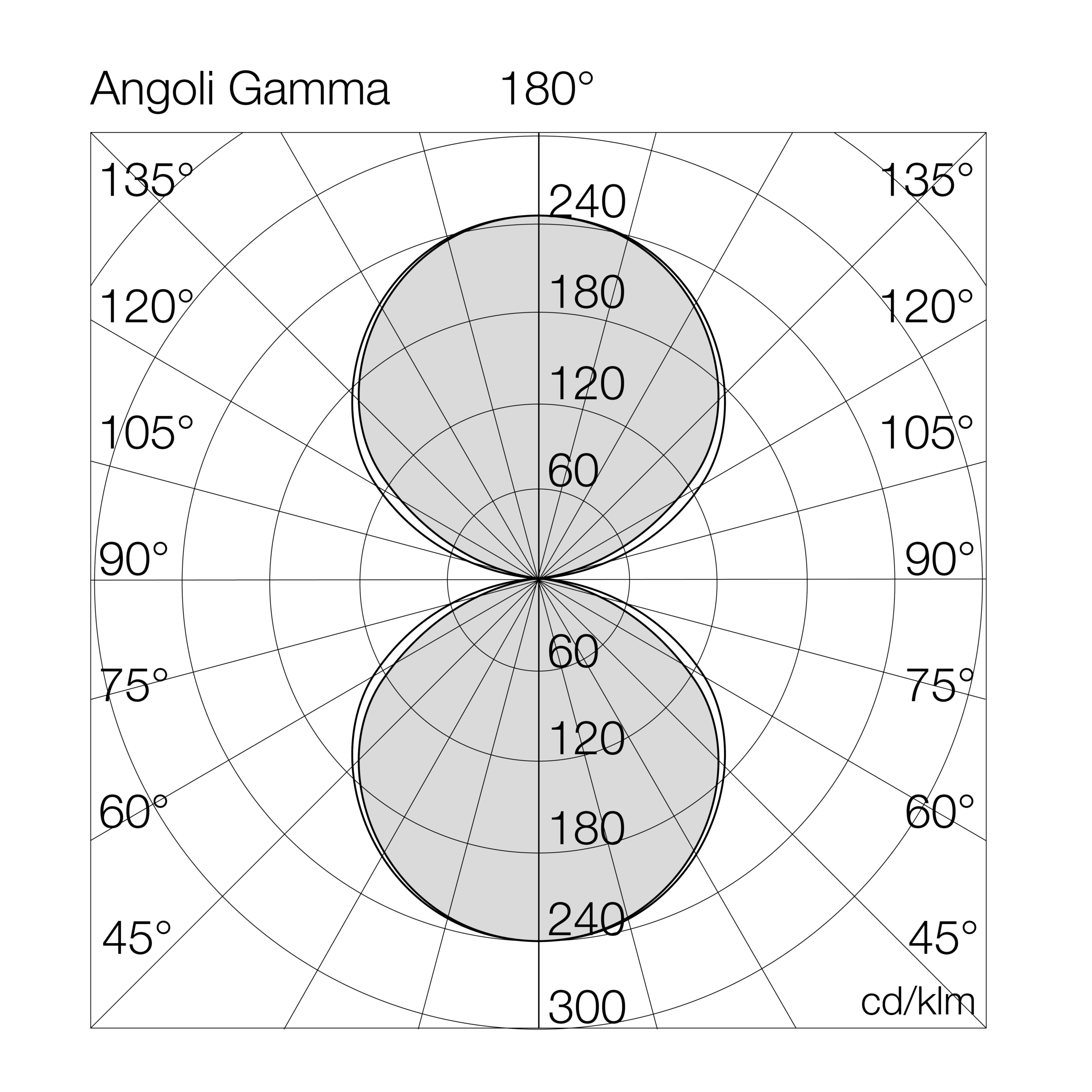

(120° dual emission optics)

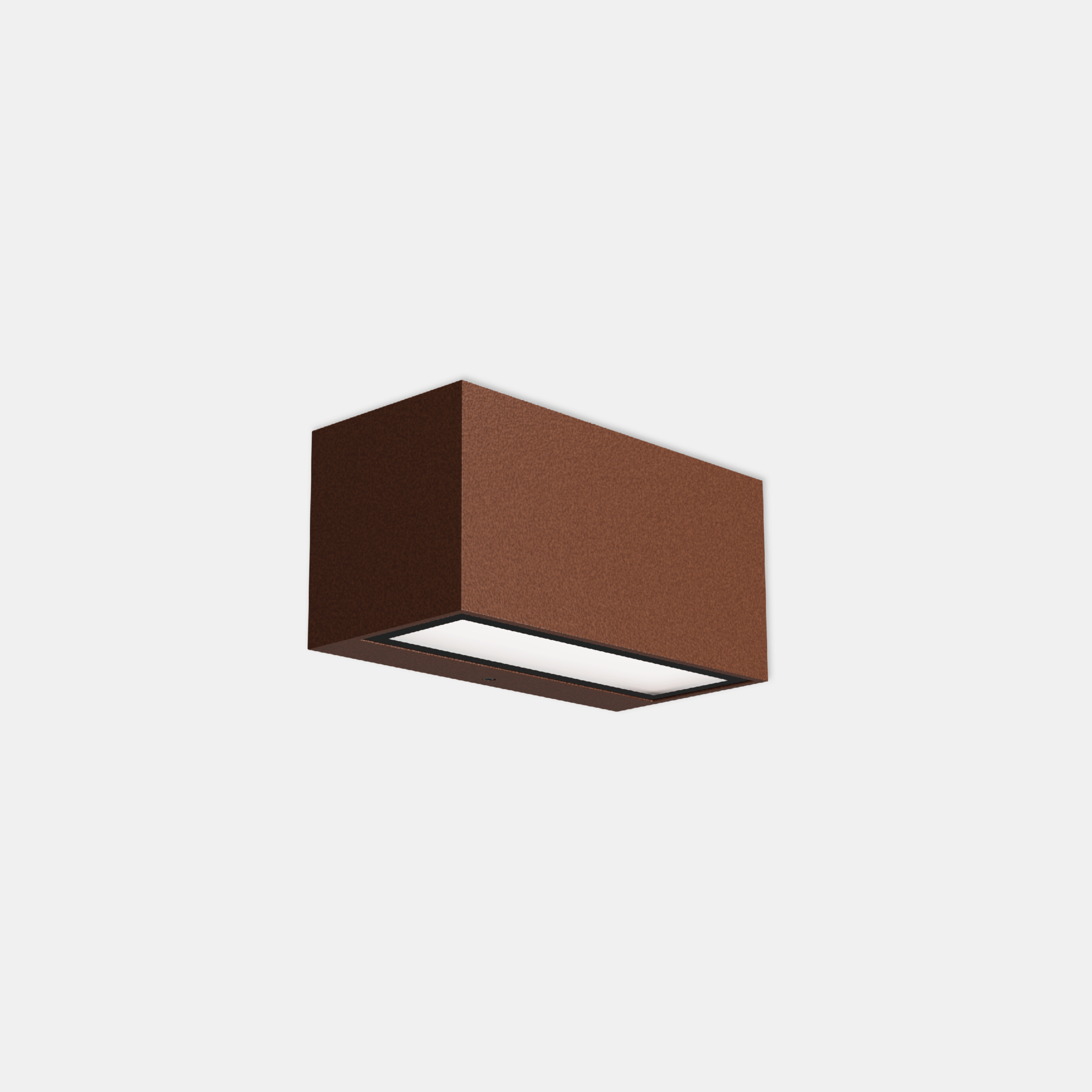

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color corten. Flat tempered glass diffuser 4 mm thick. 120° dual emission optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 3
Color: Corten
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054BD27= 2700°K (CRI >80)14CL= on/off
30= 3000°K (CRI >80)
40= 4000°K (CRI >80)

Models

W tot.
°K - CRI
Options

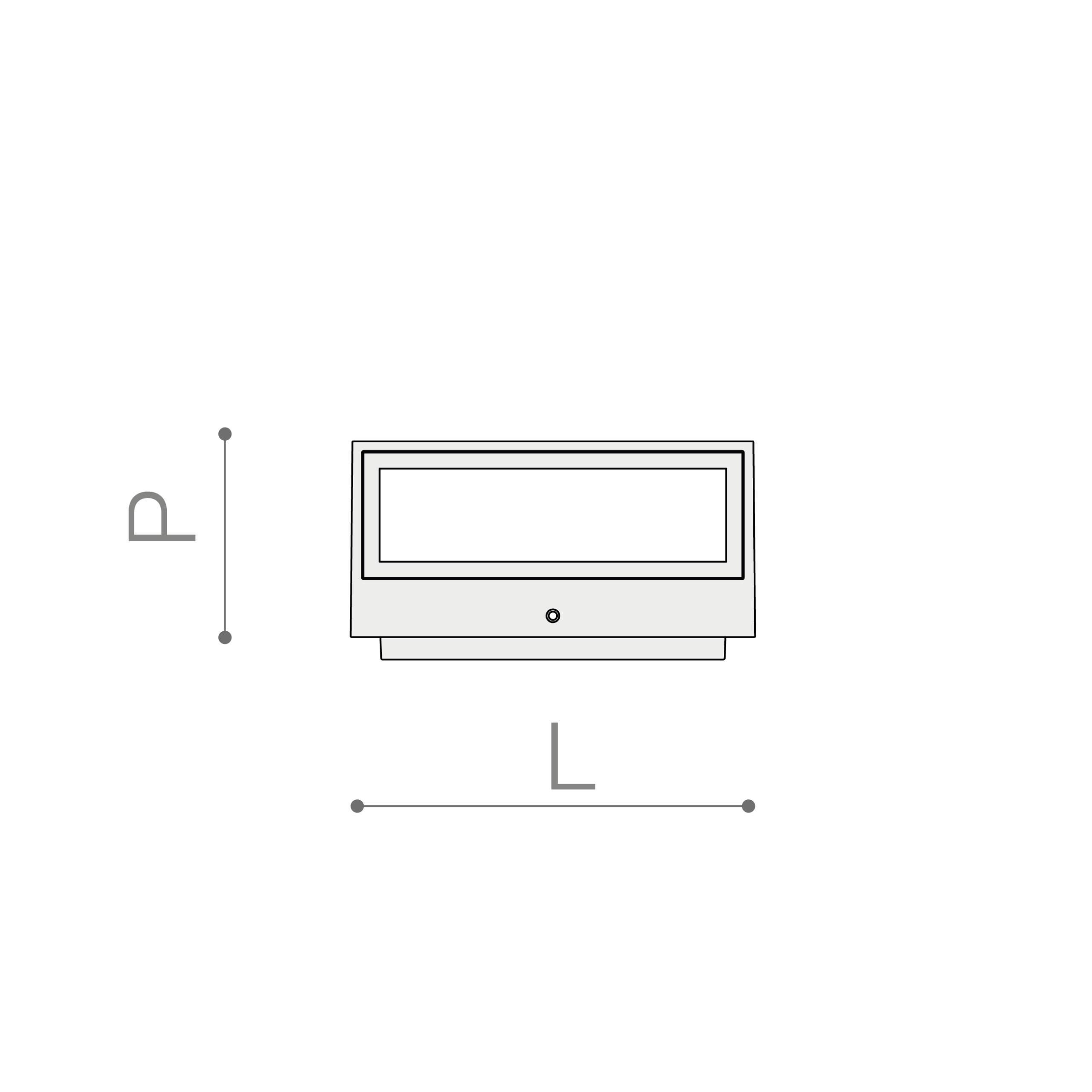

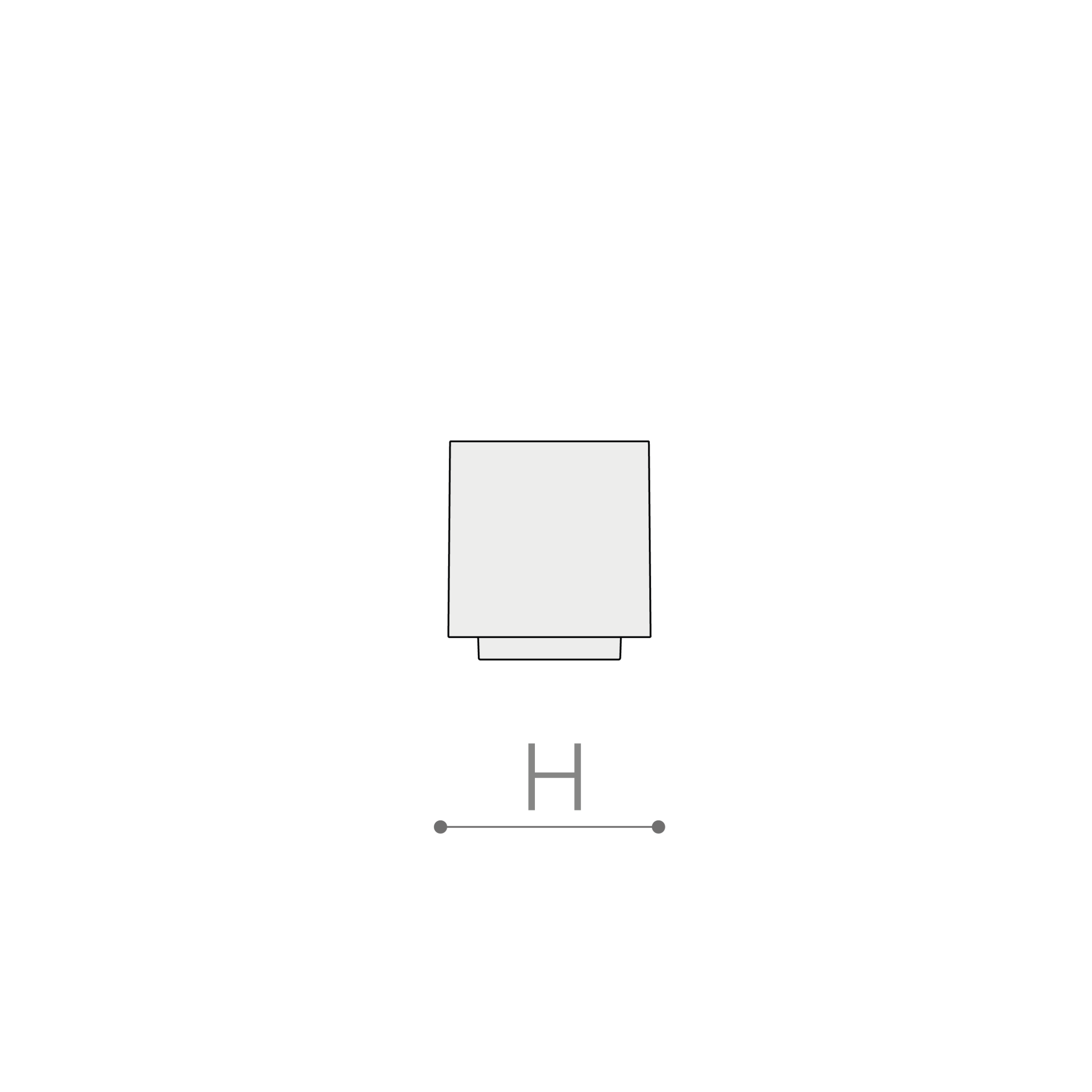

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054BD4014CL14-4000°K - CRI>80on/off1227881257065-0.6
7054BD3014CL14-3000°K - CRI>80on/off1165831257065-0.6
7054BD2714CL14-2700°K - CRI>80on/off1125801257065-0.6
