art.-7054-milo-ms-bs-bianco

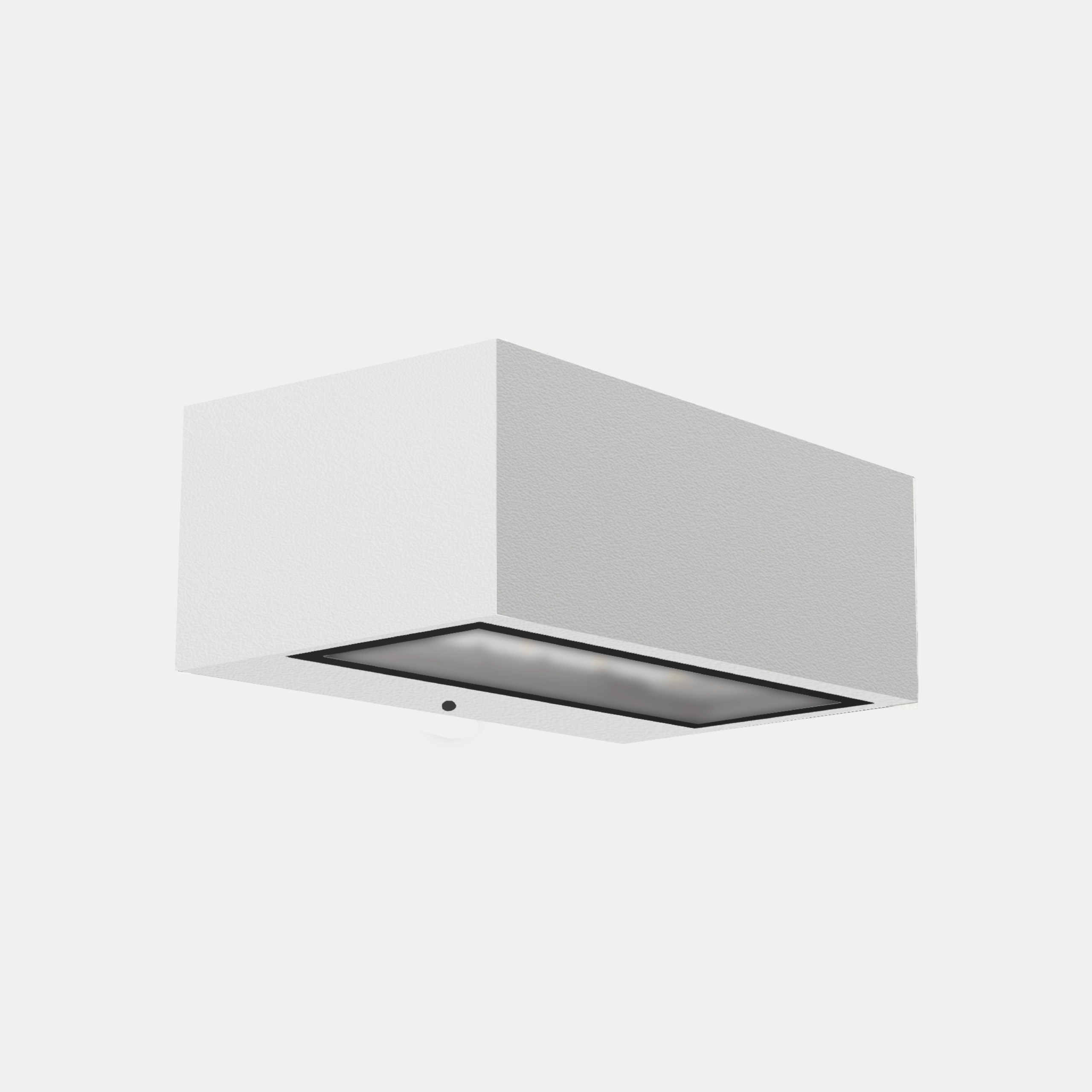

MILO – Mod. BS

(120° dual emission optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 120° dual emission optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 24
Color: Matt white
Catalogue abstract
Installation instructions

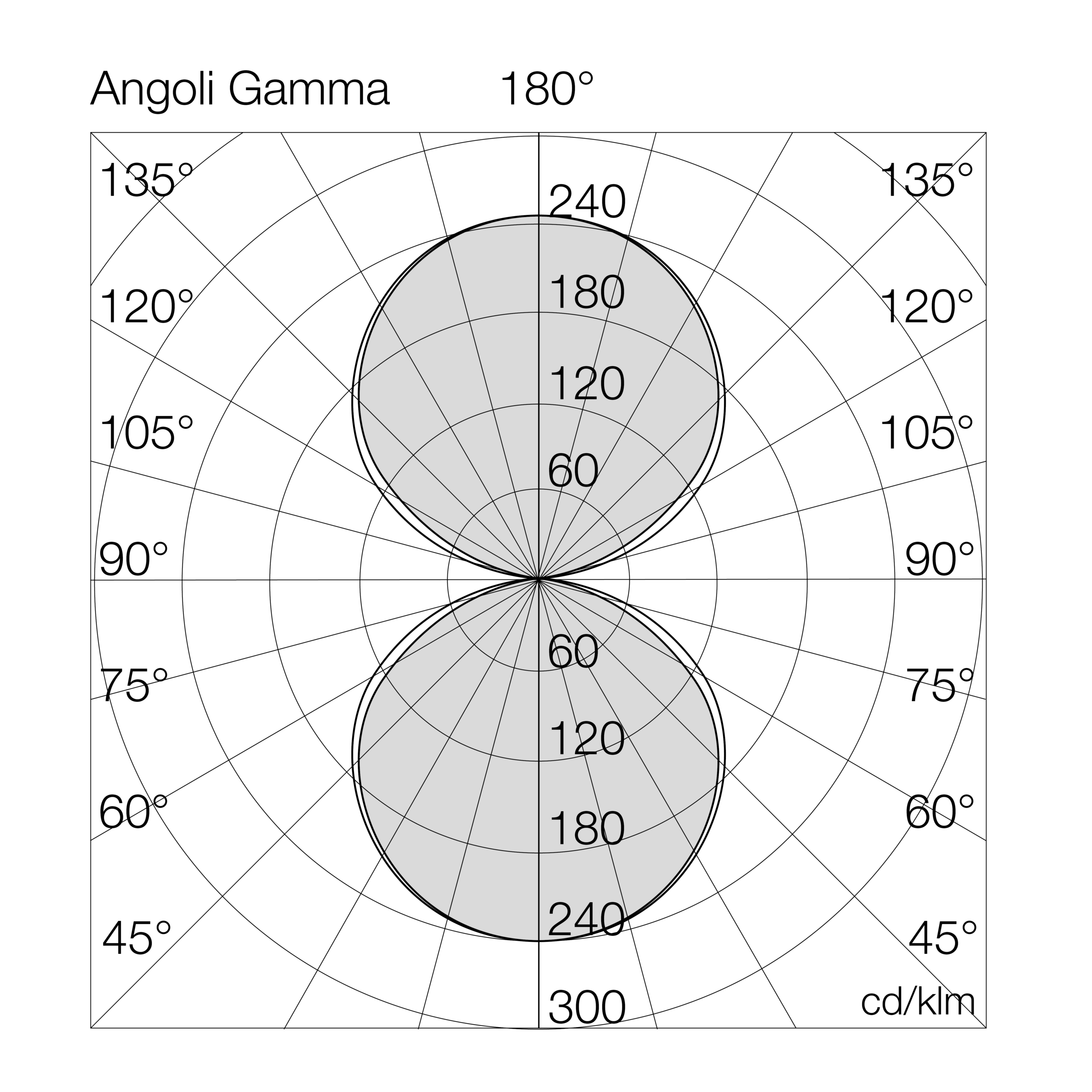

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054BS27= 2700°K (CRI >80)11BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
24

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054BS4011BL11-4000°K - CRI>80on/off123111218011270-0.95
7054BS4015BL15-4000°K - CRI>80on/off158010518011270-0.95
7054BS4019BL19-4000°K - CRI>80on/off193010218011270-0.95
7054BS4024BL24-4000°K - CRI>80on/off23779918011270-0.95
7054BS3011BL11-3000°K - CRI>80on/off116910618011270-0.95
7054BS3015BL15-3000°K - CRI>80on/off150010018011270-0.95
7054BS3019BL19-3000°K - CRI>80on/off18339618011270-0.95
7054BS3024BL24-3000°K - CRI>80on/off22579418011270-0.95
7054BS2711BL11-2700°K - CRI>80on/off112810318011270-0.95
7054BS2715BL15-2700°K - CRI>80on/off14489718011270-0.95
7054BS2719BL19-2700°K - CRI>80on/off17699318011270-0.95
7054BS2724BL24-2700°K - CRI>80on/off21799118011270-0.95
7054BS4011BD11-4000°K - CRI>80dali 2 / dali 2 push123111218011270-0.95
7054BS4015BD15-4000°K - CRI>80dali 2 / dali 2 push158010518011270-0.95
7054BS4019BD19-4000°K - CRI>80dali 2 / dali 2 push193010218011270-0.95
7054BS4024BD24-4000°K - CRI>80dali 2 / dali 2 push23779918011270-0.95
7054BS3011BD11-3000°K - CRI>80dali 2 / dali 2 push116910618011270-0.95
7054BS3015BD15-3000°K - CRI>80dali 2 / dali 2 push150010018011270-0.95
7054BS3019BD19-3000°K - CRI>80dali 2 / dali 2 push18339618011270-0.95
7054BS3024BD24-3000°K - CRI>80dali 2 / dali 2 push22579418011270-0.95
