art.-7054-milo-ms-bs-antracite

MILO/BS

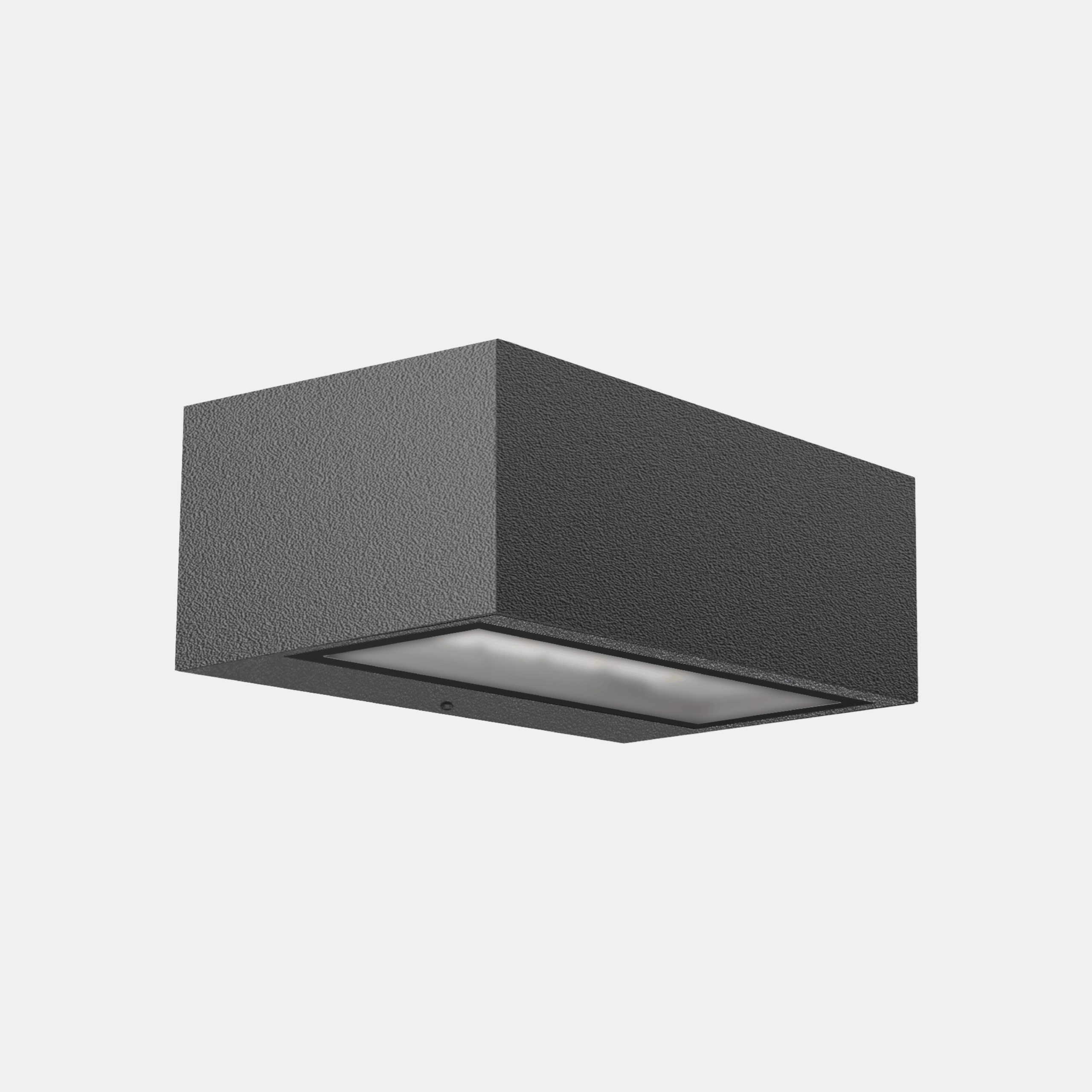

Outdoor and indoor led fitting for wall installation. Die cast aluminium body painted with anthracite epoxypolyester powder. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.
Categories: Led, MILO - 7054, art. 7054 Milo, Architectural Outdoor, art. 7054 Milo
Models: 24
Color: Anthracite
Catalogue abstract
Installation instructions
Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054BS27= 2700°K (CRI >80)11NL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
24

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7054BS4011NL11-4000°K - CRI>80on/off123111218011270-0.95
7054BS4015NL15-4000°K - CRI>80on/off158010518011270-0.95
7054BS4019NL19-4000°K - CRI>80on/off193010218011270-0.95
7054BS4024NL24-4000°K - CRI>80on/off23779918011270-0.95
7054BS3011NL11-3000°K - CRI>80on/off116910618011270-0.95
7054BS3015NL15-3000°K - CRI>80on/off150010018011270-0.95
7054BS3019NL19-3000°K - CRI>80on/off18339618011270-0.95
7054BS3024NL24-3000°K - CRI>80on/off22579418011270-0.95
7054BS2711NL11-2700°K - CRI>80on/off112810318011270-0.95
7054BS2715NL15-2700°K - CRI>80on/off14489718011270-0.95
7054BS2719NL19-2700°K - CRI>80on/off17699318011270-0.95
7054BS2724NL24-2700°K - CRI>80on/off21799118011270-0.95
7054BS4011ND11-4000°K - CRI>80dali 2 / dali 2 push123111218011270-0.95
7054BS4015ND15-4000°K - CRI>80dali 2 / dali 2 push158010518011270-0.95
7054BS4019ND19-4000°K - CRI>80dali 2 / dali 2 push193010218011270-0.95
7054BS4024ND24-4000°K - CRI>80dali 2 / dali 2 push23779918011270-0.95
7054BS3011ND11-3000°K - CRI>80dali 2 / dali 2 push116910618011270-0.95
7054BS3015ND15-3000°K - CRI>80dali 2 / dali 2 push150010018011270-0.95
7054BS3019ND19-3000°K - CRI>80dali 2 / dali 2 push18339618011270-0.95
7054BS3024ND24-3000°K - CRI>80dali 2 / dali 2 push22579418011270-0.95
