art.-7054-milo-m2-b2-m3-b3-m6-b6-bianco

MILO – Mod. M2

(120° single-beam optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 120° single-beam optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 24
Color: Matt white
Catalogue abstract
Installation instructions

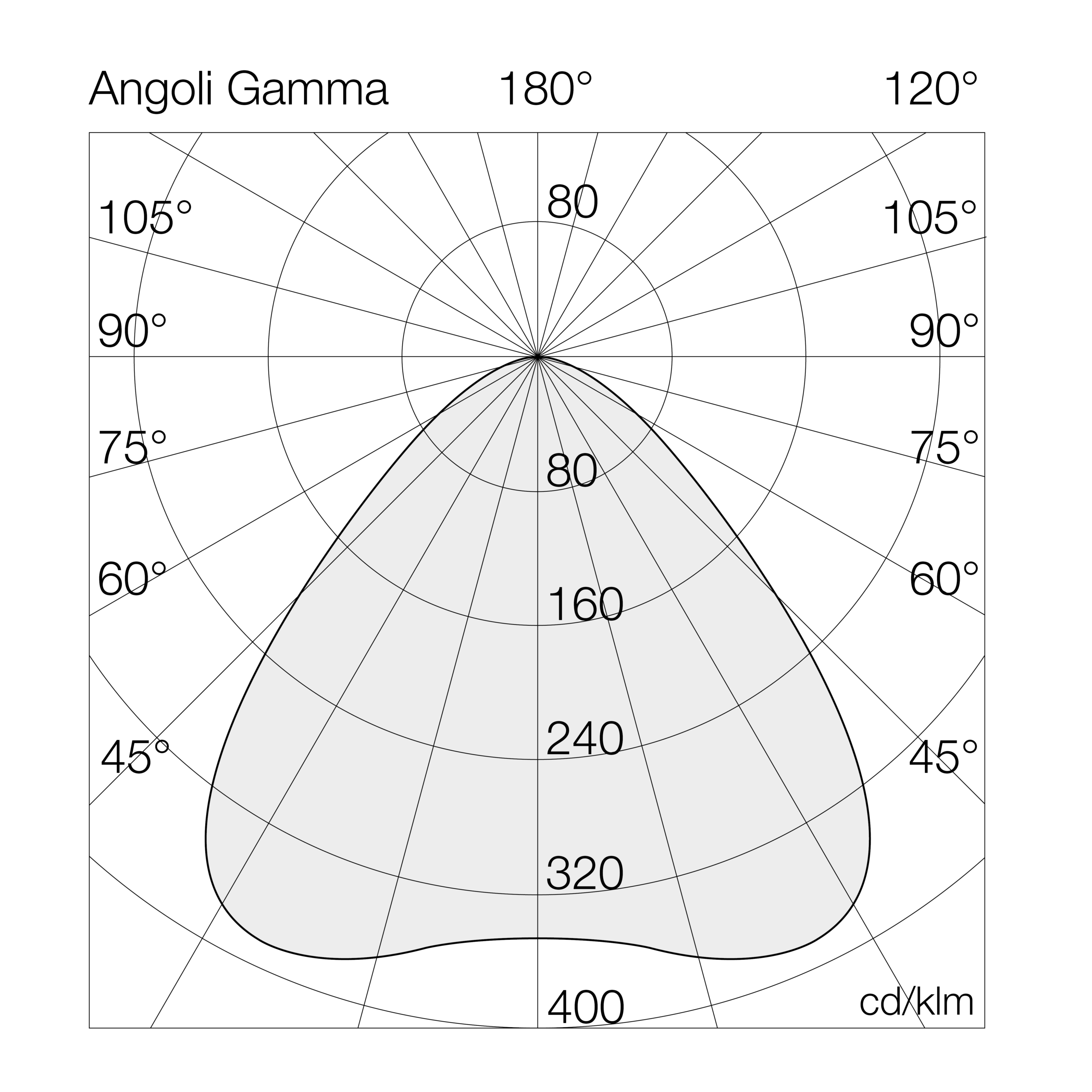

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054M227= 2700°K (CRI >80)09BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054M24009BL9-4000°K - CRI>80on/off133614818011270-0.95
7054M24015BL15-4000°K - CRI>80on/off195513018011270-0.95
7054M24019BL19-4000°K - CRI>80on/off239512618011270-0.95
7054M24023BL23-4000°K - CRI>80on/off281712218011270-0.95
7054M23009BL9-3000°K - CRI>80on/off126914118011270-0.95
7054M23015BL15-3000°K - CRI>80on/off185612418011270-0.95
7054M23019BL19-3000°K - CRI>80on/off227412018011270-0.95
7054M23023BL23-3000°K - CRI>80on/off267511618011270-0.95
7054M22709BL9-2700°K - CRI>80on/off122413618011270-0.95
7054M22715BL15-2700°K - CRI>80on/off179211918011270-0.95
7054M22719BL19-2700°K - CRI>80on/off219511618011270-0.95
7054M22723BL23-2700°K - CRI>80on/off258211218011270-0.95
7054M24009BD9-4000°K - CRI>80dali 2 / dali 2 push133614818011270-0.95
7054M24015BD15-4000°K - CRI>80dali 2 / dali 2 push195513018011270-0.95
7054M24019BD19-4000°K - CRI>80dali 2 / dali 2 push239512618011270-0.95
7054M24023BD23-4000°K - CRI>80dali 2 / dali 2 push281712218011270-0.95
7054M23009BD9-3000°K - CRI>80dali 2 / dali 2 push126914118011270-0.95
7054M23015BD15-3000°K - CRI>80dali 2 / dali 2 push185612418011270-0.95
7054M23019BD19-3000°K - CRI>80dali 2 / dali 2 push227412018011270-0.95
7054M23023BD23-3000°K - CRI>80dali 2 / dali 2 push267511618011270-0.95
