MILO – Mod. M3

(30° single-beam optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 30° single-beam optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 24
Color: Matt white
Catalogue abstract
Installation instructions

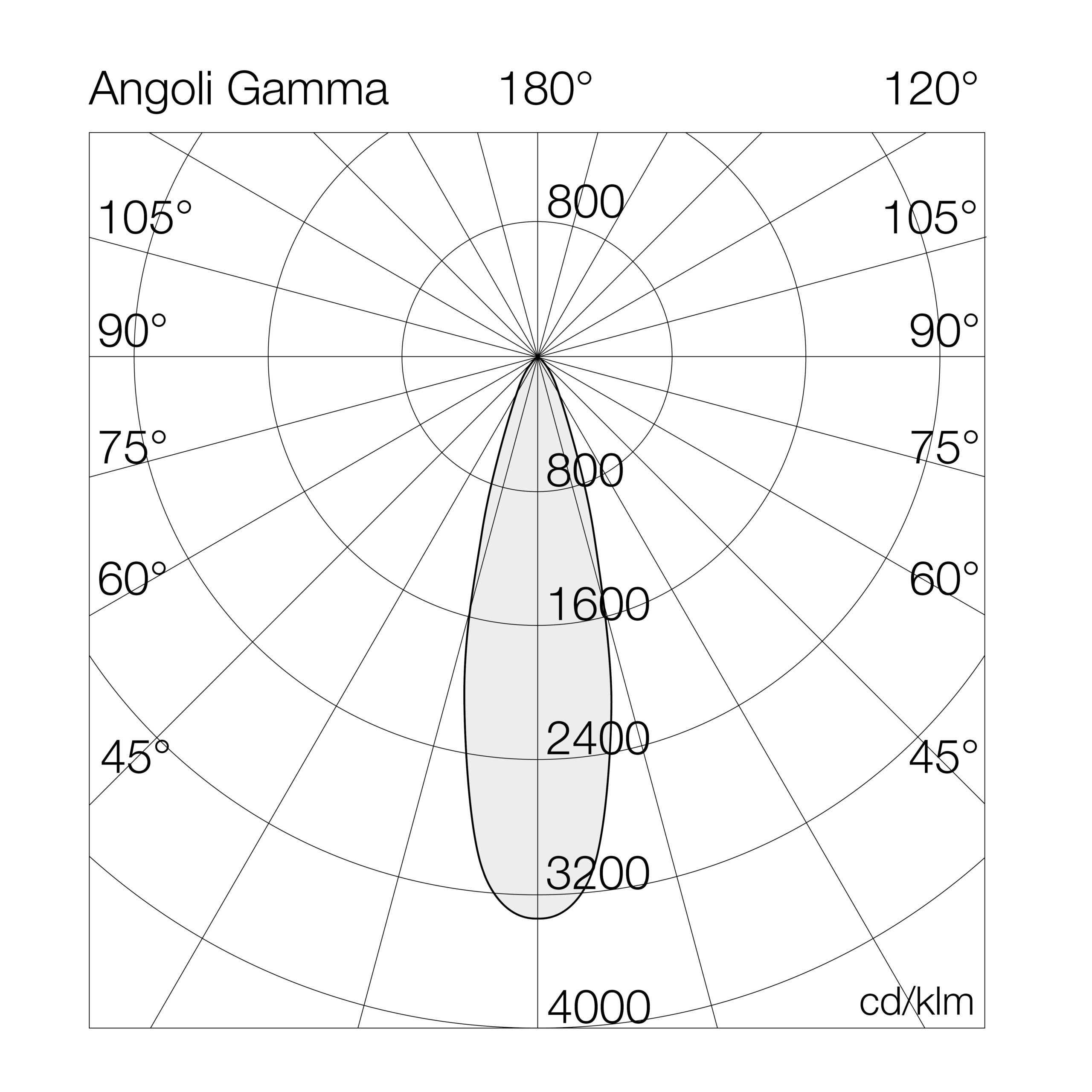

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054M327= 2700°K (CRI >80)09BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054M34009BL9-4000°K - CRI>80on/off130314518011270-0.95
7054M34015BL15-4000°K - CRI>80on/off190712718011270-0.95
7054M34019BL19-4000°K - CRI>80on/off233712318011270-0.95
7054M34023BL23-4000°K - CRI>80on/off274811918011270-0.95
7054M33009BL9-3000°K - CRI>80on/off123713718011270-0.95
7054M33015BL15-3000°K - CRI>80on/off181112118011270-0.95
7054M33019BL19-3000°K - CRI>80on/off221911718011270-0.95
7054M33023BL23-3000°K - CRI>80on/off260911318011270-0.95
7054M32709BL9-2700°K - CRI>80on/off119413318011270-0.95
7054M32715BL15-2700°K - CRI>80on/off174811718011270-0.95
7054M32719BL19-2700°K - CRI>80on/off214211318011270-0.95
7054M32723BL23-2700°K - CRI>80on/off251911018011270-0.95
7054M34009BD9-4000°K - CRI>80dali 2 / dali 2 push130314518011270-0.95
7054M34015BD15-4000°K - CRI>80dali 2 / dali 2 push190712718011270-0.95
7054M34019BD19-4000°K - CRI>80dali 2 / dali 2 push233712318011270-0.95
7054M34023BD23-4000°K - CRI>80dali 2 / dali 2 push274811918011270-0.95
7054M33009BD9-3000°K - CRI>80dali 2 / dali 2 push123713718011270-0.95
7054M33015BD15-3000°K - CRI>80dali 2 / dali 2 push181112118011270-0.95
7054M33019BD19-3000°K - CRI>80dali 2 / dali 2 push221911718011270-0.95
7054M33023BD23-3000°K - CRI>80dali 2 / dali 2 push260911318011270-0.95
