MILO – Mod. M6

(60° single-beam optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color white. Flat tempered glass diffuser 4 mm thick. 60° single-beam optics.
Categories: Led, MILO, MILO - 7054, Architectural Outdoor, MILO
Models: 24
Color: Matt white
Catalogue abstract
Installation instructions

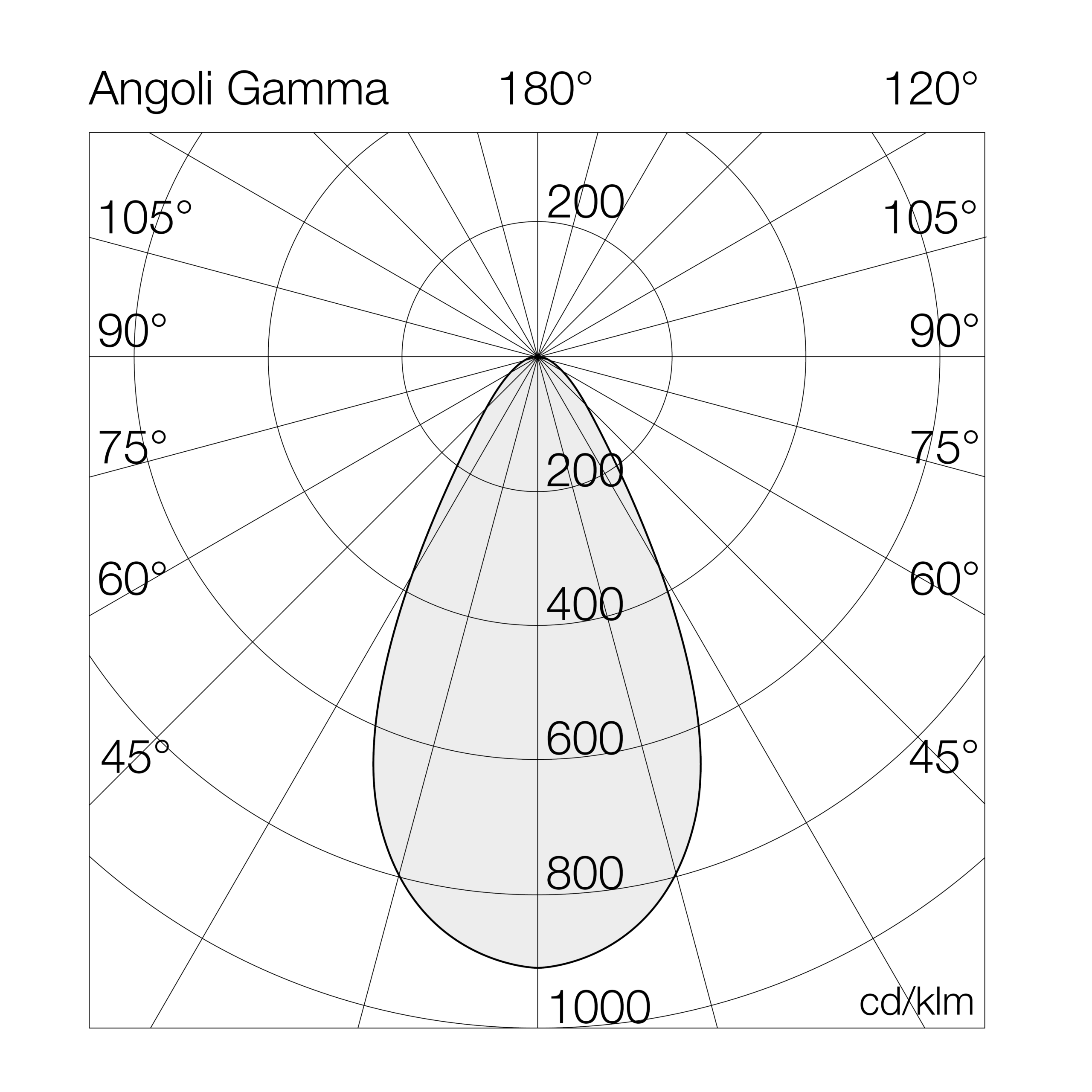

Photometric data

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7054M627= 2700°K (CRI >80)09BL= on/off
30= 3000°K (CRI >80)15
40= 4000°K (CRI >80)19
23

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7054M64009BL9-4000°K - CRI>80on/off131914718011270-0.95
7054M64015BL15-4000°K - CRI>80on/off193112918011270-0.95
7054M64019BL19-4000°K - CRI>80on/off236612518011270-0.95
7054M64023BL23-4000°K - CRI>80on/off278212118011270-0.95
7054M63009BL9-3000°K - CRI>80on/off125213918011270-0.95
7054M63015BL15-3000°K - CRI>80on/off183312218011270-0.95
7054M63019BL19-3000°K - CRI>80on/off224711818011270-0.95
7054M63023BL23-3000°K - CRI>80on/off264211518011270-0.95
7054M62709BL9-2700°K - CRI>80on/off120913418011270-0.95
7054M62715BL15-2700°K - CRI>80on/off177011818011270-0.95
7054M62719BL19-2700°K - CRI>80on/off216811418011270-0.95
7054M62723BL23-2700°K - CRI>80on/off255011118011270-0.95
7054M64009BD9-4000°K - CRI>80dali 2 / dali 2 push131914718011270-0.95
7054M64015BD15-4000°K - CRI>80dali 2 / dali 2 push193112918011270-0.95
7054M64019BD19-4000°K - CRI>80dali 2 / dali 2 push236612518011270-0.95
7054M64023BD23-4000°K - CRI>80dali 2 / dali 2 push278212118011270-0.95
7054M63009BD9-3000°K - CRI>80dali 2 / dali 2 push125213918011270-0.95
7054M63015BD15-3000°K - CRI>80dali 2 / dali 2 push183312218011270-0.95
7054M63019BD19-3000°K - CRI>80dali 2 / dali 2 push224711818011270-0.95
7054M63023BD23-3000°K - CRI>80dali 2 / dali 2 push264211518011270-0.95
