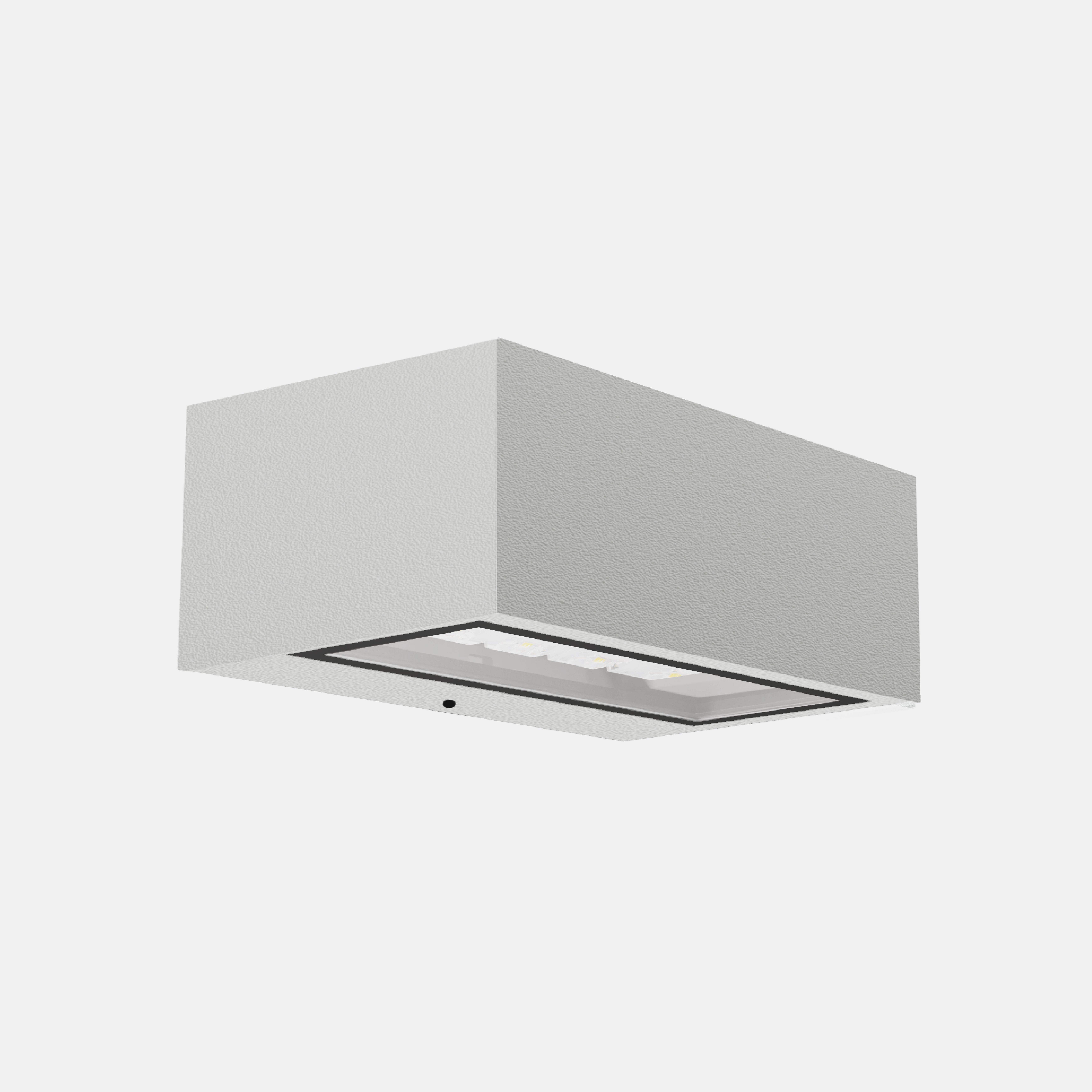

MILO – Mod. M6

(60° single-beam optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color silver. Flat tempered glass diffuser 4 mm thick. 60° single-beam optics.

Categories: Led, MILO, Architectural Outdoor, MILO

Models: 24

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7054	M6	27	= 2700°K (CRI >80)	09	SL	= on/off
		30	= 3000°K (CRI >80)	15	SD	= dali 2 / dali 2 push
		40	= 4000°K (CRI >80)	19
				23

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7054M64009SL	9	-	4000°K - CRI ≥80	on/off	1319	147	180	112	70	-	0.95
7054M64015SL	15	-	4000°K - CRI ≥80	on/off	1931	129	180	112	70	-	0.95
7054M64019SL	19	-	4000°K - CRI ≥80	on/off	2366	125	180	112	70	-	0.95
7054M64023SL	23	-	4000°K - CRI ≥80	on/off	2782	121	180	112	70	-	0.95
7054M63009SL	9	-	3000°K - CRI ≥80	on/off	1252	139	180	112	70	-	0.95
7054M63015SL	15	-	3000°K - CRI ≥80	on/off	1833	122	180	112	70	-	0.95
7054M63019SL	19	-	3000°K - CRI ≥80	on/off	2247	118	180	112	70	-	0.95
7054M63023SL	23	-	3000°K - CRI ≥80	on/off	2642	115	180	112	70	-	0.95
7054M62709SL	9	-	2700°K - CRI ≥80	on/off	1209	134	180	112	70	-	0.95
7054M62715SL	15	-	2700°K - CRI ≥80	on/off	1770	118	180	112	70	-	0.95
7054M62719SL	19	-	2700°K - CRI ≥80	on/off	2168	114	180	112	70	-	0.95
7054M62723SL	23	-	2700°K - CRI ≥80	on/off	2550	111	180	112	70	-	0.95
7054M64009SD	9	-	4000°K - CRI ≥80	dali 2 / dali 2 push	1319	147	180	112	70	-	0.95
7054M64015SD	15	-	4000°K - CRI ≥80	dali 2 / dali 2 push	1931	129	180	112	70	-	0.95
7054M64019SD	19	-	4000°K - CRI ≥80	dali 2 / dali 2 push	2366	125	180	112	70	-	0.95
7054M64023SD	23	-	4000°K - CRI ≥80	dali 2 / dali 2 push	2782	121	180	112	70	-	0.95
7054M63009SD	9	-	3000°K - CRI ≥80	dali 2 / dali 2 push	1252	139	180	112	70	-	0.95
7054M63015SD	15	-	3000°K - CRI ≥80	dali 2 / dali 2 push	1833	122	180	112	70	-	0.95
7054M63019SD	19	-	3000°K - CRI ≥80	dali 2 / dali 2 push	2247	118	180	112	70	-	0.95
7054M63023SD	23	-	3000°K - CRI ≥80	dali 2 / dali 2 push	2642	115	180	112	70	-	0.95
