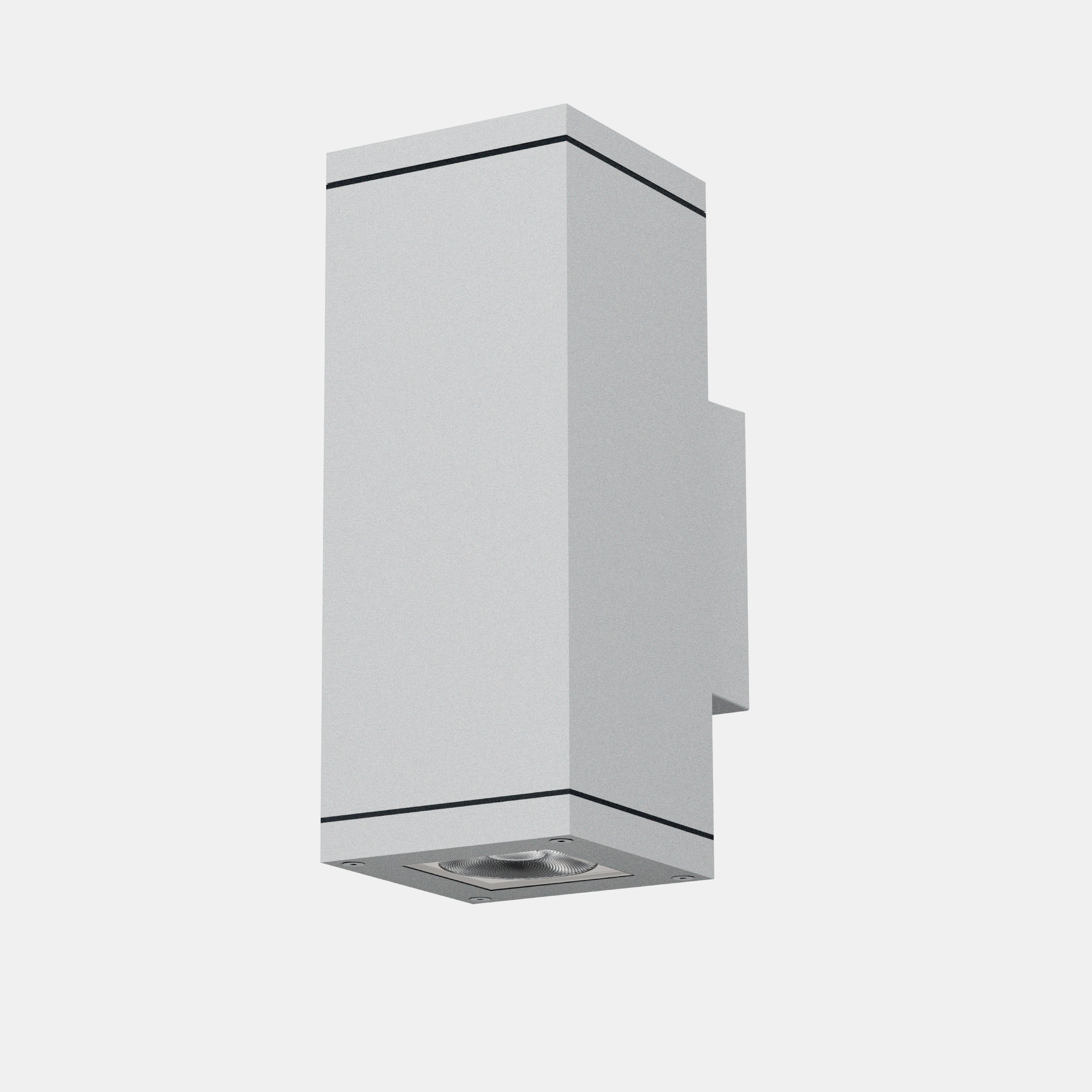

LAPIS – Mod. M3

(36° medium single emission optics)

Outdoor and indoor LED fixture suitable for wall installation. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powders, color silver. 36° medium single emission optics.

Categories: Led, LAPIS, Architectural Outdoor, LAPIS

Models: 18

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7056	M3	27	= 2700°K (CRI >80)	10	SL	= on/off
		30	= 3000°K (CRI >80)	20	SD	= dali 2
		40	= 4000°K (CRI >80)	30

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7056M34010SL	10	-	4000°K - CRI ≥80	on/off	1232	123	105	105	273	165	2.0
7056M34020SL	20	-	4000°K - CRI ≥80	on/off	2205	110	105	105	273	165	2.0
7056M34030SL	30	-	4000°K - CRI ≥80	on/off	3123	104	105	105	273	165	2.0
7056M34010SD	10	-	4000°K - CRI ≥80	dali 2 / dali 2 push	1232	123	105	105	273	165	2.0
7056M34020SD	20	-	4000°K - CRI ≥80	dali 2 / dali 2 push	2205	110	105	105	273	165	2.0
7056M34030SD	30	-	4000°K - CRI ≥80	dali 2 / dali 2 push	3123	104	105	105	273	165	2.0
7056M33010SL	10	-	3000°K - CRI ≥80	on/off	1173	117	105	105	273	165	2.0
7056M33020SL	20	-	3000°K - CRI ≥80	on/off	2100	105	105	105	273	165	2.0
7056M33030SL	30	-	3000°K - CRI ≥80	on/off	2974	99	105	105	273	165	2.0
7056M33010SD	10	-	3000°K - CRI ≥80	dali 2 / dali 2 push	1173	117	105	105	273	165	2.0
7056M33020SD	20	-	3000°K - CRI ≥80	dali 2 / dali 2 push	2100	105	105	105	273	165	2.0
7056M33030SD	30	-	3000°K - CRI ≥80	dali 2 / dali 2 push	2974	99	105	105	273	165	2.0
7056M32710SL	10	-	2700°K - CRI ≥80	on/off	1116	112	105	105	273	165	2.0
7056M32720SL	20	-	2700°K - CRI ≥80	on/off	1998	100	105	105	273	165	2.0
7056M32730SL	30	-	2700°K - CRI ≥80	on/off	2830	94	105	105	273	165	2.0
7056M32710SD	10	-	2700°K - CRI ≥80	dali 2 / dali 2 push	1116	112	105	105	273	165	2.0
7056M32720SD	20	-	2700°K - CRI ≥80	dali 2 / dali 2 push	1998	100	105	105	273	165	2.0
7056M32730SD	30	-	2700°K - CRI ≥80	dali 2 / dali 2 push	2830	94	105	105	273	165	2.0
