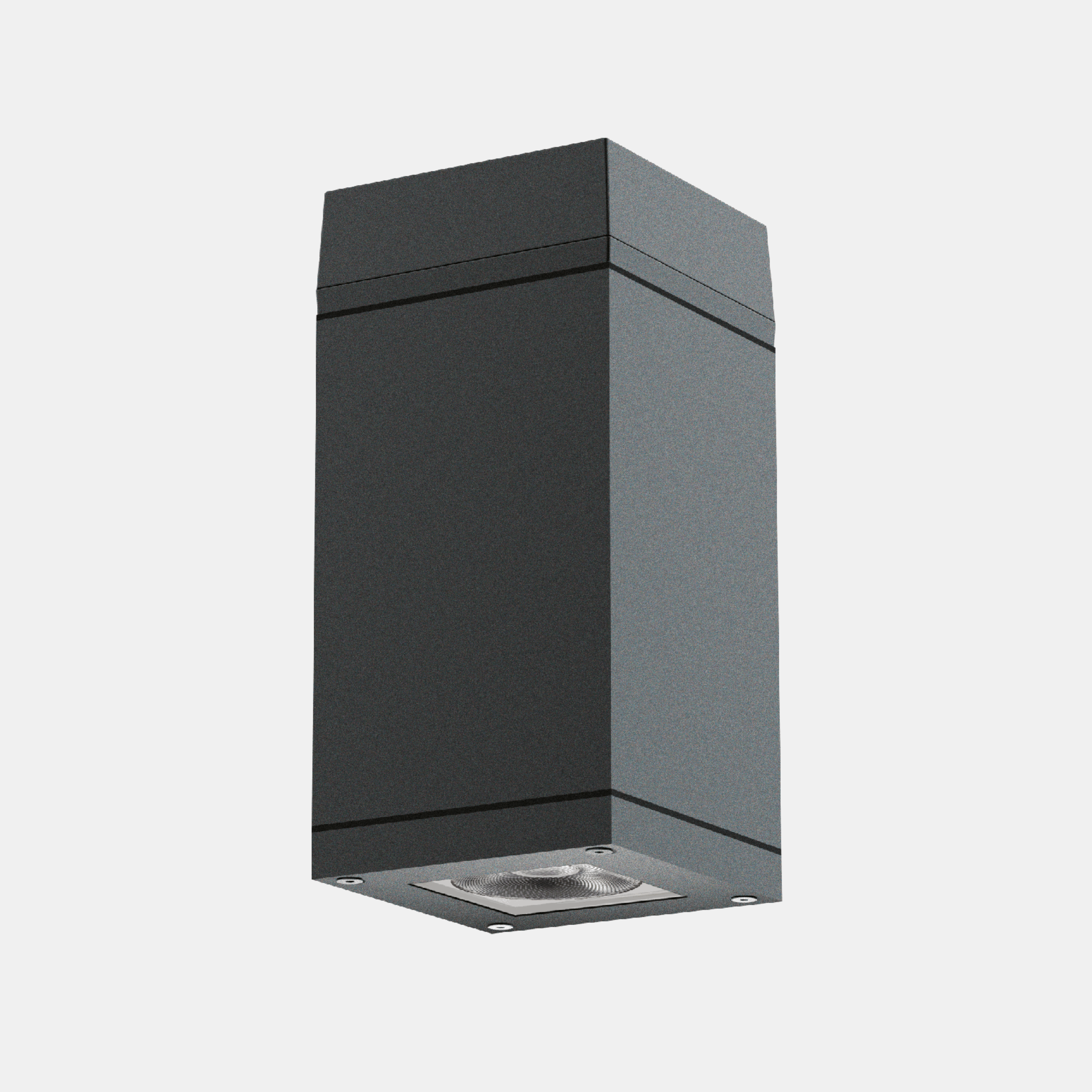

LAPIS/S3

Outdoor and indoor led fitting for wall installation. Die cast aluminium body painted with anthracite epoxypolyester powder. Electronic driver 220-240V 50/60Hz. Manufactured in accordance with EN / IEC 60598-1.

Categories: Led, LAPIS - 7056, Architectural Outdoor, art. 7056 Lapis

Models: 18

Color: Anthracite

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7056	S3	27	= 2700°K (CRI >80)	10	NL	= on/off
		30	= 3000°K (CRI >80)	20	ND	= dali 2
		40	= 4000°K (CRI >80)	30

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7056S34010NL	10	-	4000°K - CRI>80	on/off	1232	123	105	105	220	-	1.3
7056S34020NL	20	-	4000°K - CRI>80	on/off	2205	110	105	105	220	-	1.3
7056S34030NL	30	-	4000°K - CRI>80	on/off	3123	104	105	105	220	-	1.3
7056S34010ND	10	-	4000°K - CRI>80	dali 2 / dali 2 push	1232	123	105	105	220	-	1.3
7056S34020ND	20	-	4000°K - CRI>80	dali 2 / dali 2 push	2205	110	105	105	220	-	1.3
7056S34030ND	30	-	4000°K - CRI>80	dali 2 / dali 2 push	3123	104	105	105	220	-	1.3
7056S33010NL	10	-	3000°K - CRI>80	on/off	1173	117	105	105	220	-	1.3
7056S33020NL	20	-	3000°K - CRI>80	on/off	2100	105	105	105	220	-	1.3
7056S33030NL	30	-	3000°K - CRI>80	on/off	2974	99	105	105	220	-	1.3
7056S33010ND	10	-	3000°K - CRI>80	dali 2 / dali 2 push	1173	117	105	105	220	-	1.3
7056S33020ND	20	-	3000°K - CRI>80	dali 2 / dali 2 push	2100	105	105	105	220	-	1.3
7056S33030ND	30	-	3000°K - CRI>80	dali 2 / dali 2 push	2974	99	105	105	220	-	1.3
7056S32710NL	10	-	2700°K - CRI>80	on/off	1116	112	105	105	220	-	1.3
7056S32720NL	20	-	2700°K - CRI>80	on/off	1998	100	105	105	220	-	1.3
7056S32730NL	30	-	2700°K - CRI>80	on/off	2830	94	105	105	220	-	1.3
7056S32710ND	10	-	2700°K - CRI>80	dali 2 / dali 2 push	1116	112	105	105	220	-	1.3
7056S32720ND	20	-	2700°K - CRI>80	dali 2 / dali 2 push	1998	100	105	105	220	-	1.3
7056S32730ND	30	-	2700°K - CRI>80	dali 2 / dali 2 push	2830	94	105	105	220	-	1.3
