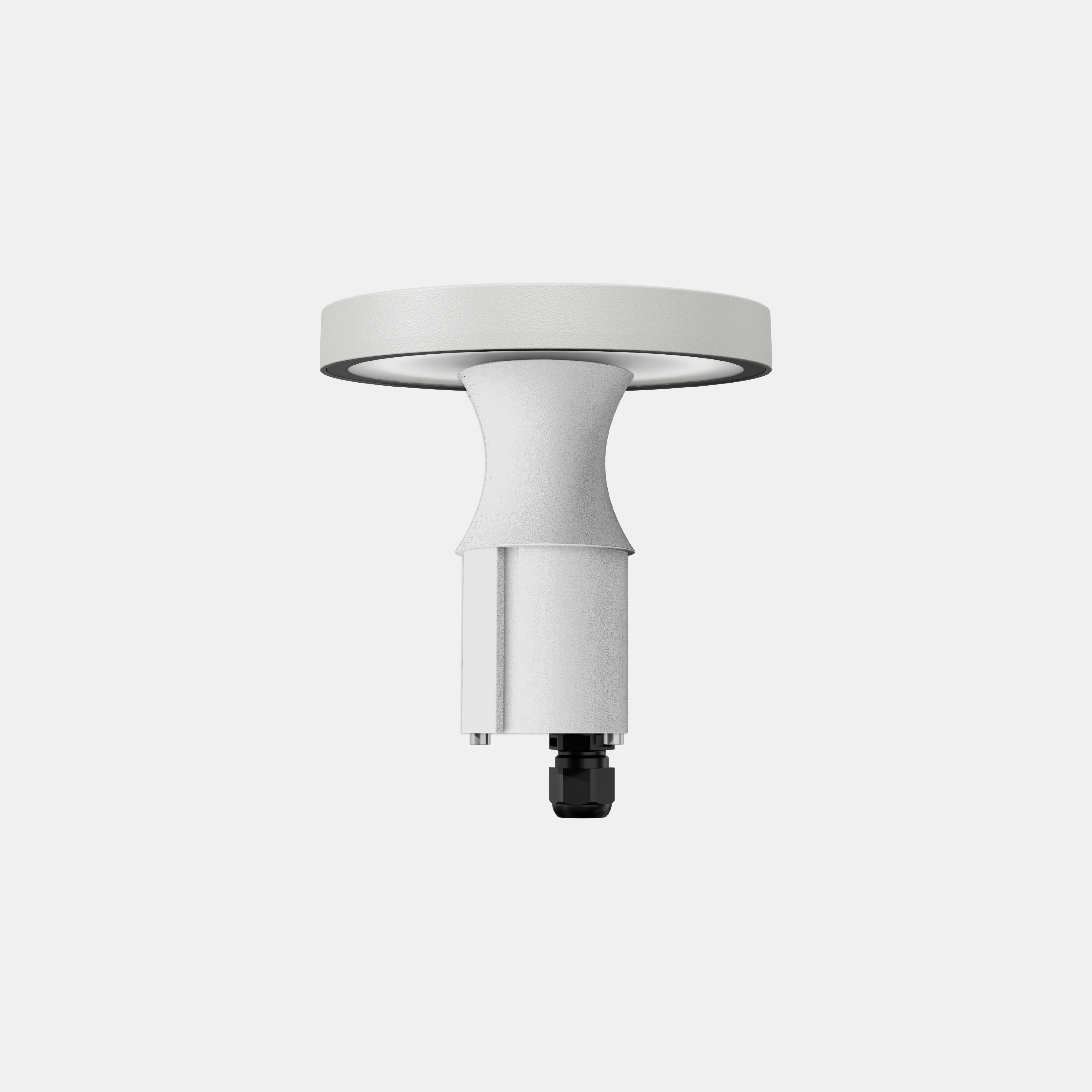

OLAF – Mod. MR

(180° rotosymmetric optics)

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body, painted with anti-corrosion polyester thermosetting powders, color silver. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° light distribution.

Categories: Led, OLAF, Architectural Outdoor, OLAF, OLAF

Models: 3

Color: Silver

Catalogue abstract

Installation instructions

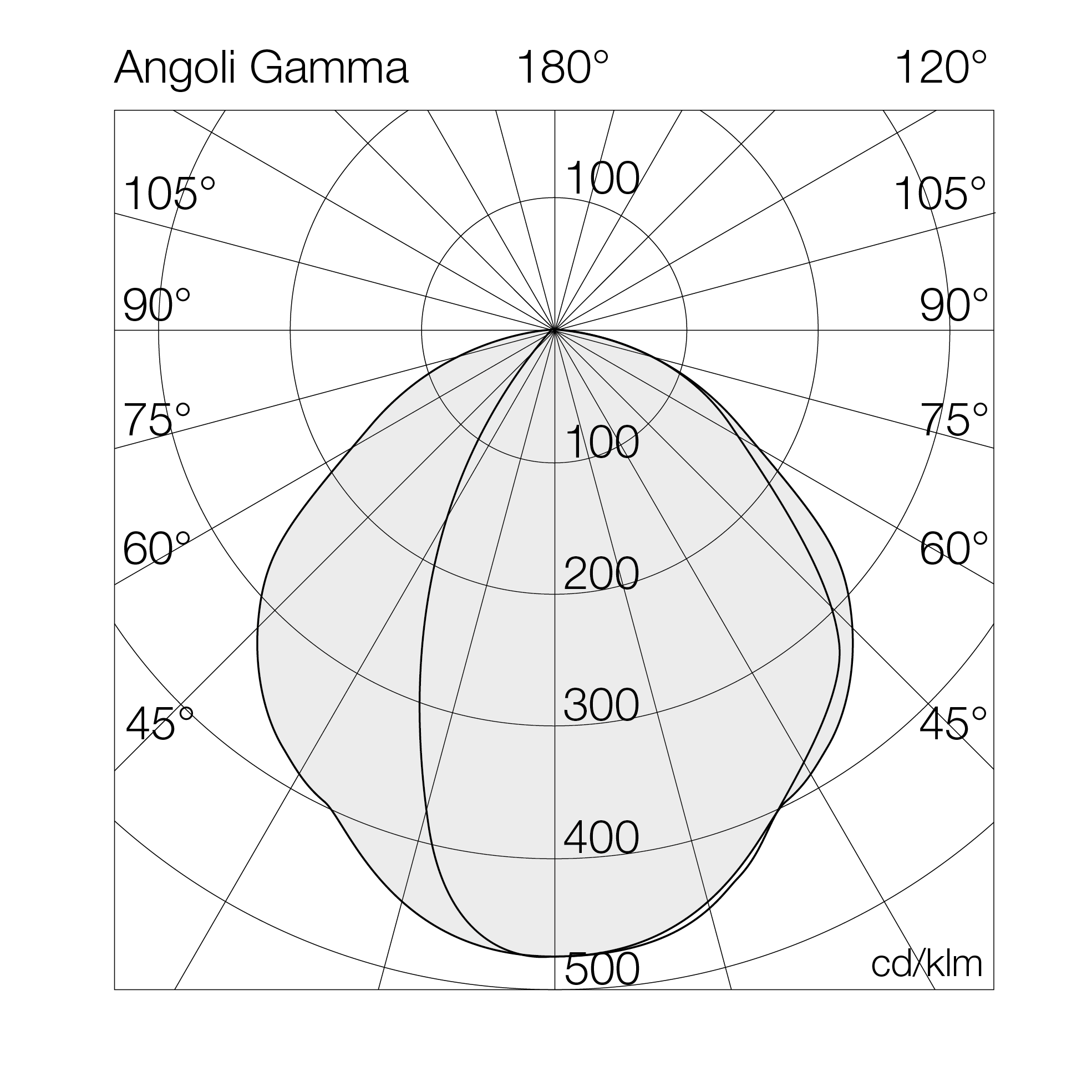

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7060	MR	27	= 2700°K (CRI>80)	07	SL	= kit retrofit
		30	= 3000°K (CRI>80)
		40	= 4000°K (CRI>80)

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7060MR4007SL	7.5	-	4000°K - CRI ≥80	kit retrofit	772	103	150	-	120	-	0.75
7060MR3007SL	7.5	-	3000°K - CRI ≥80	kit retrofit	732	98	150	-	120	-	0.75
7060MR2707SL	7.5	-	2700°K - CRI ≥80	kit retrofit	710	95	150	-	120	-	0.75
