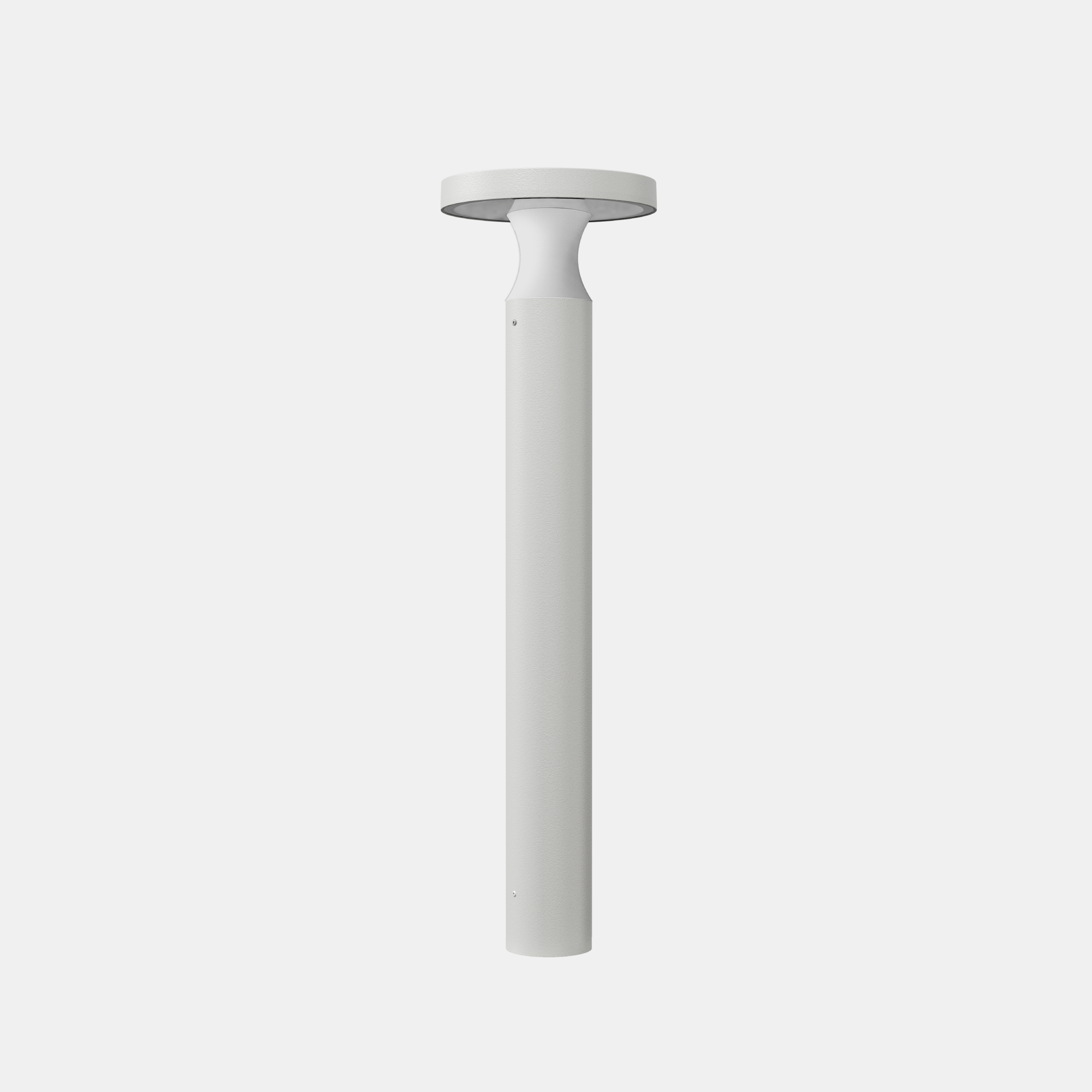

OLAF – Mod. MR

(180° rotosymmetric optics)

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color silver. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° light distribution.

Categories: Led, OLAF, Architectural Outdoor, OLAF, OLAF

Models: 12

Color: Silver

Catalogue abstract

Installation instructions

Photometric data

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7060	MR	27	= 2700°K (CRI>80)	07	S2	= 250mm
		30	= 3000°K (CRI>80)		S4	= 400mm
		40	= 4000°K (CRI>80)		S7	= 700mm
					S1	= 1000mm

Models

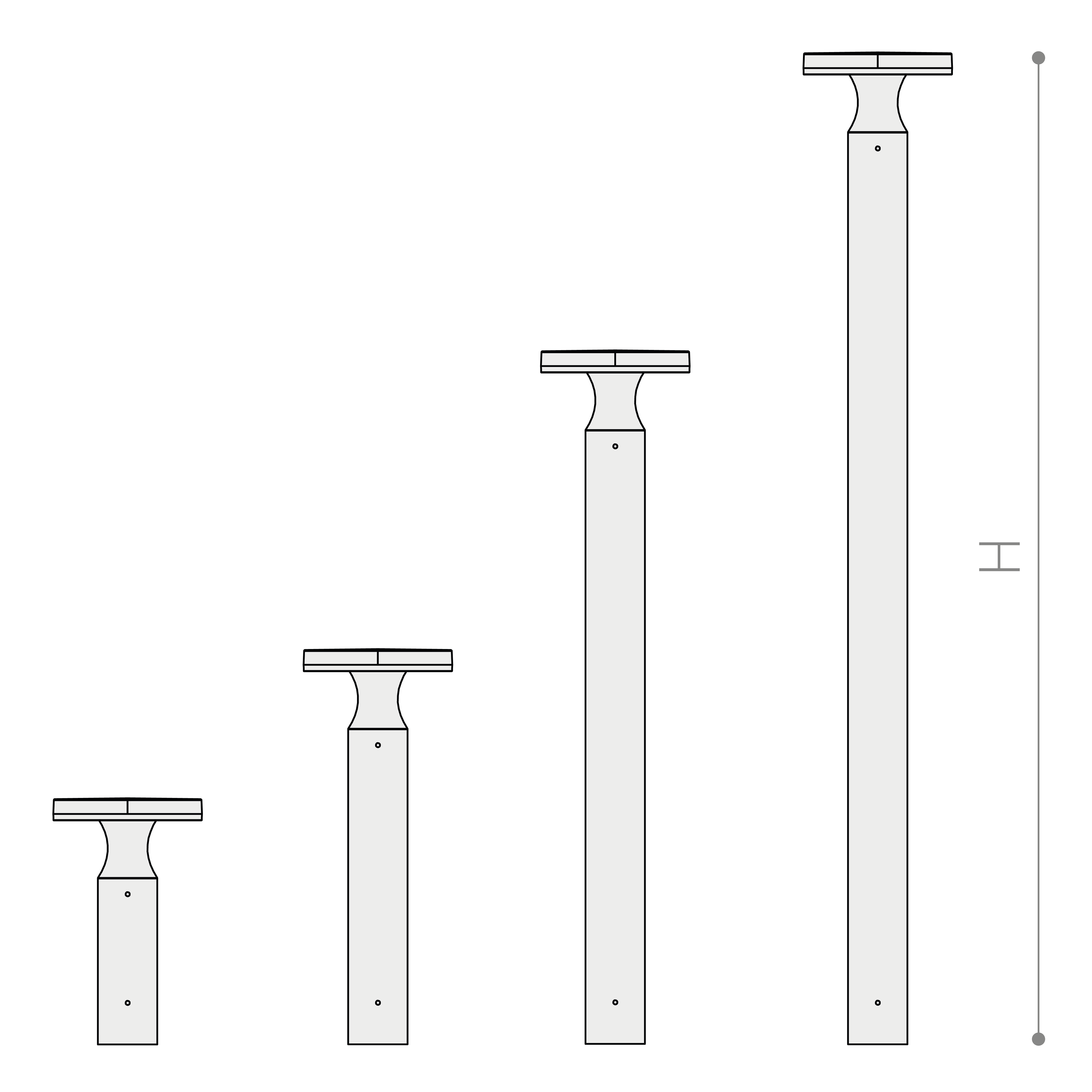

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7060MR4007S2	7.5	-	4000°K - CRI ≥80	250 mm	772	103	150	-	250	-	1.5
7060MR4007S4	7.5	-	4000°K - CRI ≥80	400 mm	772	103	150	-	400	-	1.95
7060MR4007S7	7.5	-	4000°K - CRI ≥80	700 mm	772	103	150	-	700	-	2.25
7060MR4007S1	7.5	-	4000°K - CRI ≥80	1000 mm	772	103	150	-	1000	-	2.75
7060MR3007S2	7.5	-	3000°K - CRI ≥80	250 mm	732	98	150	-	250	-	1.5
7060MR3007S4	7.5	-	3000°K - CRI ≥80	400 mm	732	98	150	-	400	-	1.95
7060MR3007S7	7.5	-	3000°K - CRI ≥80	700 mm	732	98	150	-	700	-	2.25
7060MR3007S1	7.5	-	3000°K - CRI ≥80	1000 mm	732	98	150	-	1000	-	2.75
7060MR2707S2	7.5	-	2700°K - CRI ≥80	250 mm	710	95	150	-	250	-	1.5
7060MR2707S4	7.5	-	2700°K - CRI ≥80	400 mm	710	95	150	-	400	-	1.95
7060MR2707S7	7.5	-	2700°K - CRI ≥80	700 mm	710	95	150	-	700	-	2.25
7060MR2707S1	7.5	-	2700°K - CRI ≥80	1000 mm	710	95	150	-	1000	-	2.75
