OLAF/MS

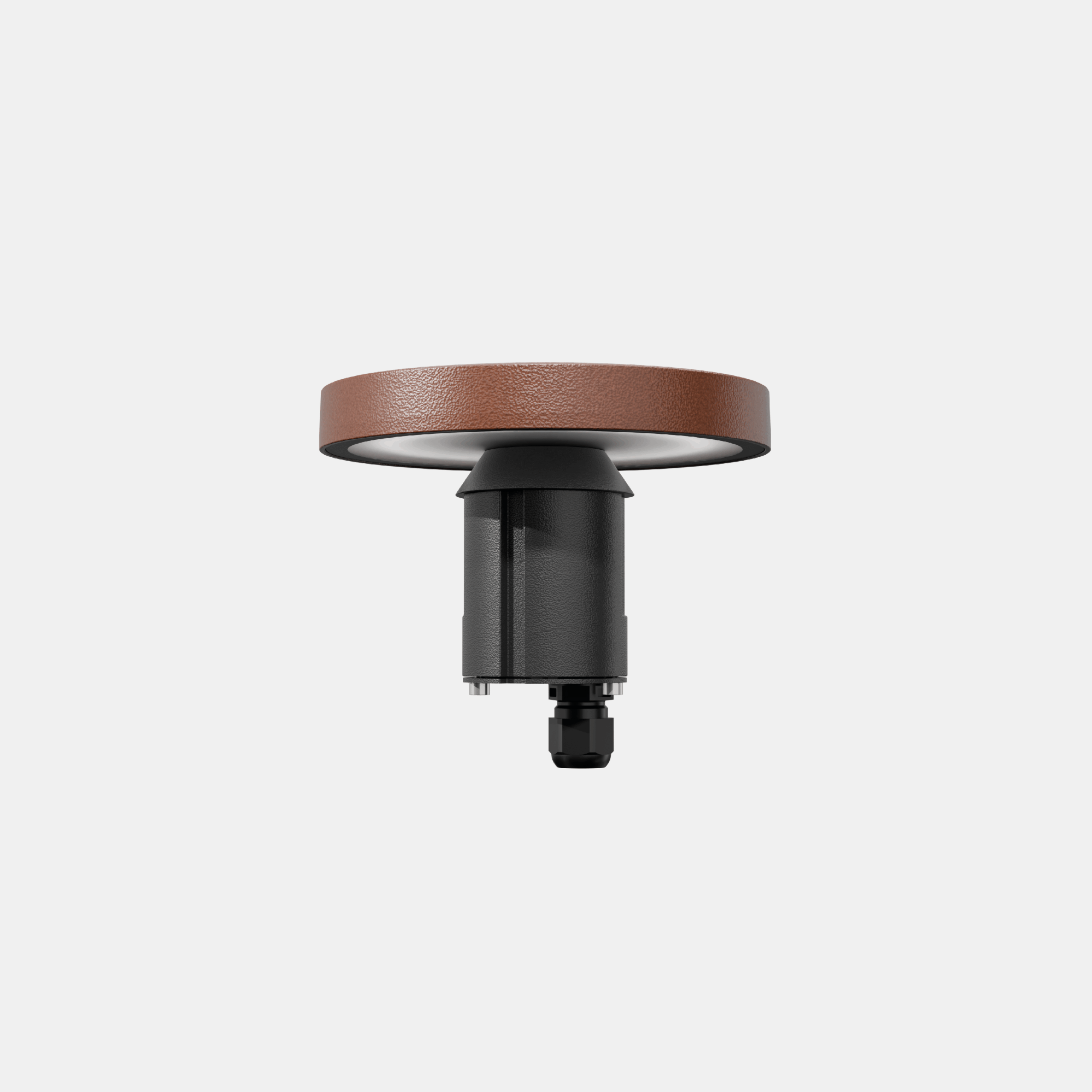

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color corten. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° and 360° light distribution.
Categories: Led, OLAF - 7060, art. 7060 Olaf, Architectural Outdoor, art. 7060 Olaf
Models: 3
Color: Corten
Catalogue abstract

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7060MS27= 2700°K (CRI>80)07CL= kit retrofit
30= 3000°K (CRI>80)
40= 4000°K (CRI>80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7060MS4007CL7.5-4000°K - CRI>80kit retrofit62784150-120-0.75
7060MS3007CL7.5-3000°K - CRI>80kit retrofit59579150-120-0.75
7060MS2707CL7.5-2700°K - CRI>80kit retrofit54773150-120-0.75
