art.-7060-olaf-ms-rs-antracite

OLAF/MS

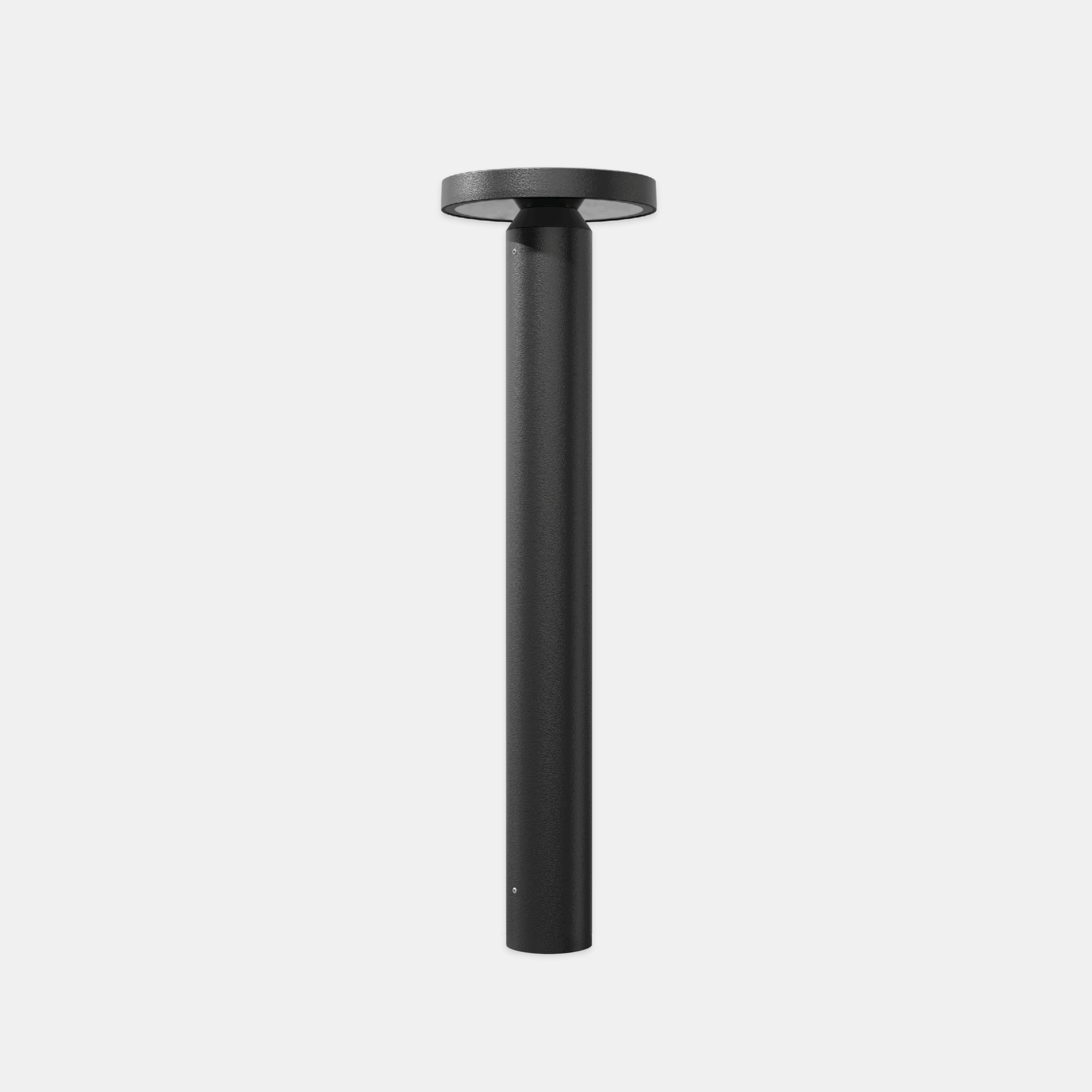

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color anthracite. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° and 360° light distribution.
Categories: Led, OLAF - 7060, art. 7060 Olaf, Architectural Outdoor, art. 7060 Olaf
Models: 12
Color: Anthracite
Catalogue abstract

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7060MS27= 2700°K (CRI>80)07N2= 250mm
30= 3000°K (CRI>80)N4= 400mm
40= 4000°K (CRI>80)N7= 700mm
N1= 1000mm

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7060MS4007N27.5-4000°K - CRI>80250 mm62784150-250-1.5
7060MS4007N47.5-4000°K - CRI>80400 mm62784150-400-1.95
7060MS4007N77.5-4000°K - CRI>80700 mm62784150-700-2.25
7060MS4007N17.5-4000°K - CRI>801000 mm62784150-1000-2.75
7060MS3007N27.5-3000°K - CRI>80250 mm59579150-250-1.5
7060MS3007N47.5-3000°K - CRI>80400 mm59579150-400-1.95
7060MS3007N77.5-3000°K - CRI>80700 mm59579150-700-2.25
7060MS3007N17.5-3000°K - CRI>801000 mm59579150-1000-2.75
7060MS2707N27.5-2700°K - CRI>80250 mm54773150-250-1.5
7060MS2707N47.5-2700°K - CRI>80400 mm54773150-400-1.95
7060MS2707N77.5-2700°K - CRI>80700 mm54773150-700-2.25
7060MS2707N17.5-2700°K - CRI>801000 mm54773150-1000-2.75

Accessories
