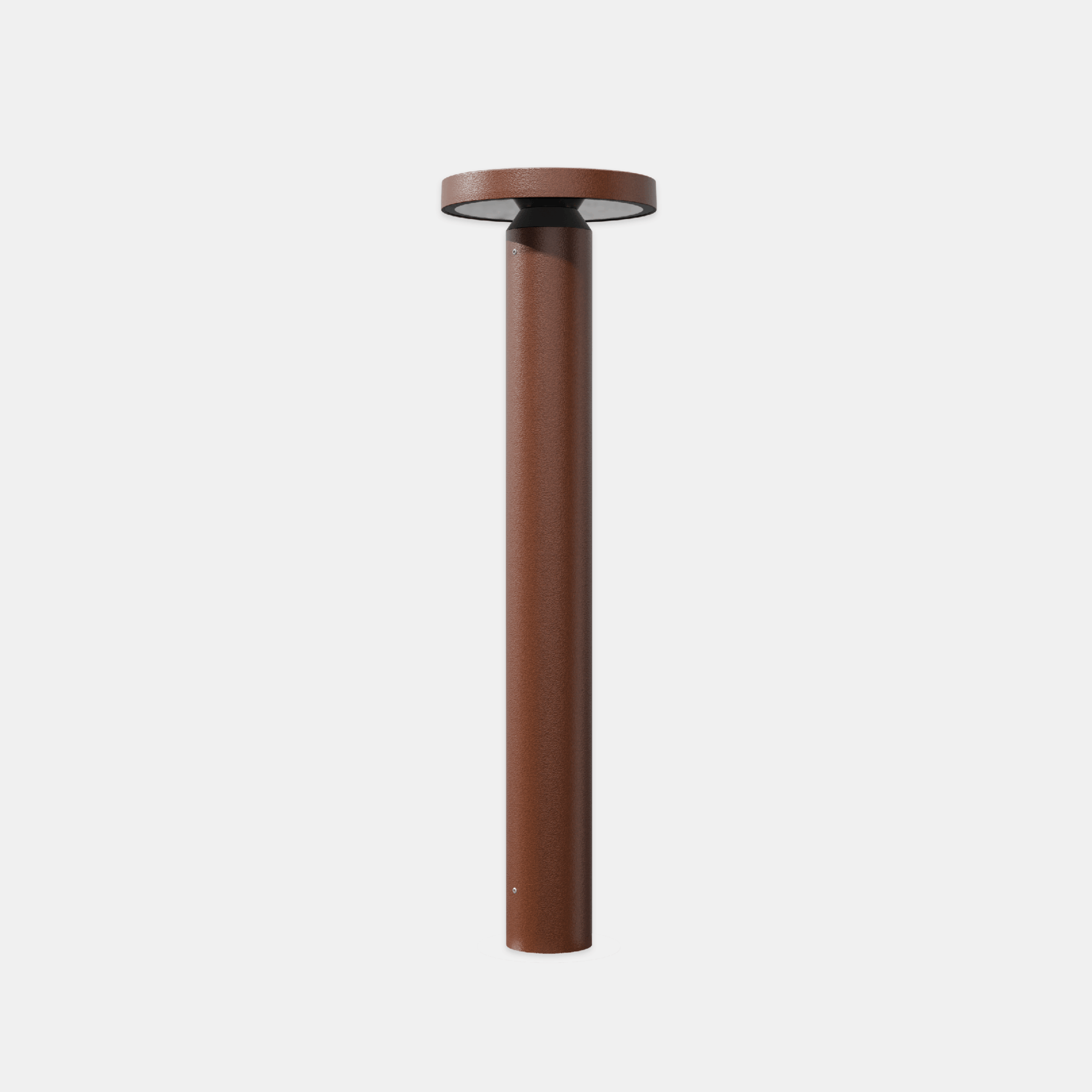

OLAF/RS

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color corten. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° and 360° light distribution.

Categories: Led, OLAF - 7060, art. 7060 Olaf, Architectural Outdoor, art. 7060 Olaf

Models: 24

Color: Corten

Catalogue abstract

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7060	RS	27	= 2700°K (CRI>80)	09	C2	= 250mm
		30	= 3000°K (CRI>80)	13	C4	= 400mm
		40	= 4000°K (CRI>80)		C7	= 700mm
					C1	= 1000mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	A (mm)	B (mm)	C (mm)	D (mm)	Kg
7060RS4009C2	9	-	4000°K - CRI>80	250 mm	745	83	150	-	250	-	1.5
7060RS4013C2	13	-	4000°K - CRI>80	250 mm	1051	81	150	-	250	-	1.5
7060RS4009C4	9	-	4000°K - CRI>80	400 mm	745	83	150	-	400	-	1.95
7060RS4013C4	13	-	4000°K - CRI>80	400 mm	1051	81	150	-	400	-	1.95
7060RS4009C7	9	-	4000°K - CRI>80	700 mm	745	83	150	-	700	-	2.25
7060RS4013C7	13	-	4000°K - CRI>80	700 mm	1051	81	150	-	700	-	2.25
7060RS4009C1	9	-	4000°K - CRI>80	1000 mm	745	83	150	-	1000	-	2.75
7060RS4013C1	13	-	4000°K - CRI>80	1000 mm	1051	81	150	-	1000	-	2.75
7060RS3009C2	9	-	3000°K - CRI>80	250 mm	707	79	150	-	250	-	1.5
7060RS3013C2	13	-	3000°K - CRI>80	250 mm	997	77	150	-	250	-	1.5
7060RS3009C4	9	-	3000°K - CRI>80	400 mm	707	79	150	-	400	-	1.95
7060RS3013C4	13	-	3000°K - CRI>80	400 mm	997	77	150	-	400	-	1.95
7060RS3009C7	9	-	3000°K - CRI>80	700 mm	707	79	150	-	700	-	2.25
7060RS3013C7	13	-	3000°K - CRI>80	700 mm	997	77	150	-	700	-	2.25
7060RS3009C1	9	-	3000°K - CRI>80	1000 mm	707	79	150	-	1000	-	2.75
7060RS3013C1	13	-	3000°K - CRI>80	1000 mm	997	77	150	-	1000	-	2.75
7060RS2709C2	9	-	2700°K - CRI>80	250 mm	650	72	150	-	250	-	1.5
7060RS2713C2	13	-	2700°K - CRI>80	250 mm	916	70	150	-	250	-	1.5
7060RS2709C4	9	-	2700°K - CRI>80	400 mm	650	72	150	-	400	-	1.95
7060RS2713C4	13	-	2700°K - CRI>80	400 mm	916	70	150	-	400	-	1.95
