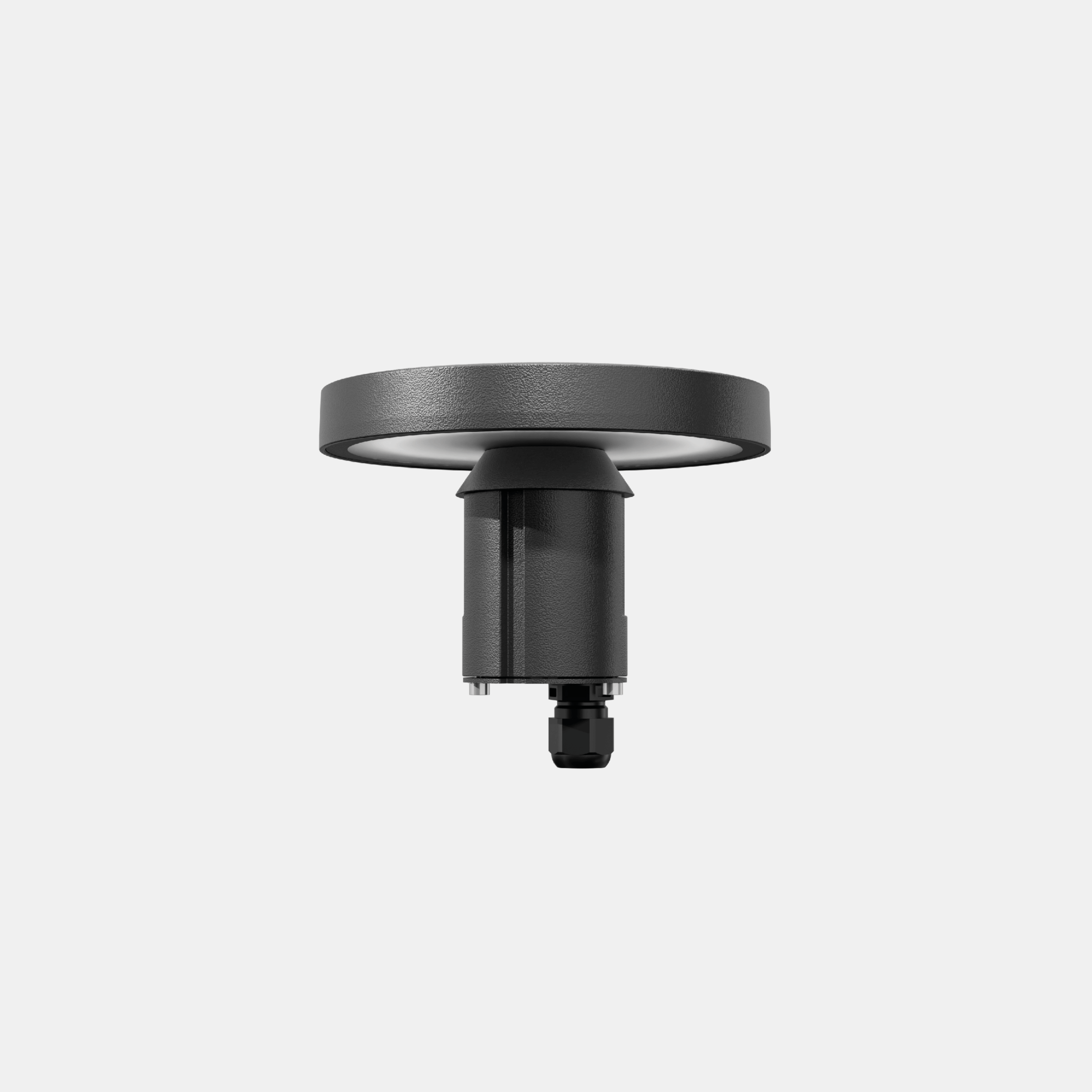

OLAF/RS

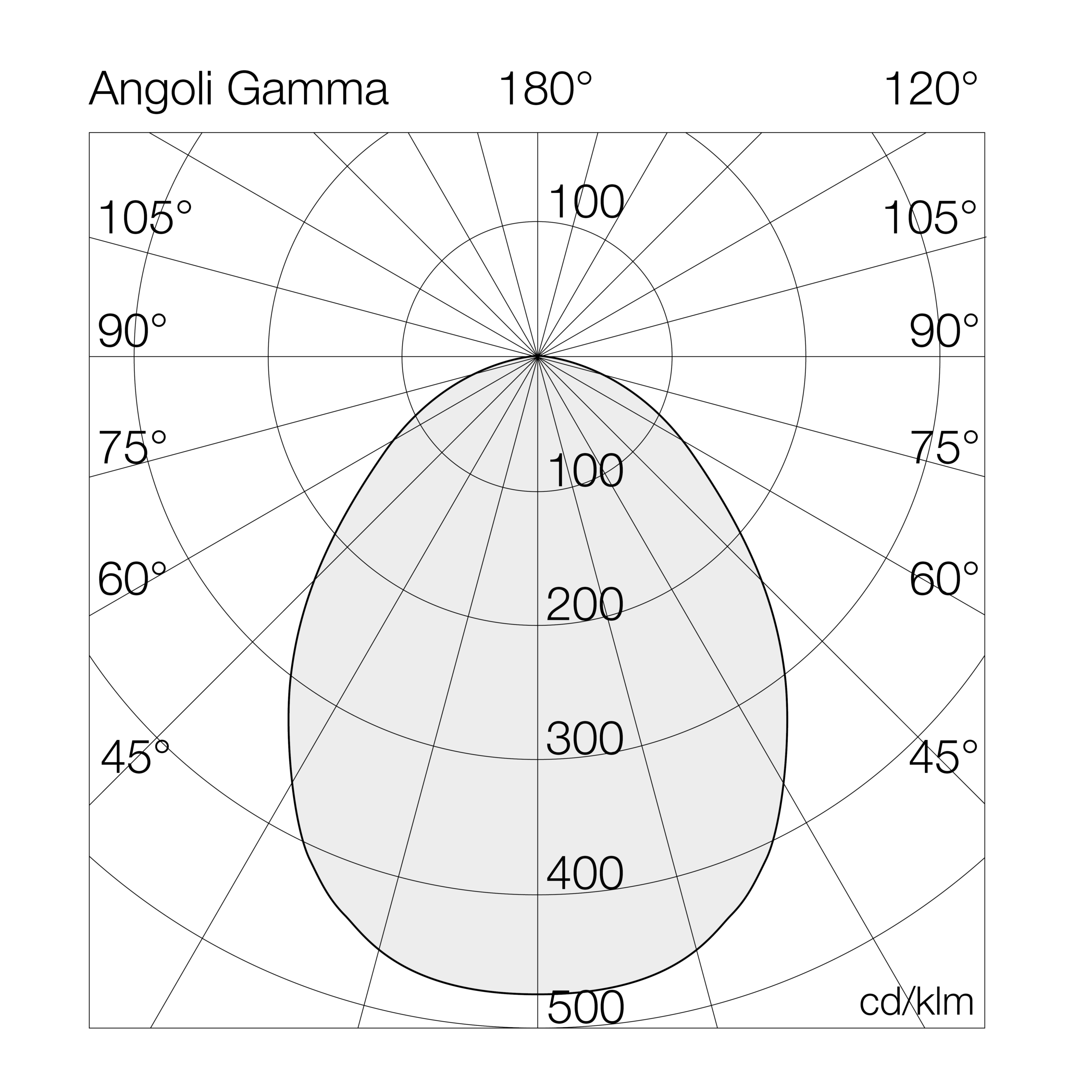

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color anthracite. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° and 360° light distribution.
Categories: Led, OLAF - 7060, art. 7060 Olaf, Architectural Outdoor, art. 7060 Olaf
Models: 6
Color: Anthracite
Catalogue abstract

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7060RS27= 2700°K (CRI>80)09NL= kit retrofit
30= 3000°K (CRI>80)13
40= 4000°K (CRI>80)

Models

W tot.
°K - CRI
Options
CodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WA (mm)B (mm)C (mm)D (mm)Kg
7060RS4009NL9-4000°K - CRI>80kit retrofit74583150-120-0.75
7060RS4013NL13-4000°K - CRI>80kit retrofit105181150-120-0.75
7060RS3009NL9-3000°K - CRI>80kit retrofit70779150-120-0.75
7060RS3013NL13-3000°K - CRI>80kit retrofit99777150-120-0.75
7060RS2709NL9-2700°K - CRI>80kit retrofit65072150-120-0.75
7060RS2713NL13-2700°K - CRI>80kit retrofit91670150-120-0.75
