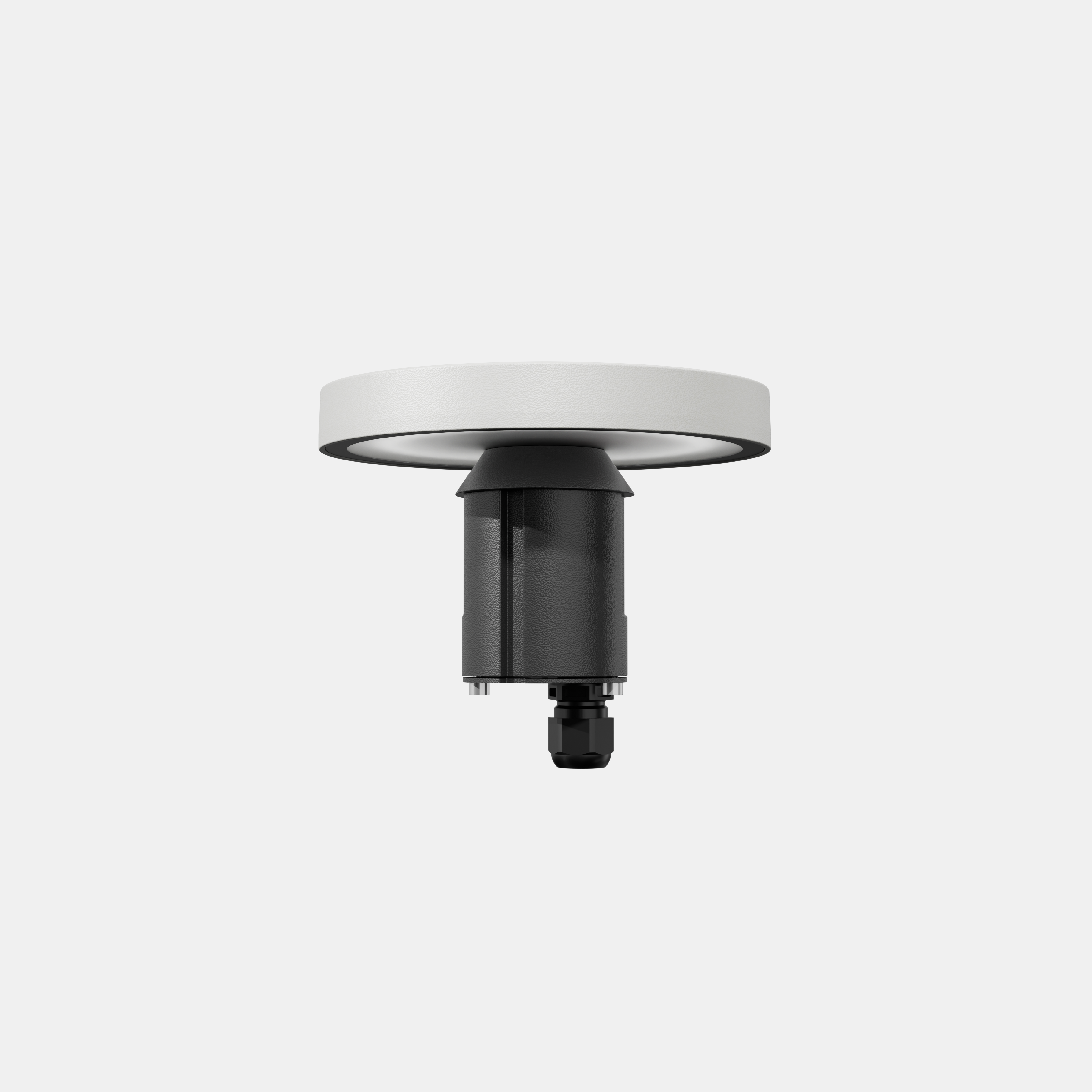

OLAF – Mod. RS

(360° rotosymmetric optics)

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body, painted with anti-corrosion polyester thermosetting powders, color silver. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 180° light distribution.

Categories: Led, OLAF, Architectural Outdoor, OLAF, OLAF

Models: 6

Color: Silver

Catalogue abstract

Installation instructions

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7060	RS	27	= 2700°K (CRI>80)	09	SL	= kit retrofit
		30	= 3000°K (CRI>80)	13
		40	= 4000°K (CRI>80)

Models

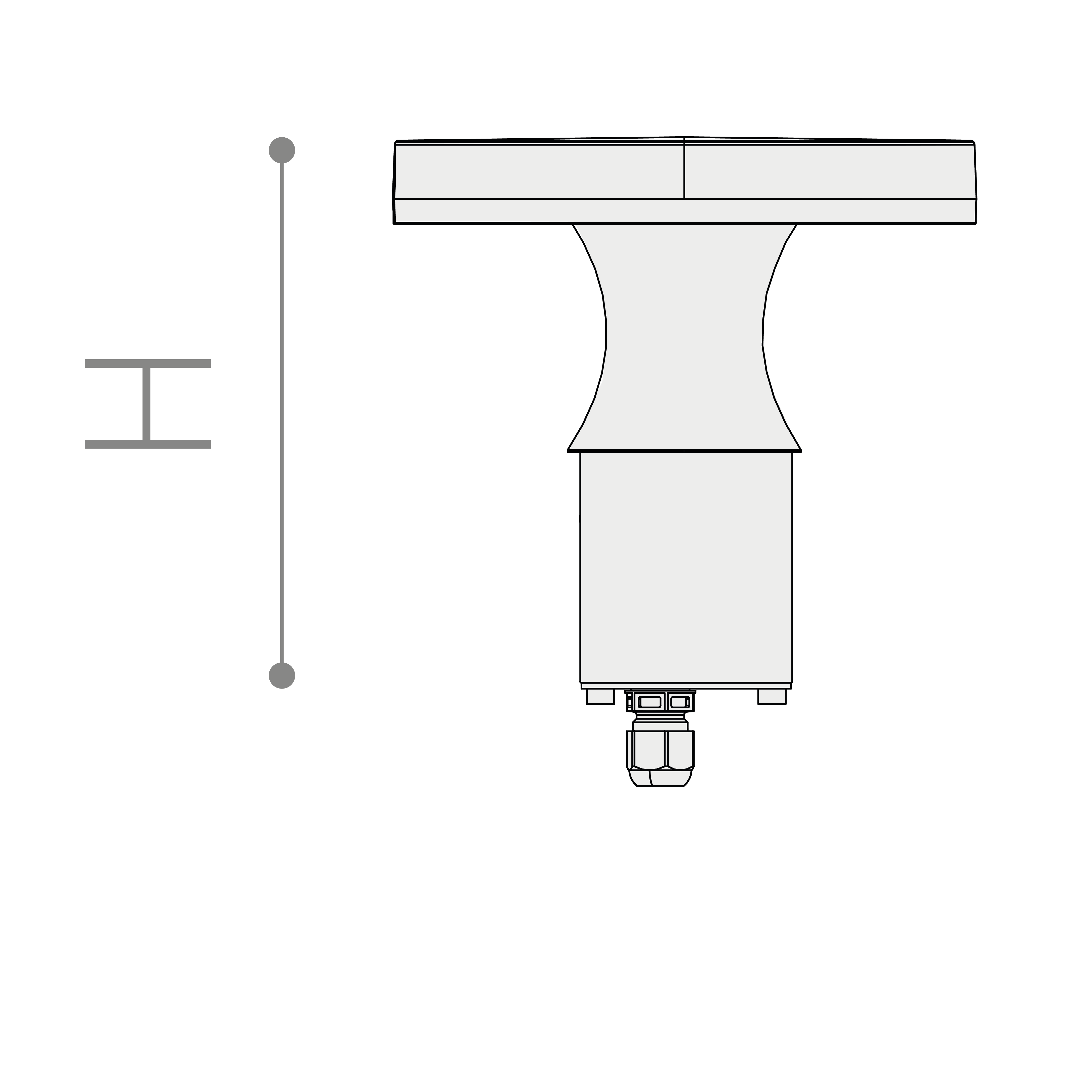

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7060RS4009SL	9	-	4000°K - CRI ≥80	kit retrofit	745	83	150	-	120	-	0.75
7060RS4013SL	13	-	4000°K - CRI ≥80	kit retrofit	1051	81	150	-	120	-	0.75
7060RS3009SL	9	-	3000°K - CRI ≥80	kit retrofit	707	79	150	-	120	-	0.75
7060RS3013SL	13	-	3000°K - CRI ≥80	kit retrofit	997	77	150	-	120	-	0.75
7060RS2709SL	9	-	2700°K - CRI ≥80	kit retrofit	685	72	150	-	120	-	0.75
7060RS2713SL	13	-	2700°K - CRI ≥80	kit retrofit	966	70	150	-	120	-	0.75
