OLAF – Mod. RS

(360° rotosymmetric optics)

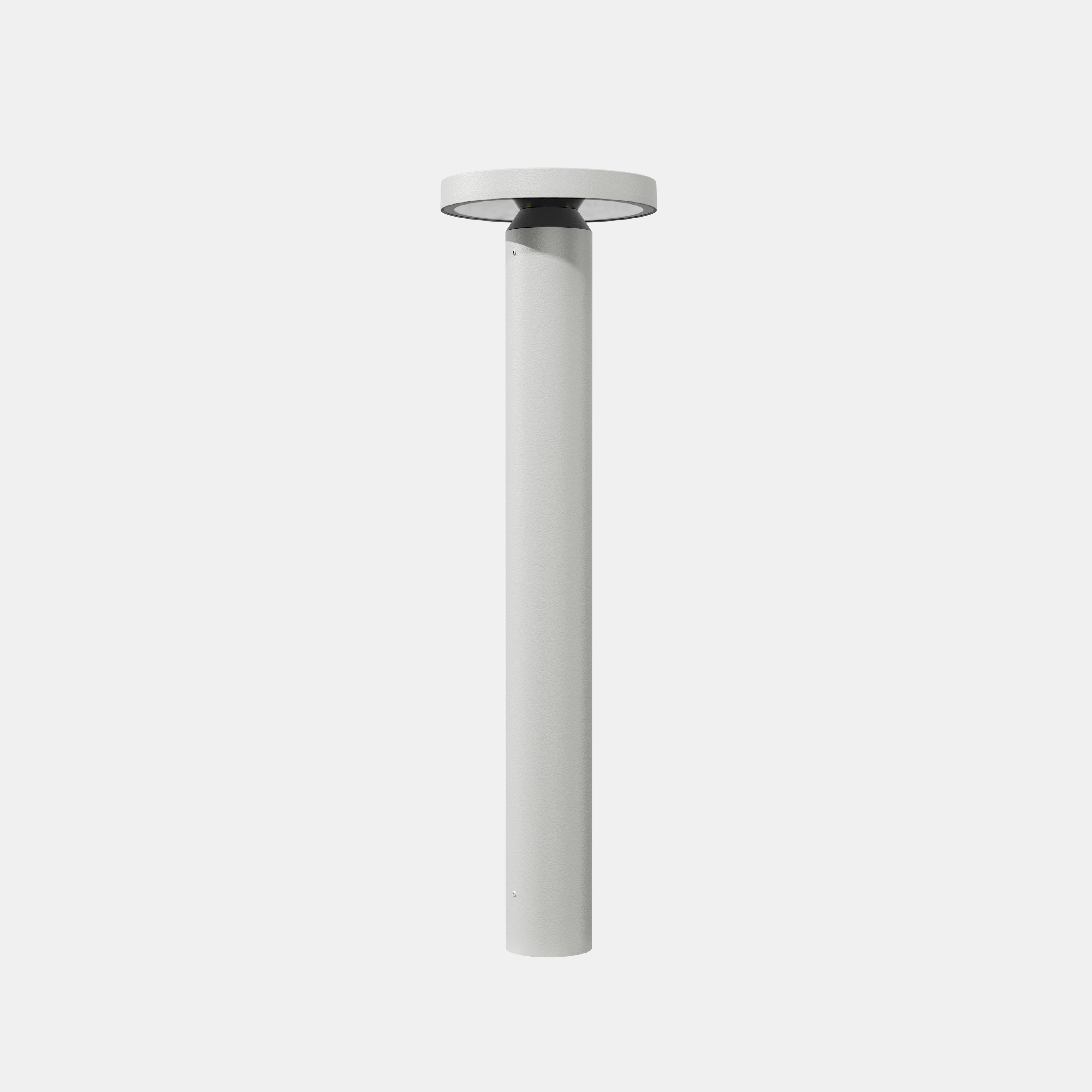

Outdoor led bollard suitable for ground/floor installation for lighting pedestrian paths, driveway areas and green spaces. Anti-corrosion die-cast aluminum pole head body and extruded aluminum pole structure with high resistance to oxidation, painted with anti-corrosion polyester thermosetting powders, color silver. Flat sandblasted tempered glass diffuser 4 mm thick. Rotosymmetrical optics with 360° light distribution.

Categories: Led, OLAF, Architectural Outdoor, OLAF, OLAF

Models: 24

Color: Silver

Catalogue abstract

Installation instructions

Legenda

Art.	Mod.	°K (CRI)		W tot.	Options
7060	RS	27	= 2700°K (CRI>80)	09	S2	= 250mm
		30	= 3000°K (CRI>80)	13	S4	= 400mm
		40	= 4000°K (CRI>80)		S7	= 700mm
					S1	= 1000mm

Models

Codice	W tot.	mA	°K - CRI	Options	Lumen OUTPUT	Lm/W	L (mm)	P (mm)	H (mm)	D (mm)	Kg
7060RS4009S2	9	-	4000°K - CRI ≥80	250 mm	745	83	150	-	250	-	1.5
7060RS4013S2	13	-	4000°K - CRI ≥80	250 mm	1051	81	150	-	250	-	1.5
7060RS4009S4	9	-	4000°K - CRI ≥80	400 mm	745	83	150	-	400	-	1.95
7060RS4013S4	13	-	4000°K - CRI ≥80	400 mm	1051	81	150	-	400	-	1.95
7060RS4009S7	9	-	4000°K - CRI ≥80	700 mm	745	83	150	-	700	-	2.25
7060RS4013S7	13	-	4000°K - CRI ≥80	700 mm	1051	81	150	-	700	-	2.25
7060RS4009S1	9	-	4000°K - CRI ≥80	1000 mm	745	83	150	-	1000	-	2.75
7060RS4013S1	13	-	4000°K - CRI ≥80	1000 mm	1051	81	150	-	1000	-	2.75
7060RS3009S2	9	-	3000°K - CRI ≥80	250 mm	707	79	150	-	250	-	1.5
7060RS3013S2	13	-	3000°K - CRI ≥80	250 mm	997	77	150	-	250	-	1.5
7060RS3009S4	9	-	3000°K - CRI ≥80	400 mm	707	79	150	-	400	-	1.95
7060RS3013S4	13	-	3000°K - CRI ≥80	400 mm	997	77	150	-	400	-	1.95
7060RS3009S7	9	-	3000°K - CRI ≥80	700 mm	707	79	150	-	700	-	2.25
7060RS3013S7	13	-	3000°K - CRI ≥80	700 mm	997	77	150	-	700	-	2.25
7060RS3009S1	9	-	3000°K - CRI ≥80	1000 mm	707	79	150	-	1000	-	2.75
7060RS3013S1	13	-	3000°K - CRI ≥80	1000 mm	997	77	150	-	1000	-	2.75
7060RS2709S2	9	-	2700°K - CRI ≥80	250 mm	685	72	150	-	250	-	1.5
7060RS2713S2	13	-	2700°K - CRI ≥80	250 mm	966	70	150	-	250	-	1.5
7060RS2709S4	9	-	2700°K - CRI ≥80	400 mm	685	72	150	-	400	-	1.95
7060RS2713S4	13	-	2700°K - CRI ≥80	400 mm	966	70	150	-	400	-	1.95
