MAGIC – Mod. AR

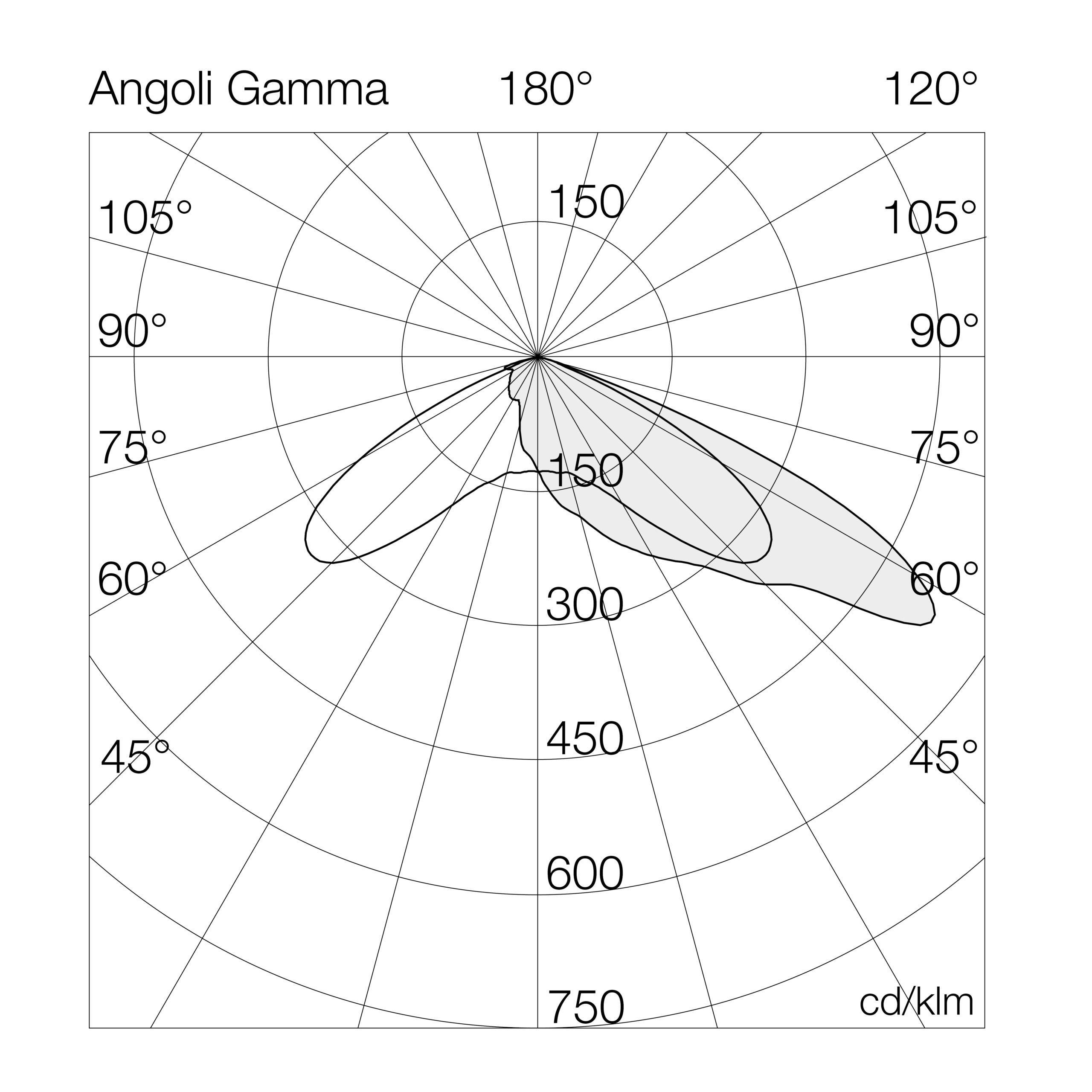

(65° asymmetrical wide beam optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Asymmetrical 65° wide-beam optics.
Categories: Led, MAGIC - 7101, Floodlights, MAGIC
Models: 126
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7101AR4= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= input 400Vac
380GX= 1-10v + dmx
410MG= virtual midnight
450
480

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7101AR4300GL300-4000°K - CRI>70on/off45845156612163309-10.5
7101AR4320GL320-4000°K - CRI>70on/off47681152612163309-10.5
7101AR4340GL340-4000°K - CRI>70on/off52591157612163309-10.5
7101AR4380GL380-4000°K - CRI>70on/off57306154612163309-10.5
7101AR4410GL410-4000°K - CRI>70on/off61854154612163309-10.5
7101AR4450GL450-4000°K - CRI>70on/off66229150612163309-10.5
7101AR4480GL480-4000°K - CRI>70on/off68353145612163309-10.5
7101AR4300GM300-4000°K - CRI>701-10v45845156612163309-10.5
7101AR4320GM320-4000°K - CRI>701-10v47681152612163309-10.5
7101AR4340GM340-4000°K - CRI>701-10v52591157612163309-10.5
7101AR4380GM380-4000°K - CRI>701-10v57306154612163309-10.5
7101AR4410GM410-4000°K - CRI>701-10v61854154612163309-10.5
7101AR4450GM450-4000°K - CRI>701-10v66229150612163309-10.5
7101AR4480GM480-4000°K - CRI>701-10v68353145612163309-10.5
7101AR4300GD300-4000°K - CRI>70dali45845156612163309-10.5
7101AR4320GD320-4000°K - CRI>70dali47681152612163309-10.5
7101AR4340GD340-4000°K - CRI>70dali52591157612163309-10.5
7101AR4380GD380-4000°K - CRI>70dali57306154612163309-10.5
7101AR4410GD410-4000°K - CRI>70dali61854154612163309-10.5
7101AR4450GD450-4000°K - CRI>70dali66229150612163309-10.5

Accessories
