MAGIC – Mod. MR

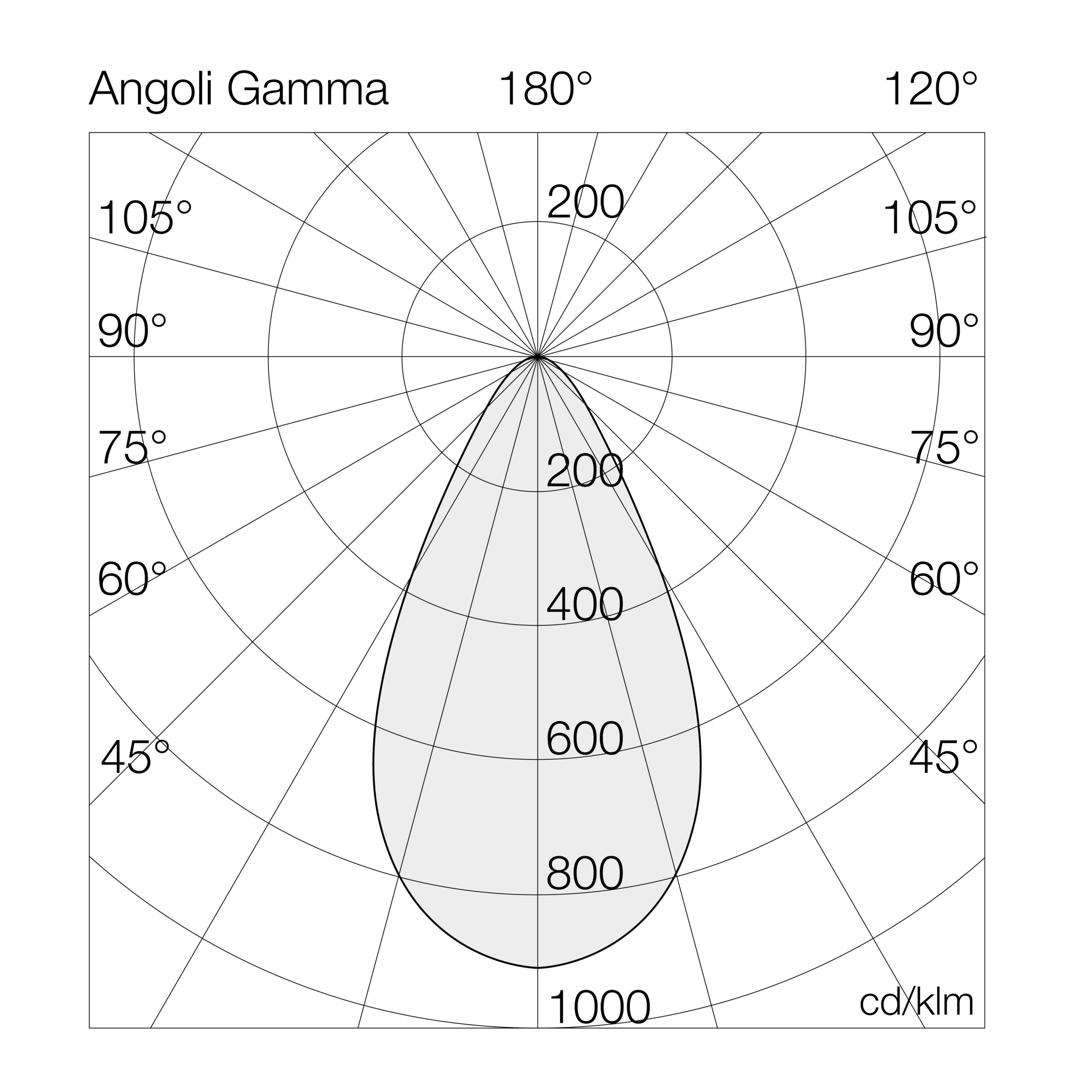

(56° symmetrical optics)

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. 56° symmetrical optics.
Categories: Led, MAGIC - 7101, Floodlights, MAGIC
Models: 126
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options
7101MR4= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= input 400Vac
380GX= 1-10v + dmx
410MG= virtual midnight
450
480

Models

W tot.
°K - CRI
Options
DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7101MR4300GL300-4000°K - CRI>70on/off45323154612163309-10.5
7101MR4320GL320-4000°K - CRI>70on/off47138150612163309-10.5
7101MR4340GL340-4000°K - CRI>70on/off51992156612163309-10.5
7101MR4380GL380-4000°K - CRI>70on/off56654152612163309-10.5
7101MR4410GL410-4000°K - CRI>70on/off61149152612163309-10.5
7101MR4450GL450-4000°K - CRI>70on/off65476148612163309-10.5
7101MR4480GL480-4000°K - CRI>70on/off67574143612163309-10.5
7101MR4300GM300-4000°K - CRI>701-10v45323154612163309-10.5
7101MR4320GM320-4000°K - CRI>701-10v47138150612163309-10.5
7101MR4340GM340-4000°K - CRI>701-10v51992156612163309-10.5
7101MR4380GM380-4000°K - CRI>701-10v56654152612163309-10.5
7101MR4410GM410-4000°K - CRI>701-10v61149152612163309-10.5
7101MR4450GM450-4000°K - CRI>701-10v65476148612163309-10.5
7101MR4480GM480-4000°K - CRI>701-10v67574143612163309-10.5
7101MR4300GD300-4000°K - CRI>70dali45323154612163309-10.5
7101MR4320GD320-4000°K - CRI>70dali47138150612163309-10.5
7101MR4340GD340-4000°K - CRI>70dali51992156612163309-10.5
7101MR4380GD380-4000°K - CRI>70dali56654152612163309-10.5
7101MR4410GD410-4000°K - CRI>70dali61149152612163309-10.5
7101MR4450GD450-4000°K - CRI>70dali65476148612163309-10.5
