MAGIC – Mod. RR

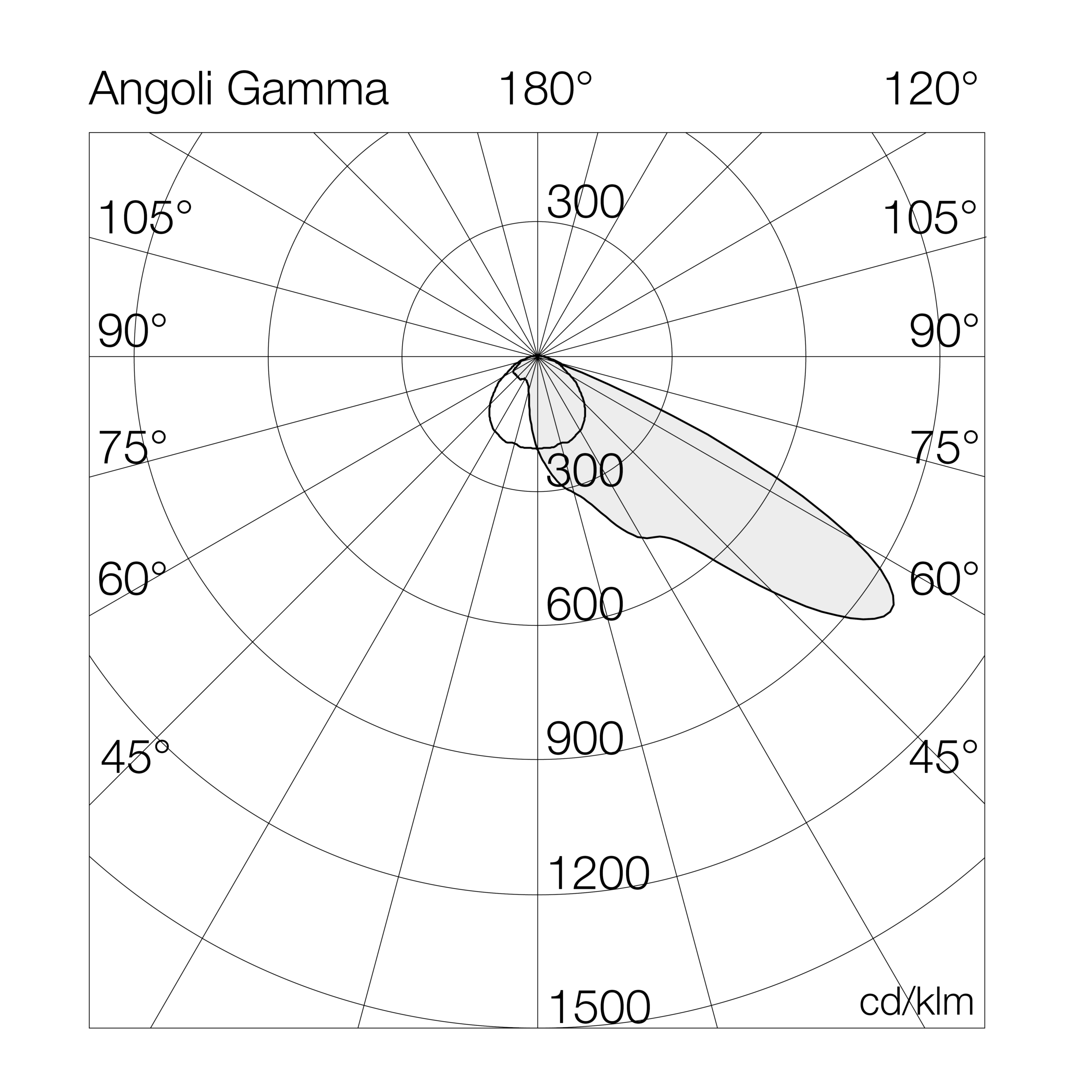

(65° asymmetric narrow beam optics)

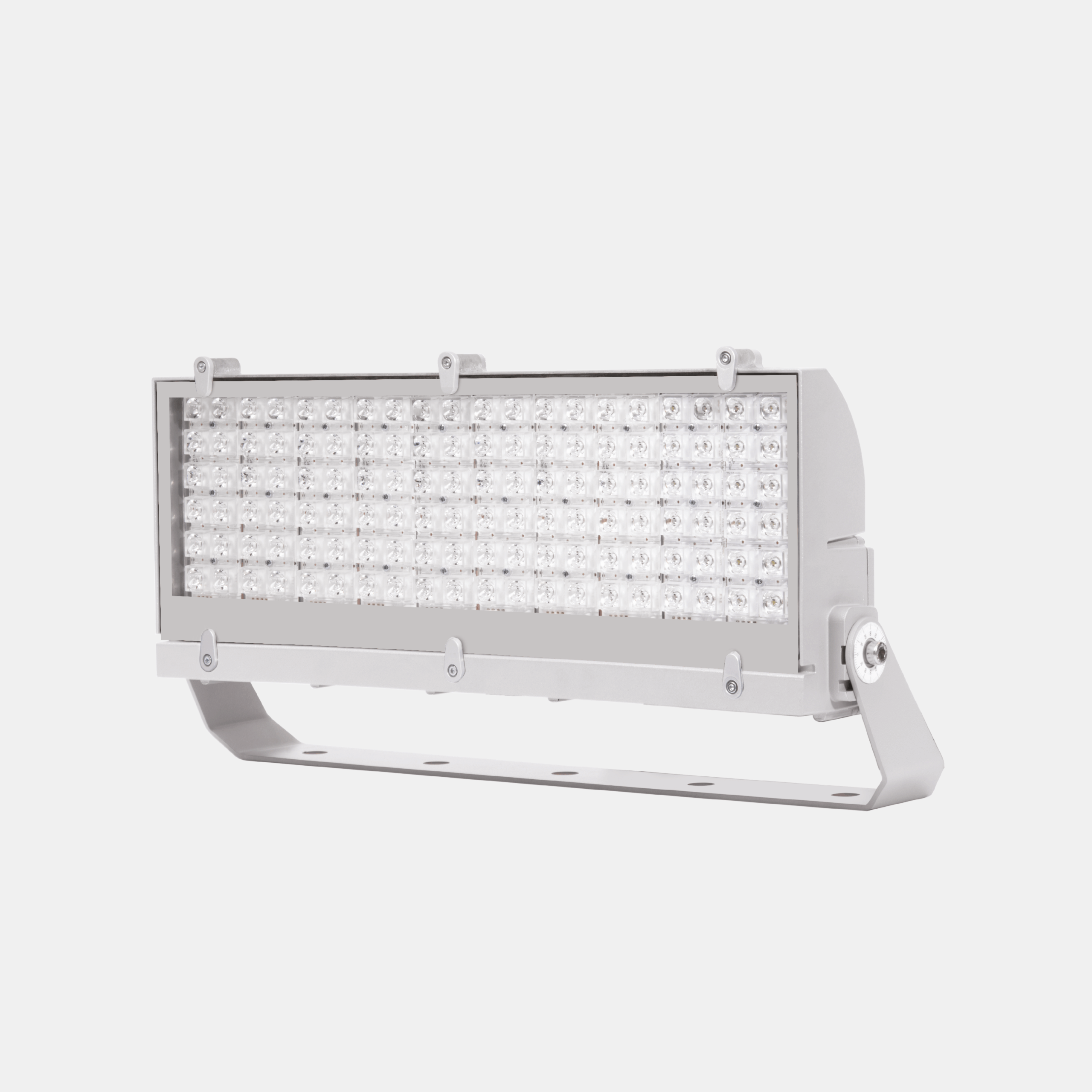

Indoor and outdoor LED projector for lighting large areas and sports facilities, can be installed on the ground, wall or light towers. Die-cast aluminum body painted with anti-corrosion polyester thermosetting powder coating silver color. Extra-clear tempered flat glass diffuser 4 mm thick, silicone gasket. Asymmetrical 65° narrow-beam optics.
Categories: Led, MAGIC - 7101, Floodlights, MAGIC
Models: 126
Color: Silver
Catalogue abstract
Installation instructions

Legenda

Art.+Mod.+°K (CRI)+W tot.+Options

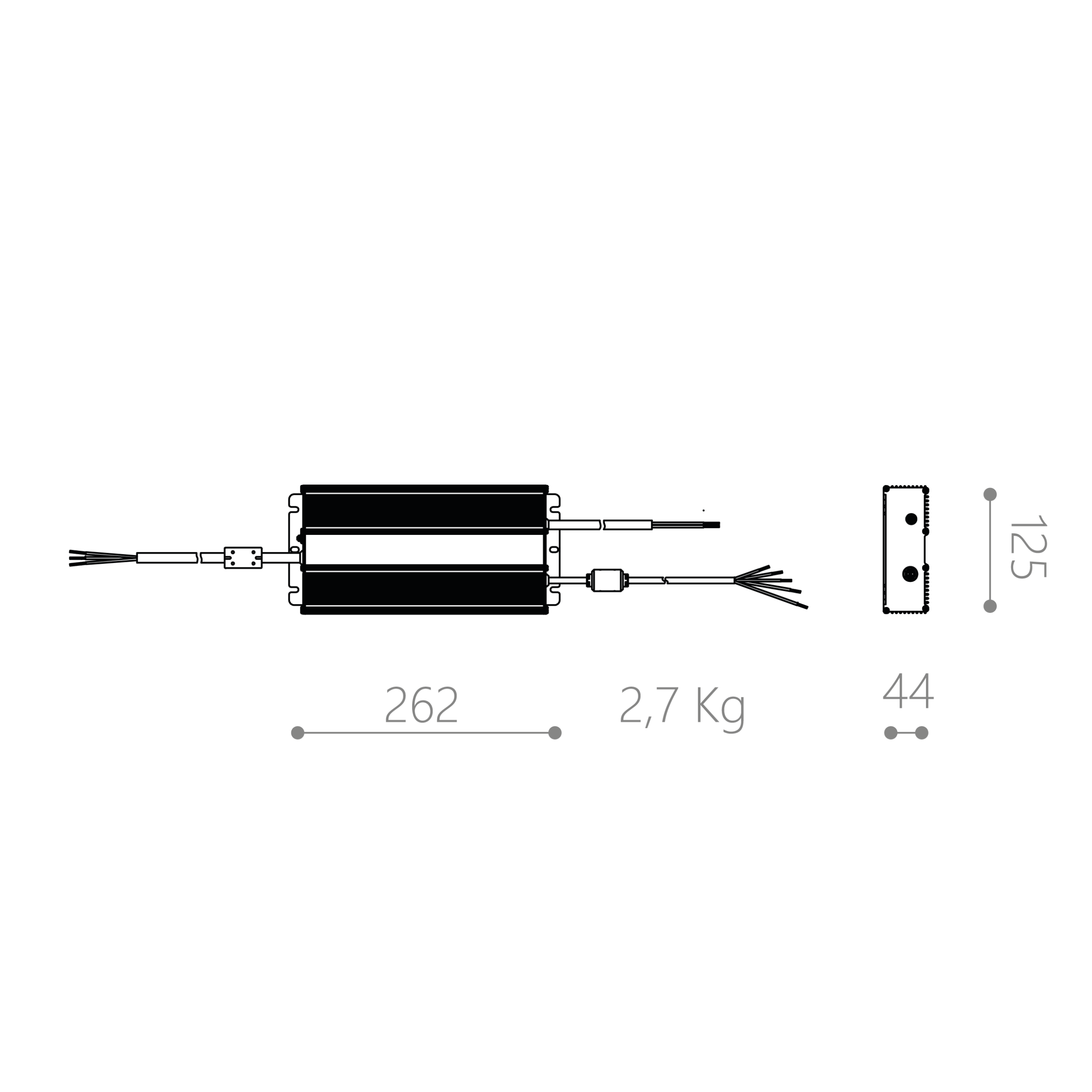

7101RR4= 4000°K (CRI >70)300GL= on/off / 1-10v (remote driver)
7= 5700°K (CRI >70)320GD= dali (converter)
R= 5700°K (CRI >90)340G4= input 400Vac
380GX= 1-10v + dmx
410MG= virtual midnight
450
480

Models

W tot.
°K - CRI
Options

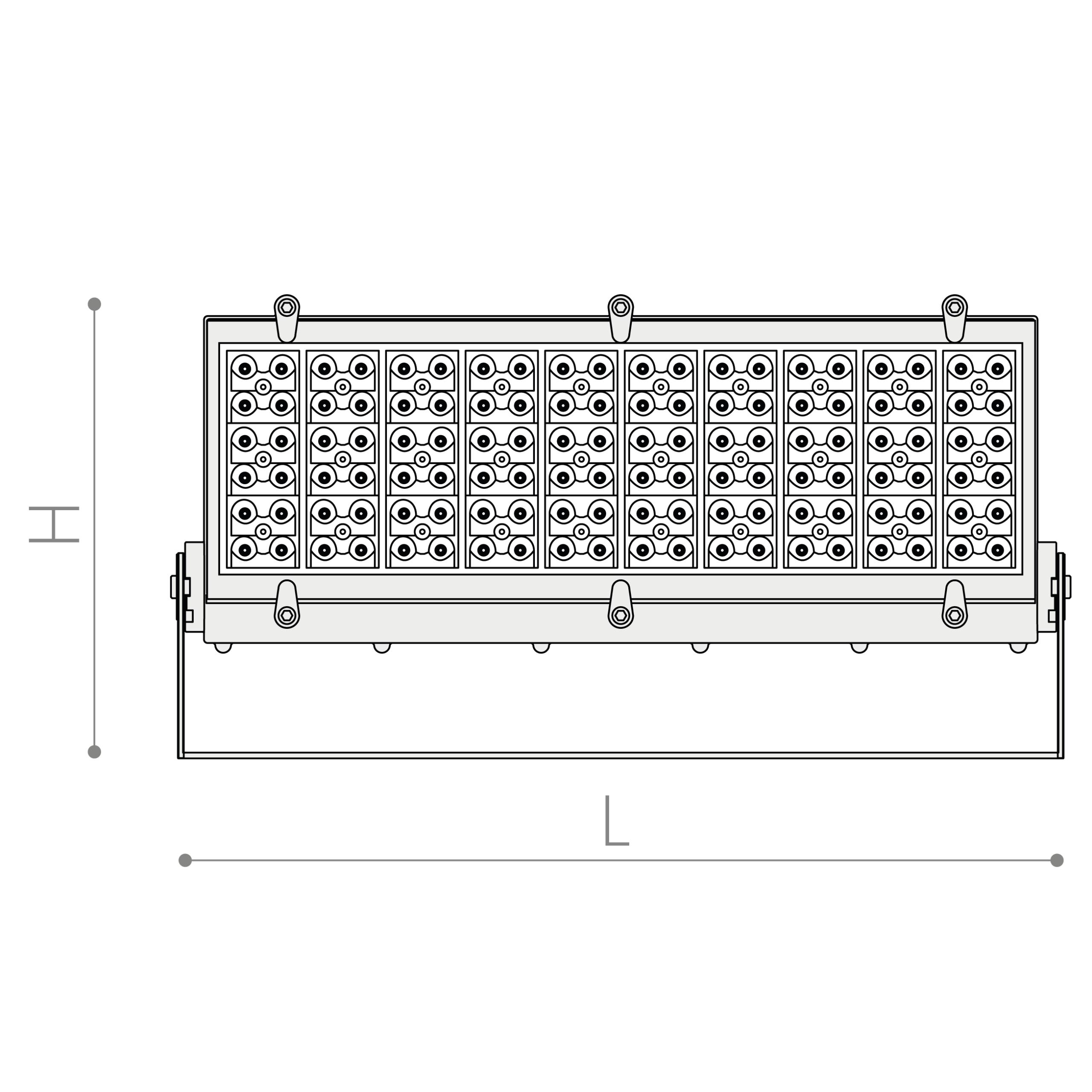

DownloadCodiceW tot.mA°K - CRIOptionsLumen OUTPUTLm/WL (mm)P (mm)H (mm)D (mm)Kg
7101RR4300GL300-4000°K - CRI>70on/off45598155612163309-10.5
7101RR4320GL320-4000°K - CRI>70on/off47424151612163309-10.5
7101RR4340GL340-4000°K - CRI>70on/off52307157612163309-10.5
7101RR4380GL380-4000°K - CRI>70on/off56997153612163309-10.5
7101RR4410GL410-4000°K - CRI>70on/off61520153612163309-10.5
7101RR4450GL450-4000°K - CRI>70on/off65872149612163309-10.5
7101RR4480GL480-4000°K - CRI>70on/off67984144612163309-10.5
7101RR4300GM300-4000°K - CRI>701-10v45598155612163309-10.5
7101RR4320GM320-4000°K - CRI>701-10v47424151612163309-10.5
7101RR4340GM340-4000°K - CRI>701-10v52307157612163309-10.5
7101RR4380GM380-4000°K - CRI>701-10v56997153612163309-10.5
7101RR4410GM410-4000°K - CRI>701-10v61520153612163309-10.5
7101RR4450GM450-4000°K - CRI>701-10v65872149612163309-10.5
7101RR4480GM480-4000°K - CRI>701-10v67984144612163309-10.5
7101RR4300GD300-4000°K - CRI>70dali45598155612163309-10.5
7101RR4320GD320-4000°K - CRI>70dali47424151612163309-10.5
7101RR4340GD340-4000°K - CRI>70dali52307157612163309-10.5
7101RR4380GD380-4000°K - CRI>70dali56997153612163309-10.5
7101RR4410GD410-4000°K - CRI>70dali61520153612163309-10.5
7101RR4450GD450-4000°K - CRI>70dali65872149612163309-10.5

Accessories
